IS230STCIH6A DIN导轨接触端子板 印刷电路板

【产品详情】

IS200STCIH6A是用于阿格Mark VI系列涡轮机控制系统的DIN导轨接触端子板。

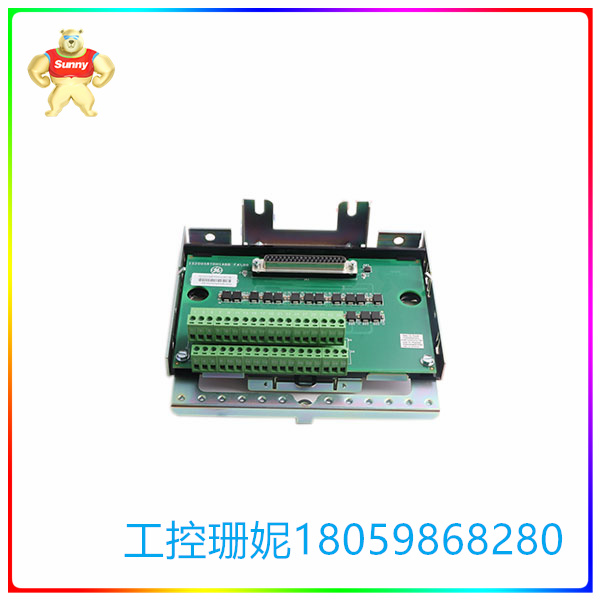

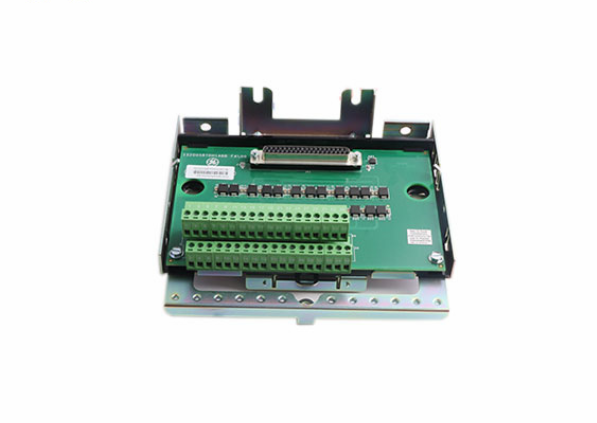

IS200STCIH6A是一个印刷电路板(PCB ),有许多不同的元件。主板的左右两侧有两个镍大小的工厂钻孔。电路板的左下角和右下角还有两个工厂钻孔的加固端子孔。底部孔旁边是两个带数字标签的端子板。上面一组被标记为1-51，只有奇数，而下面一组被标记为2-52，所有偶数。在电路板的顶部中央边缘有一个RS-232 37引脚母端口。该主板的部件号标签位于主板的右下角，在角落和工厂大钻孔之间。在电路板左侧顶部端子板的正上方有一个白色的3引脚跳线。该PCB还包含2个晶体管、91个电阻、27个二极管和24个电容。

IS200STCIH6A是PCB，应小心处理。应实施防静电程序，以防止因静电积聚和释放而对电路板造成任何类型的损坏。在安装之前，主板应放在防静电的袋子或盒子中。安装IS200STCIH6A时，应佩戴防静电腕带。为了有助于安装，建议记下要更换的旧电路板上的布线和电缆位置。

IS230STCIH6A DIN导轨接触端子板 印刷电路板

【英文介绍】

The IS200STCIH6A is a DIN rail contact terminal board for Agmark VI series turbine control systems.

The IS200STCIH6A is a printed circuit board (PCB) with many different components. There are two nickel-sized factory drill holes on the left and right sides of the motherboard. There are also two factory drilled reinforced terminal holes in the lower left and right corners of the board. Next to the bottom holes are two terminal boards with digital labels. The upper group is labeled 1-51 with only odd numbers, while the lower group is labeled 2-52 with all even numbers. There is an RS-232 37 pin female port on the top central edge of the board. The motherboard's part number label is located in the lower right corner of the motherboard, between the corner and the large factory drill hole. There is a white 3-pin jumper just above the top terminal board on the left side of the board. The PCB also contains 2 transistors, 91 resistors, 27 diodes and 24 capacitors.

IS200STCIH6A is a PCB and should be handled with care. Anti-static procedures should be implemented to prevent any type of damage to the board due to the build-up and release of static electricity. Before installation, the motherboard should be placed in an anti-static bag or box. When installing the IS200STCIH6A, wear an ESD wrist strap. To help with installation, it is recommended to note down the wiring and cable locations on the old board to be replaced.

IS230STCIH6A DIN导轨接触端子板 印刷电路板
