IS200STCIH6A
IS200STCIH6A

IS200STCIH6A DIN导轨触点端子板 印刷电路板

IS200STCIH6ADIN导轨触点端子板印刷电路板【产品详情】该IS200STCIH6A是用于GEMarkVI系列涡轮机控制系统的DIN导轨触点端子板。IS

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

IS200STCIH6A DIN导轨触点端子板 印刷电路板

IS200STCIH6A .jpg



【产品详情】



该IS200STCIH6A是用于GE Mark VI系列涡轮机控制系统的DIN导轨触点端子板。

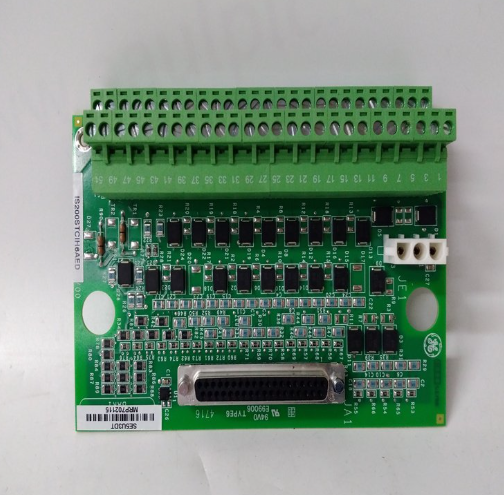

IS200STCIH6A是具有许多不同组件的印刷电路板 (PCB)。电路板的左右两侧有两个大的镍大小的工厂钻孔。在电路板的左下角和右下角还有两个工厂钻孔的加固端子孔。底部孔旁边是两个带有数字标记的端子排。顶部集标记为 1-51,只有奇数,而底部集标记为 2-52,包含所有偶数。电路板顶部中心边缘有一个 RS-232 37 针母端口。该板的部件号标签位于板的右下角和工厂钻孔之间的角落。在电路板左侧的顶部端子排上方有一个白色 3 针跳线。该 PCB 还包含 2 个晶体管、91 个电阻器、27 个二极管和 24 个电容器。


IS200STCIH6A是PCB,应小心处理。应实施防静电程序,以防止由于静电的积聚和释放而对电路板造成任何类型的损坏。电路板应保存在防静电袋或盒子中,直到可以安装为止。安装IS200STCIH6A时,应佩戴防静电腕带。为了帮助安装,建议记下要更换的旧板上的接线和电缆位置。






IS200STCIH6A DIN导轨触点端子板 印刷电路板

IS200STCIH6A .jpg


英文介绍





The IS200STCIH6A is a DIN rail contact terminal board for GE Mark VI series turbine control systems.


The IS200STCIH6A is a printed circuit board (PCB) with many different components. On the left and right sides of the board are two large nickel-sized factory holes. There are also two factory drilled reinforcement terminal holes in the lower left and right corners of the board. Next to the bottom hole are two terminal blocks with numerical markings. The top set is labeled 1-51, with only odd numbers, while the bottom set is labeled 2-52, with all even numbers. There is an RS-232 37-pin female port on the top center edge of the board. The board's part number label is located in the corner between the lower right corner of the board and the factory borehole. There is a white 3-pin jumper above the top terminal block on the left side of the board. The PCB also contains 2 transistors, 91 resistors, 27 diodes and 24 capacitors.


IS200STCIH6A is a PCB and should be handled with care. Anti-static procedures should be implemented to prevent any type of damage to the board due to the build-up and release of static electricity. The circuit board should be kept in an anti-static bag or box until it can be installed. When installing the IS200STCIH6A, wear an ESD wrist strap. To help with installation, it is recommended to note down the wiring and cable locations on the old board to be replaced.
