IS200STTCH2A  热电偶端子卡 三重冗余或单工系统

【产品详情】

产品描述

IS200STTCH2A是DIN导轨安装的热电偶端子卡。 由于能够将系统构建为三重冗余或单工系统，因此IS200STTCH2A特别灵活。

IS200STTCH2A采用DIN导轨安装。DIN导轨是一种标准类型的机械支撑安装，有时允许机箱接地连接。该板的中心由电容器、电阻器和铁氧体磁珠组成，通常用作高频噪声抑制器件。

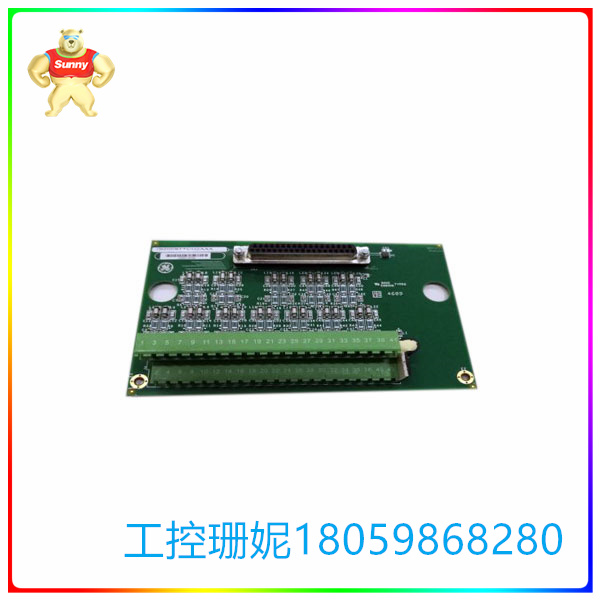

IS200STTCH2A的长边由电路板的两个最大组件填充。一侧是 48 位端子排。带材分为两条线，每行 24 个螺钉连接。端子排允许快速轻松地将电线连接或端接到电路板上。电路板的另一侧在其中心放置了一个电缆连接器。这是一款母头，37 位直流连接器。在一侧，电路板唯一的集成电路 （U1） 放置在电路板表面。该板有几个用于识别目的的代码，包括 6BA00 和 94V-0。有关主板机架位置、处理程序和组件描述的更多信息，请参阅制造商的用户指南或手册。

IS200STTCH2A  热电偶端子卡 三重冗余或单工系统

【英文介绍】

Product description

The IS200STTCH2A is a DIN rail mounted thermocouple terminal card. The IS200STTCH2A is particularly flexible due to its ability to build the system as triple redundant or simplex.

IS200STTCH2A is mounted with DIN rail. DIN rail is a standard type of mechanical support mount that sometimes allows the case to be grounded. The center of the plate is composed of a capacitor, a resistor and a ferrite magnetic bead, which is usually used as a high-frequency noise suppression device.

The long sides of the IS200STTCH2A are filled by the two largest components of the board. On one side is a 48-bit terminal block. The strip is divided into two lines, each with 24 screws. The terminal block allows for quick and easy wiring or termination to the circuit board. The other side of the board places a cable connector in its center. This is a female, 37-bit DC connector. On one side, the board's unique integrated circuit (U1) is placed on the board surface. The board has several codes for identification purposes, including 6BA00 and 94V-0. For more information about motherboard rack locations, handlers, and component descriptions, see the manufacturer's user guide or manual.
