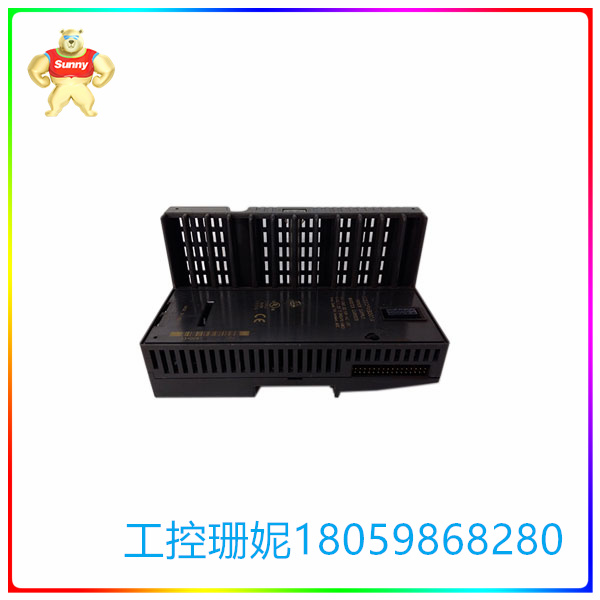

IC200PWB001A  电源升压托架用于安装额外的电源

【产品详情】

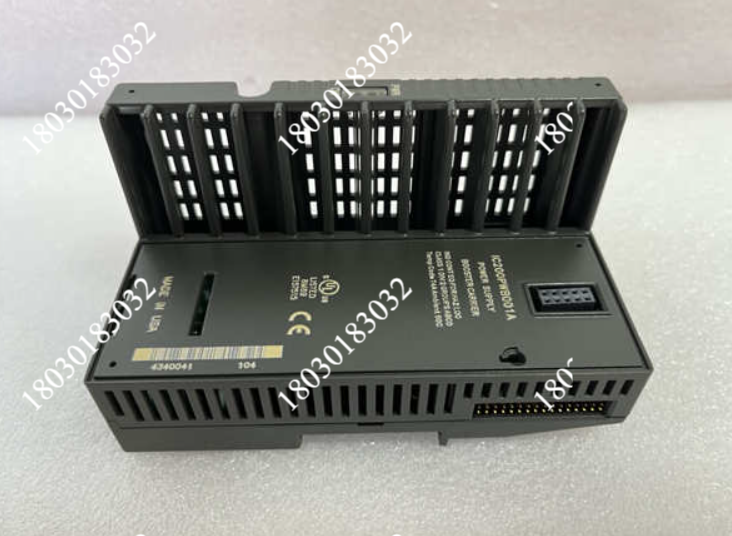

GE Fanuc IC200PWB001 电源升压托架用于安装额外的电源，与系统中的其他模块托架串联。安装在升压器托架上的电源为位于设备右侧或向上的每个 I/O 模块供电，直到同一系统中的下一个升压电源。NIU 或 CPU 上的直流或交流电源以及升压器载体中存在的电源都应使用等效的外部电源。GE Fanuc IC200PWB001 电源增压器载体有 2 个 LED，分别是显示所连接升压

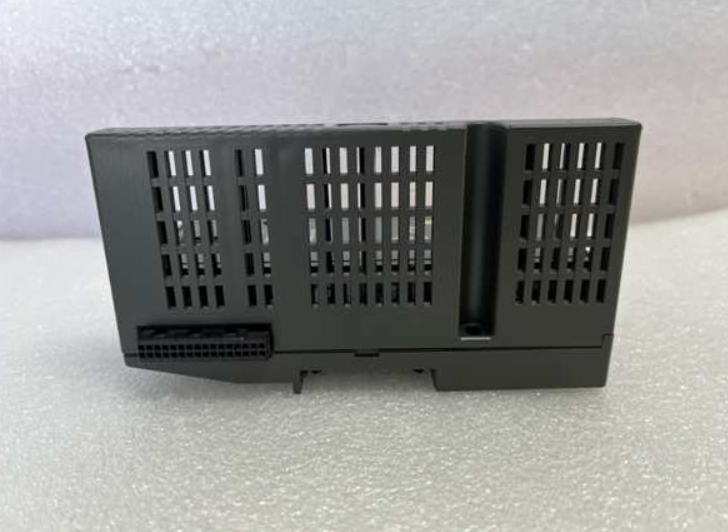

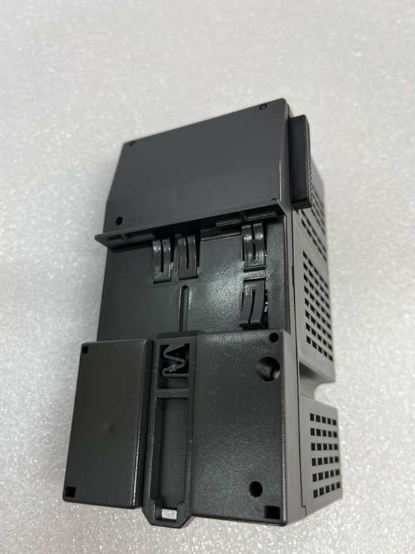

GE Fanuc IC200PWB001 电源增压托架应适当安装在 7.5 毫米 x 35 毫米的 DIN 导轨上。为确保DIN导轨提供EMC保护，应将其电气接地，表面应为导电耐腐蚀表面处理。为了提供抗机械冲击和抗振动性，IC200PWB001 电源增压托架应安装在面板上。电源升压器的尺寸为 66.8 毫米（2.63 英寸）x 133.4 毫米（5.25 英寸）x 70 毫米（2.75 英寸）。卸下 IC200PWB001 电源增压架时，用户需要通过卸下用于连接它的螺钉将其从 DIN 导轨上卸下。如果增压器托架安装在其他托架单元之间，用户将需要将其卸下，因为配套连接器位于侧面。为了正确拆卸增压托架，用户需要向外拉动 DIN 导轨闩锁片并将其倾斜。

IC200PWB001A  电源升压托架用于安装额外的电源

【英文介绍】

The GE Fanuc IC200PWB001 Power boost bracket is used to install additional power supplies in series with other module brackets in the system. The power supply mounted on the booster bracket powers each I/O module located to the right or up of the device until the next booster power supply in the same system. The DC or AC power supply on the NIU or CPU and the power supply present in the booster carrier should use an equivalent external power supply. The GE Fanuc IC200PWB001 power booster carrier has 2 leds, each showing the connected boost voltage

The GE Fanuc IC200PWB001 power booster bracket shall be properly mounted on a 7.5 mm x 35 mm DIN rail. To ensure EMC protection for DIN rails, they should be electrically grounded and the surface should be electrically conductive and corrosion-resistant. In order to provide resistance to mechanical shock and vibration, the IC200PWB001 power boost bracket shall be mounted on the panel. The power booster measures 66.8 mm (2.63 in) x 133.4 mm (5.25 in) x 70 mm (2.75 in). When removing the IC200PWB001 power booster rack, the user needs to remove it from the DIN rail by removing the screws used to attach it. If the supercharger bracket is mounted between other bracket units, the user will need to remove it because the matching connector is located on the side. To properly remove the booster bracket, the user needs to pull the DIN rail latch outward and tilt it.
