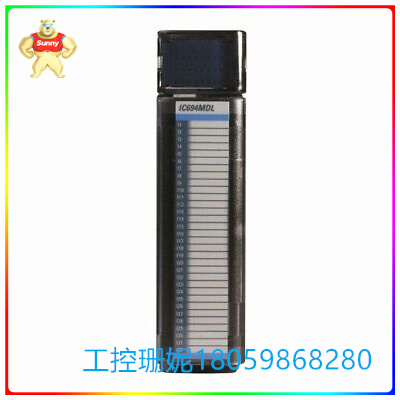

IC694MDL753B 分立式输入模块 数字输出模块

【产品详情】

该IC694MDL753是一款分立式输入模块，是 PACSystem RX3i 可编程自动化控制器 （PAC） 系列的一部分，该系列以前由 GE 智能平台制造，最近被艾默生自动化收购。该模块是一款高密度数字输出模块，具有三十二 （32） 个输出通道，分为四 （4） 个，每组八 （8） 个通道。

该模块的每个通道产生 10.2-28.8 VDC 的输出电压范围，标称值为 12 / 24 VDC。它仅支持正极逻辑接线配置，其中，来自输出通道的正极连接到所连接负载的正极。每个通道产生 0.5 安培的输出电流，每组最大电流为 4 安培，公共引脚每组 3 安培。每个通道产生 5.4 安培的浪涌电流，持续 10 毫秒，导通电压降为 0.3 VDC，关断状态泄漏电流为 0.1 安培。每个通道的响应时间为 0.5 ms

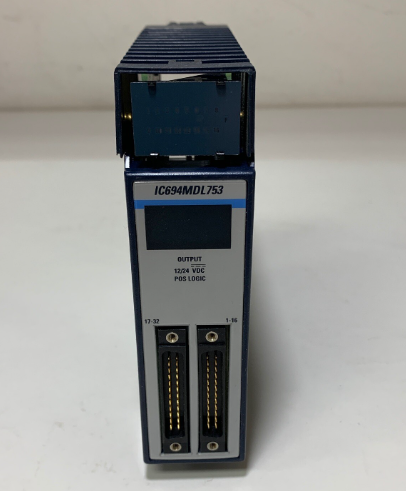

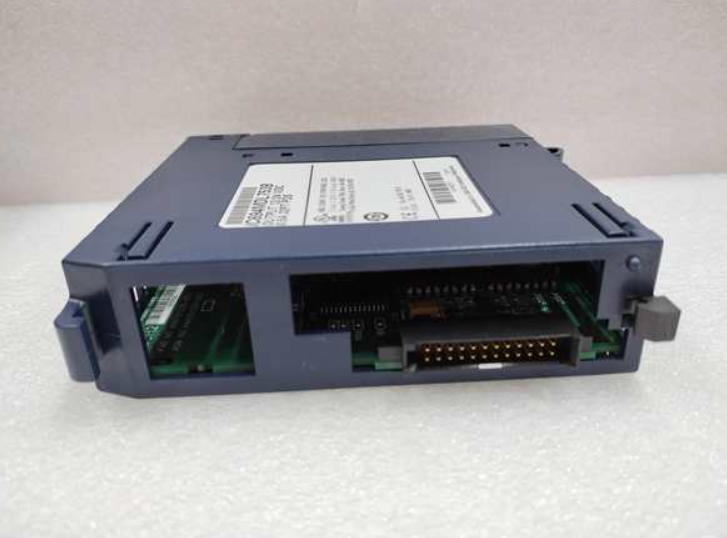

该模块配有 32 个单独的状态 LED，指示每个输出通道的通电状态。为了建立模块连接，该模块提供了与两个 24 针公连接器兼容的嵌入式引脚 （Fujitsu FCN–365P024–AU）。用户构建的电缆也可用于灵活性，或使用目录号为 IC694CBL327 和 IC694CBL328 的预接线电缆。

IC694MDL753占用机箱的单个插槽，可以安装到任何可用插槽，无论是在本地还是远程 I/O 机架中。当 CPU 转换到 STOP 模式时，模块的所有输出都会通电。

IC694MDL753 正逻辑输出模块是 GE Fanuc RX3i PacSystem I/O 模块系列的 12/24 V 直流正逻辑输出模块。IC694MDL753模块提供 32 个离散输出点，分为 4 组，每组 8 个输出。IC694MDL753模块的输出是正逻辑型输出或源极输出，它们可以在 +12 至 +24 伏直流（+20% 至 -15%）的范围内切换负载，源电流高达 0.5 安培/点。IC694MDL753模块上公共的每个输出组都有一个 2 针 I/O 连接器，能够处理高达 3.0 安培的电流负载，它们可用于同时驱动不同的负载，例如，4 组中的 3 组可用于驱动 24 伏直流负载，而第四组可用于驱动 12 伏直流负载。

IC694MDL753B 分立式输入模块 数字输出模块

【英文介绍】

The IC694MDL753 is a discrete input module that is part of the PACSystem RX3i Programmable Automation Controller (PAC) family, previously manufactured by GE Intelligent Platforms and recently acquired by Emerson Automation. The module is a high-density digital output module with thirty-two (32) output channels, divided into four (4), each group of eight (8) channels.

Each channel of the module produces an output voltage range of 10.2-28.8 VDC, with a nominal value of 12/24 VDC. It supports only positive logical wiring configurations where the positive terminal from the output channel is connected to the positive terminal of the connected load. Each channel produces an output current of 0.5 amps, with a maximum current of 4 amps per group and 3 amps per group of common pins. Each channel generates a surge current of 5.4 amps for 10 milliseconds, with a on-voltage drop of 0.3 VDC and a turn-off leakage current of 0.1 amps. The response time for each channel is 0.5 ms

The module is equipped with 32 individual status leds that indicate the power status of each output channel. To establish module connections, the module is provided with embedded pins compatible with two 24-pin male connectors (Fujitsu FCN-365P024-AU). User-built cables are also available for flexibility, or with pre-wired cables with catalog numbers IC694CBL327 and IC694CBL328.

The IC694MDL753 occupies a single slot in the chassis and can be installed into any available slot, either in a local or remote I/O rack. When the CPU switches to STOP mode, all the output of the module is powered on.

The IC694MDL753 positive logic output module is a 12/24 V DC positive logic output module of GE Fanuc RX3i PacSystem I/O module series. The IC694MDL753 module provides 32 discrete output points divided into 4 groups of 8 outputs each. The outputs of the IC694MDL753 module are positive logic outputs or source outputs, which can switch loads in the range of +12 to +24 volts DC (+20% to -15%) with source currents up to 0.5 amps/point. Each output group common on the IC694MDL753 module has a 2-pin I/O connector capable of handling current loads up to 3.0 amps, and they can be used to drive different loads at the same time, for example, three of the four groups can be used to drive a 24 volt DC load, while the fourth group can be used to drive a 12 volt DC load.

IC694MDL753B 分立式输入模块 数字输出模块
