IC694PWR331D 高容量电源  用作串行扩展单元

【产品详情】

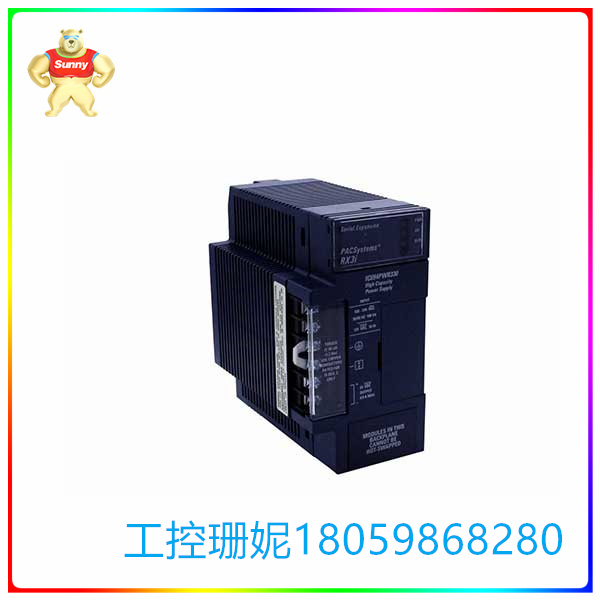

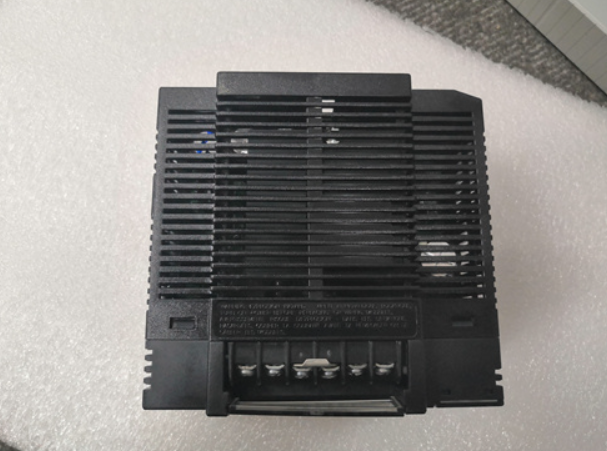

GE Fanuc Automation 将 IC694PWR331 电源模块作为 GE RX3i PACSystems 产品线的一员进行制造。它是一种高容量电源，设计用于GE RX3i PACSystems系列PLC。该模块还可用作串行扩展单元，与GE RX3i产品系列中的每个CPU兼容和使用。IC694PWR331电源安装在PLC的串行扩展背板中，只有在断开背板电源后才能执行此操作。这款高容量电源的额定电流为 5 安培，可容纳 44A724627-114 保险丝和 Bussman GMC-5-R 保险丝等保护保险丝。在安装此大容量电源之前，技术人员需要确保扩展背板上的拨码开关放置在正确的位置。

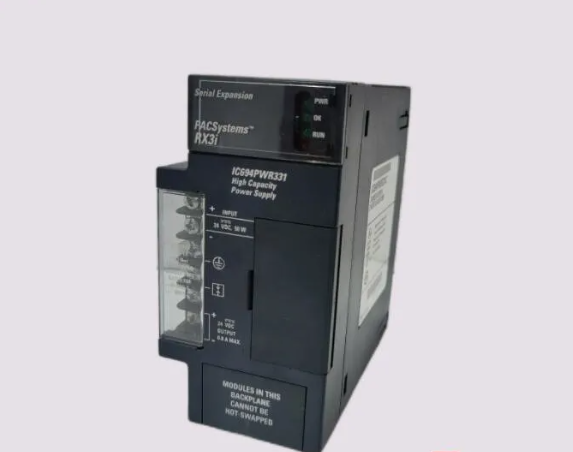

GE Fanuc Automation RX3i PACSystems IC694PWR331电源模块的最大负载能力为 30 瓦。该模块具有 3 个输出，包括一个 24 伏直流隔离输出、一个 5 伏直流输出和一个额定电压为 24 伏直流的继电器输出。该电源模块可以处理的最高负载包括输出电压为 5 伏直流电时为 30 瓦的负载、继电器电压为 24 伏直流电时的 15 瓦负载和隔离电压为 24 伏直流电时的 20 瓦负载。GE Fanuc IC694PWR331电源模块使用铜制导体，额定温度至少为 75 摄氏度。它还具有 3 个 LED 指示灯，分别是“OK”、“PWR”和“RUN”LED 指示灯。

IC694PWR331D 高容量电源  用作串行扩展单元

【英文介绍】

GE Fanuc Automation manufactures the IC694PWR331 power module as a member of the GE RX3i PACSystems product line. It is a high capacity power supply designed for the GE RX3i PACSystems series PLC. The module can also be used as a serial expansion unit, compatible with every CPU in the GE RX3i product family. The IC694PWR331 power supply is installed in the PLC's serial expansion backplane and can only be performed after disconnecting the backplane power supply. This high-capacity power supply is rated at 5 amps and can accommodate protective fuses such as 44A724627-114 and Bussman GCC-5-R fuses. Before installing this high-capacity power supply, technicians need to ensure that the dip switch on the expansion backplane is placed in the correct position.

The GE Fanuc Automation RX3i PACSystems IC694PWR331 power module has a maximum load capacity of 30 watts. The module has 3 outputs, including a 24 volt DC isolation output, a 5 volt DC output, and a relay output rated at 24 volts DC. The maximum loads that the PSU can handle include 30 watts at an output voltage of 5 VDC, 15 watts at a relay voltage of 24 VDC, and 20 watts at an isolation voltage of 24 VDC. The GE Fanuc IC694PWR331 power module uses copper conductors with a temperature rating of at least 75 degrees Celsius. It also has 3 LED indicators, namely "OK", "PWR" and "RUN" LED indicators.

IC694PWR331D 高容量电源  用作串行扩展单元
