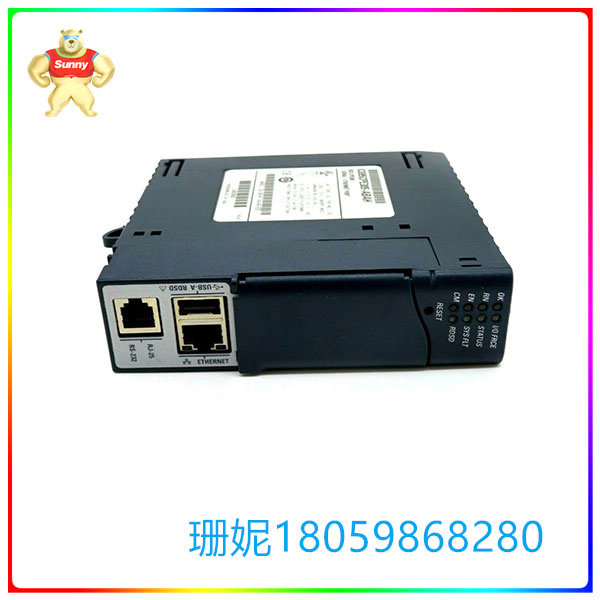

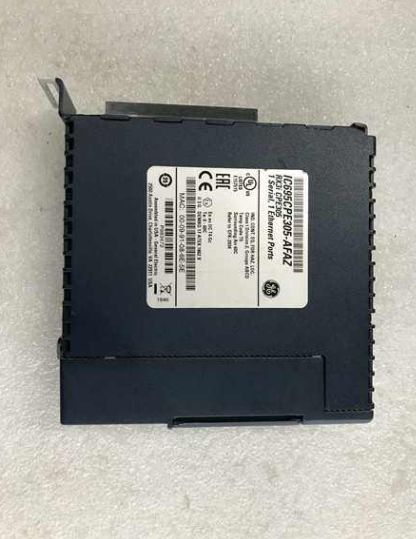

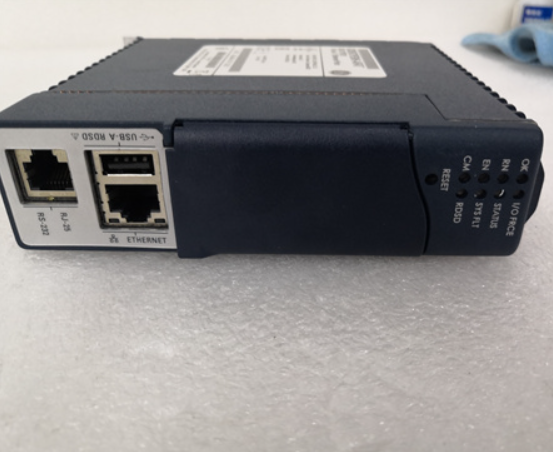

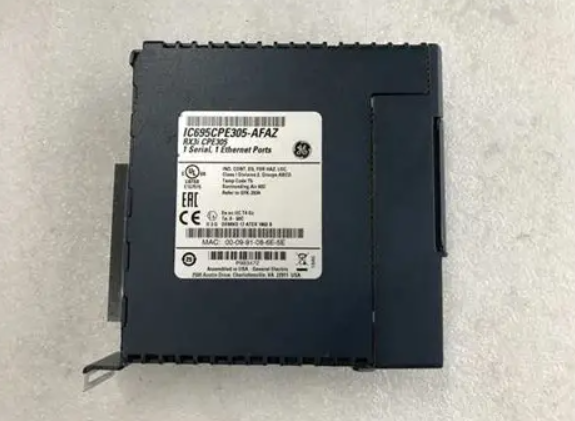

IC695CPE305-AFBA 可编程自动化控制器 具有以太网通信功能

【产品详情】

IC695CPE305可编程自动化控制器 （PAC） 是 PACSystems RX3i 自动化平台的一部分。该控制器由当时的 GE Fanuc Automation（现为 Emerson Automation）制造。

IC695CPE305具有优于当今大多数 PAC 的高级功能。该控制器通过一 （1） 个以太网通信端口具有以太网通信功能，该端口支持 10/100 Mbps 通信速率，可用于与编程工作站、人机界面 （HMI）、监控和数据采集 （SCADA） 系统、第三方硬件和软件产品以及同一平台的控制器进行通信，用于消息传递和控制器间数据交换。此外，以太网端口支持 OPC UA，允许通过 OPC 协议连接到第三方设备。

IC695CPE305不仅限于以太网通信，因为该控制器还集成了两 （2） 个支持 RS232 和 RS485 通信标准的串行端口。它还配备了一 （1） 个 USB 2.0 主端口，允许从智能手机的拇指驱动器下载和上传用户程序。

IC695CPE305 5MB RAM 和 5MB 非易失性用户存储器，处理器速度为 1.1 GHz，典型扫描速率为每 1000 条布尔指令 0.72 ms。它支持多种网络协议，如以太网（PROFINET、以太网全局数据、通道、Modbus TCP 服务器和客户端）、Genius、PROFIBUS DP、DeviceNet。IC695CPE305最多允许控制八 （8） 个机架，包括 CPU 机架。该控制器支持安装支持串行、Genius、CMX（反射存储器）和以太网的附加通信卡。

这款单插槽控制器最多支持 8 个本地机架。

IC695CPE305 RX3i 中央处理器或 CPU 在电气上符合 PCI 2.2 标准。它与通用背板、RX3i 系列 PCI 设备和 GE 系列 90-30 型串行设备兼容。该模块的功率要求为 1 安培（5 伏直流）、1 安培（3.3 伏直流）和 0.5 安培（24 伏直流）。它支持 SNP Slave、Serial I/O 和 Modbus RTU Slave 串行协议。以太网接口的规格是编程器连接、10Mb/秒和 100Mb/秒以太网数据速率、10 BaseT RJ-45 配置以及基于 UDP 的远程站管理器。IC695CPE305 CPU 可以安装在 RX3i 主机架中的任何一对插槽中，但编号最高的插槽除外。CPE310 控制器可以很容易地与能够容纳处理器中现有用户程序的CPED305控制器进行交换。为了配置该模块，需要Proficy Machine Edition Logic Developer 7.0 SIM 3或更高版本的软件。

IC695CPE305-AFBA 可编程自动化控制器 具有以太网通信功能

【英文介绍】

The IC695CPE305 Programmable Automation Controller (PAC) is part of the PACSystems RX3i automation platform. The controller was manufactured by then GE Fanuc Automation (now Emerson Automation).

The IC695CPE305 has advanced features that are superior to most PACs today. The controller has Ethernet communication capabilities through one (1) Ethernet communication port that supports 10/100 Mbps communication rates and can be used to communicate with programming workstations, human machine interface (HMI), monitoring and data acquisition (SCADA) systems, third-party hardware and software products, and controllers on the same platform. Used for message passing and data exchange between controllers. In addition, the Ethernet port supports OPC UA, allowing connection to third-party devices via the OPC protocol.

The IC695CPE305 is not limited to Ethernet communication, as the controller also integrates two (2) serial ports that support the RS232 and RS485 communication standards. It also comes with one (1) USB 2.0 master port that allows downloading and uploading user programs from the smartphone's thumb drive.

The IC695CPE305 has 5MB of RAM and 5MB of non-volatile user memory with a processor speed of 1.1 GHz and a typical scan rate of 0.72 ms per 1000 Boolean instructions. It supports several network protocols such as Ethernet (PROFINET, Ethernet global data, channels, Modbus TCP server and client), Genius, PROFIBUS DP, DeviceNet. The IC695CPE305 allows control of up to eight (8) racks, including CPU racks. The controller supports the installation of additional communication cards that support serial, Genius, CMX (Reflected memory) and Ethernet.

The single-slot controller supports up to eight local racks.

The IC695CPE305 RX3i central processing unit or CPU is electrically PCI 2.2 compliant. It is compatible with universal backplanes, RX3i series PCI devices, and GE Series Type 90-30 serial devices. The module's power requirements are 1 amp (5 V DC), 1 amp (3.3 V DC), and 0.5 amp (24 V DC). It supports SNP Slave, Serial I/O, and Modbus RTU Slave serial protocols. The Ethernet interface specifications are programmer connectivity, 10Mb/ s and 100Mb/ s Ethernet data rates, 10 BaseT RJ-45 configuration, and a UDP-based remote station manager. The IC695CPE305 CPU can be installed in any pair of slots in the RX3i mainframe, except for the highest numbered slot. The CPE310 controller can be easily interchanged with a CPED305 controller that can accommodate existing user programs in the processor. In order to configure the module, Proficy Machine Edition Logic Developer 7.0 SIM 3 or later is required.

IC695CPE305-AFBA 可编程自动化控制器 具有以太网通信功能
