IS200STAOH2AAA 印刷电路板 PCB
【产品详情】
IS200STAOH2AAA是一种称为DINrail TRBD ANLGIO板的设备。这是一种印刷电路板或PCB。IS200STAOH2AAA是Mark VI系列的组件之一。Mark VI 和其他 Mark 系列组成了通用电气或 GE 的 Mark 系列。Mark 产品已用于燃气轮机和蒸汽轮机的自动化和管理。自 1969 年推出 Mark I 以来,工业涡轮机一直由 Mark 系列管理。

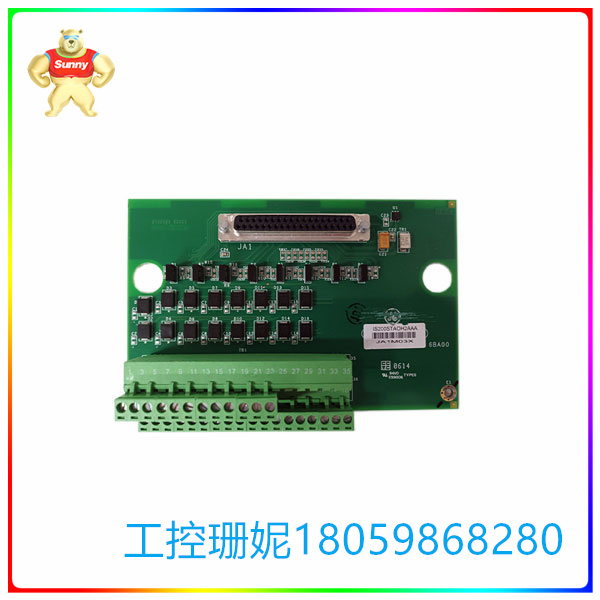

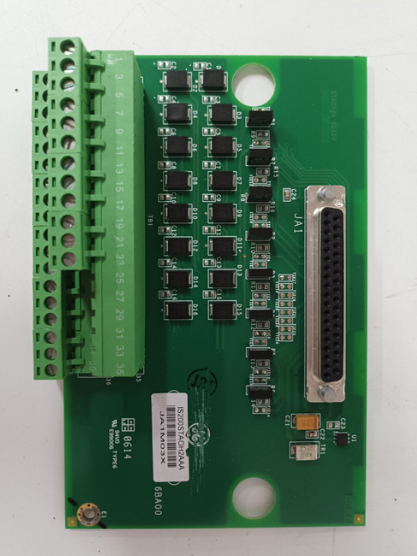

IS200STAOH2AAA是一块方形的大型印刷电路板。一个绿色的大塑料接线端子位于IS200STAOH2AAA的底部边缘。该接线端子内包含 48 个端子。其中二十四 (24) 个排列在第一排,其他二十四 (24) 个位于底部。IS200STAIH2A包含十 (10) 个晶体管,它们排列在 PCB 中间的水平线上。这些晶体管是黑色的,呈半圆形。每对晶体管之间有两 (2) 个红色跳线。这些跳线用于连接两 (2) 个跳线引脚以改变IS200STAOH2AAA的操作。IS200STAOH2AAA有许多不同的跳线引脚,由银或金金属制成。其中大多数位于晶体管之间,但四 (4) 个跳线引脚排列在 PCB 右上角附近的一条线上,旁边是一组四 (4) 个电位计或可变电阻器。
IS200STAOH2AAA 印刷电路板 PCB
【英文介绍】
The IS200STAIH2A is a device called DINrail TRBD ANLGIO Board. This is a printed circuit board or PCB. IS200STAIH2A is one of the components of the Mark VI series. The Mark VI and other Mark series make up the General Electric or GE Mark Series. Mark products have been used in the automation and management of gas and steam turbines. Since the launch of the Mark I in 1969, industrial turbines have been managed by the Mark family.
The IS200STAIH2A is a large square printed circuit board. A large green plastic terminal is located on the bottom edge of the IS200STAIH2A. The terminal contains 48 terminals. Twenty-four (24) of them are arranged in the first row and the other twenty-four (24) are located at the bottom. The IS200STAIH2A contains ten (10) transistors arranged in a horizontal line in the middle of the PCB. The transistors are black and semi-circular. There are two (2) red jumpers between each pair of transistors. These jumpers are used to connect two (2) jumper pins to change the operation of the IS200STAIH2A. The IS200STAIH2A has many different jumper pins and is made of silver or gold metal. Most of these are located between transistors, but four (4) jumper pins are arranged on a line near the top right corner of the PCB, next to a set of four (4) potentiometers or variable resistors.
