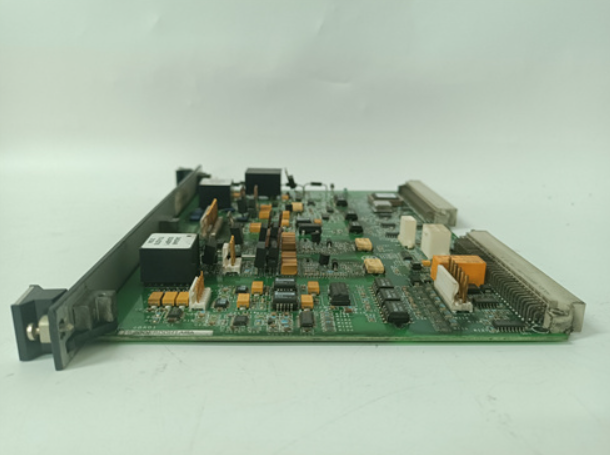

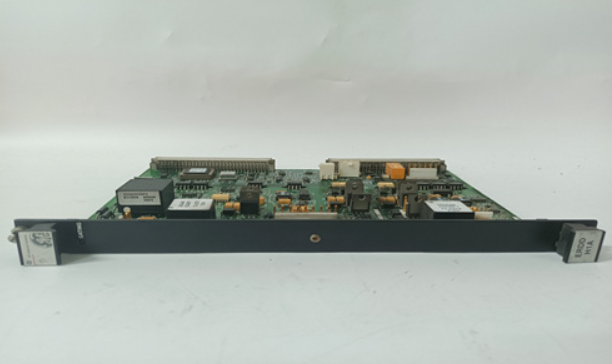

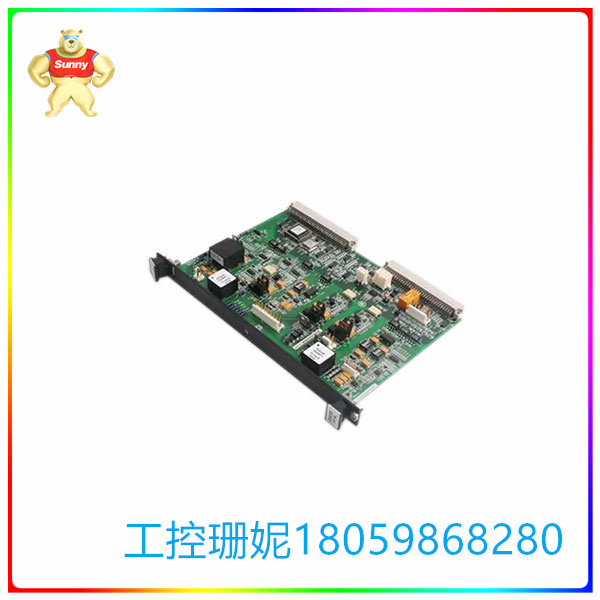

IS200ERDDH1ABA 励磁调节器动态放电板 单工模式
【产品详情】
GE通用电气技术规格:IS200ERDDH1ABA
安全证书IS200ERDDH1ABA必须安装在
系统。
安全证书用于保护您的身份信息,并保护您的计算机免受
不安全的软件。证书是验证个人身份或网站安全性的声明。
在应用程序安装过程中,IS200ERDDH1ABA使用工作流自动生成证书
证书服务。或者,您可以为 ProficyPlatform、Proficy STS、
和 SSL/TLS 服务器服务
IS200ERDDH1A型号是 EX2100 系列的一部分,是一款励磁调节器动态放电板。ERDD模型有两种操作模式,单工模式和冗余模式。每种应用模式的使用方式不同,安装方式也不同。
当IS200ERDDH1A在单工模式下使用时,该模型控制 K3 充电继电器;当电路板在冗余模式下使用时,它将控制 K41 去励磁继电器。 在单工和冗余模式下运行时,ERDD模式的安装位置是不同的,在单工模式下,IS200ERDDH1A安装在ERBP背板中,而在冗余模式下必须使用两个ERDD型号,一个安装在与单工模式下的型号相同的位置,另一块板将安装在ERRB背板中。
该板的另一个功能是提供来自电桥的反馈,以观察输出场和直流母线电压。在监控这些时,该板还允许观察输出分流电流、IGBT栅极驱动状态和电桥温度。IS200ERDDH1A板通常还用于通过模型的动态放电来控制多余的直流母线电压。
IS200ERDDH1ABA 励磁调节器动态放电板 单工模式
【英文介绍】
GE General Electric specification: IS200ERDDH1ABA
Security certificate IS200ERDDH1ABA must be installed in
System.
Security certificates are used to protect your identity and protect your computer from
Insecure software. A certificate is a statement that verifies an individual's identity or the security of a website.
IS200ERDDH1ABA uses a workflow to automatically generate certificates during application installation
Certificate service. Alternatively, you can use the ProficyPlatform, Proficy STS,
And SSL/TLS server services
The IS200ERDDH1A model is part of the EX2100 series and is an exciting regulator dynamic discharge board. The ERDD model has two modes of operation, simplex mode and redundant mode. Each application mode is used differently and installed differently.
When the IS200ERDDH1A is used in simplex mode, the model controls the K3 charging relay; When the board is used in redundant mode, it will control the K41 deexcitation relay. When running in simplex and redundant mode, the ERDD mode is installed in a different location, in simplex mode, the IS200ERDDH1A is installed in the ERBP backplane, while in redundant mode two ERDD models must be used, one installed in the same location as the model in simplex mode, and the other board will be installed in the ERRB backplane.
Another function of the board is to provide feedback from the bridge to observe the output field and DC bus voltage. While monitoring these, the board also allows observation of the output shunt current, IGBT gate drive state, and bridge temperature. The IS200ERDDH1A board is also commonly used to control excess DC bus voltage through dynamic discharge of the model.
IS200ERDDH1ABA 励磁调节器动态放电板 单工模式
