IC670ALG310  电压源模拟量输出模块 电压输出通道

【产品详情】

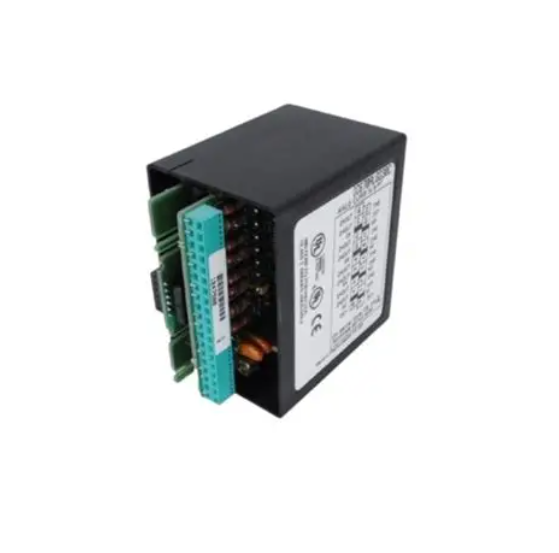

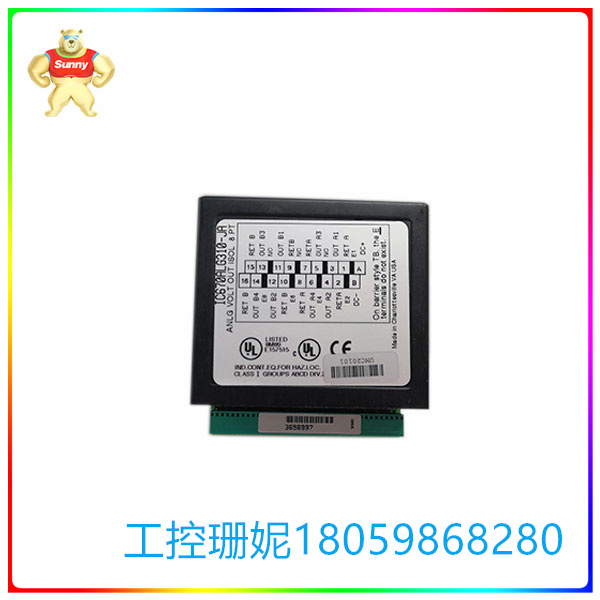

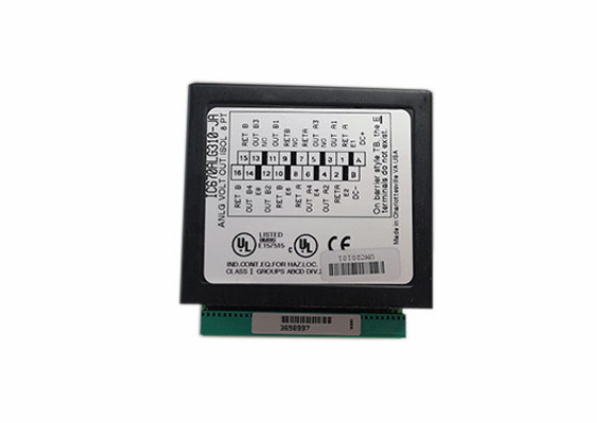

GE IC670ALG310模块是一个电压源模拟量输出模块。它设计有 8 个不同的电压输出通道，可以根据操作员的配置自动缩放。该模块从与其相连的总线接口单元获取输入，并增强校准数据，并将数据转换为 -10 至 +10 伏范围内的输出电压。IC670ALG310输出模块具有增强的诊断功能。它可以轻松检测超量程和欠量程的情况、用户电源损失和未校准的模块。输出模块还具有可由用户针对不同事件设置的警报。当输出值不满足模块最大或最小输出设置的 50 毫伏要求时，模块将输出值视为低于量程和超出量程。

IC670ALG310输出模块体积小巧，可以安装在狭小的空间内。对于输入数据，它需要 0 到 8 个字的模拟输出数据，0 到 3 个字节的输入数据用于模块和通道状态，0 到 2 个字节的输出数据用于清除警报。所有数据交换都发生在输出模块和总线接口单元之间。IC670ALG310输出模块具有“通道活动”功能，允许操作员将单个通道配置为活动或非活动。该模块还具有本地输出默认功能，有助于将总线接口单元中的模块数据配置为默认设置或零。该模块从总线接口吸收 170 毫安的电流。该模块的分辨率为 14 位，幅度数据大小为 14 位。

IC670ALG310  电压源模拟量输出模块 电压输出通道

【英文介绍】

The GE IC670ALG310 module is a voltage source analog output module. It is designed with eight different voltage output channels that can be scaled automatically according to the operator's configuration. The module takes inputs from the bus interface unit connected to it and enhances the calibration data and converts the data to an output voltage in the -10 to +10 volt range. The IC670ALG310 output module has enhanced diagnostic capabilities. It can easily detect overrange and underrange conditions, user power losses and uncalibrated modules. The output module also has alerts that can be set by the user for different events. When the output value does not meet the 50 millivolts requirement of the module's maximum or minimum output setting, the module considers the output value to be below and beyond the range.

The IC670ALG310 output module is compact and can be installed in tight Spaces. For input data, it requires 0 to 8 words of analog output data, 0 to 3 bytes of input data for module and channel status, and 0 to 2 bytes of output data to clear alarms. All data exchange takes place between the output module and the bus interface unit. The IC670ALG310 output module has a "channel activity" function that allows operators to configure individual channels as active or inactive. The module also has a local output default that helps to configure the module data in the bus interface unit to default Settings or zero. The module absorbs 170 mA of current from the bus interface. The module has a resolution of 14 bits and a amplitude data size of 14 bits.
