IC754VS106STD 快速面板显示器 操作终端

【产品详情】

产品描述

IC754VSI06STD是GE Fanuc为其操作员界面产品线设计的6英寸快速面板显示器。 作为操作终端，IC754VSI06STD使用户能够与各种类型的设备进行连接。

该IC754VSI06STD在预装了Proficy View Machine Edition软件的MS Windows CE操作系统上运行。 6 英寸显示屏还配备了 RS-232/RS-485 串行接口。 用户可以使用触摸屏输入数据。IC754VSI06STD由 12-30 VDC 电源插头供电。它有一个 32 MB 的内部存储器。它的运输重量和尺寸分别为 5 磅和 14 x 12 x 10 英寸。

除了主触摸屏界面外，IC754VSI06STD还支持各种通信端口。该IC754VSI06STD配备了多种内存类型，可满足市场上最苛刻的应用。DRAM 的 512MB 部分在操作系统、对象存储和应用程序内存之间拆分。作为虚拟硬盘驱动器，256MB的非易失性闪存部分在操作系统和应用程序的持久存储之间划分。

该IC754VSI06STD具有由电池支持的 512KB SRAM 保持存储器，从而保护有价值的数据在断电时不会丢失。没有与即将发生的电源故障或其他计划外停机相关的特定危险。在突然断电的情况下，程序保留在闪存中，用户数据保留在电池备份的SRAM中。

IC754VS106STD 快速面板显示器 操作终端

【英文介绍】

Product description

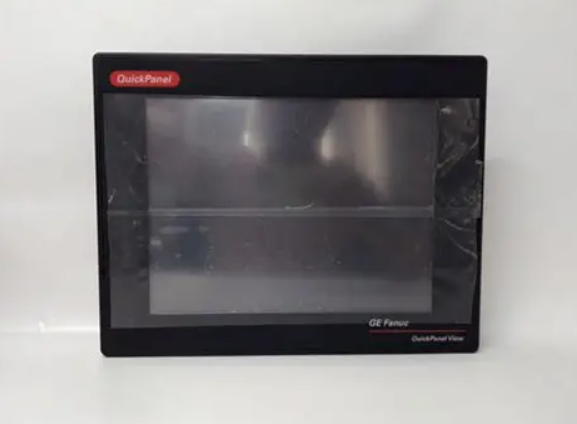

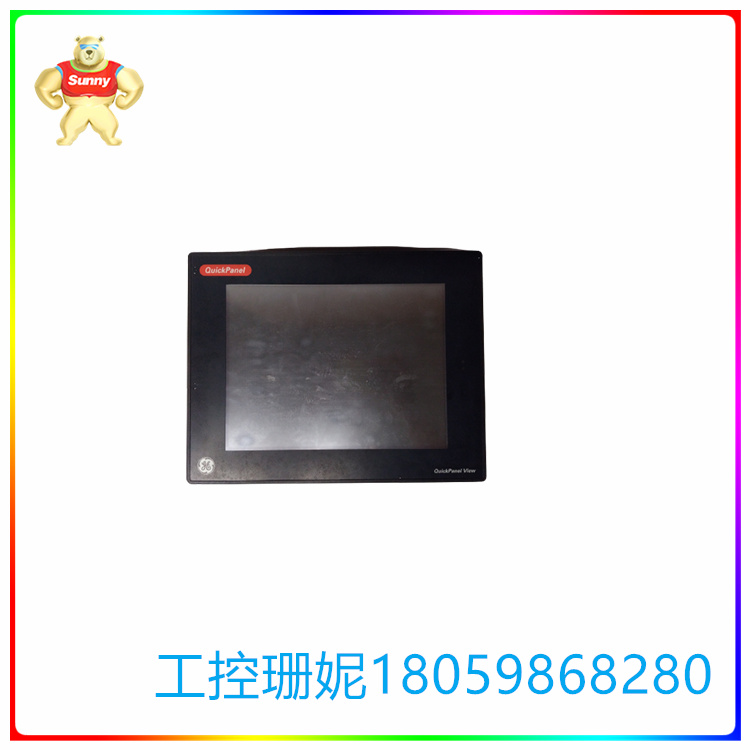

The IC754VSI06STD is a 6-inch fast panel display designed by GE Fanuc for its operator interface product line. As an operating terminal, the IC754VSI06STD enables the user to connect with various types of devices.

The IC754VSI06STD runs on a MS Windows CE operating system pre-installed with Proficy View Machine Edition software. The 6-inch display is also equipped with an RS-232/RS-485 serial interface. Users can enter data using the touch screen. The IC754VSI06STD is powered by a 12-30 VDC power plug. It has a 32 MB internal memory. Its shipping weight and dimensions are 5 pounds and 14 x 12 x 10 inches, respectively.

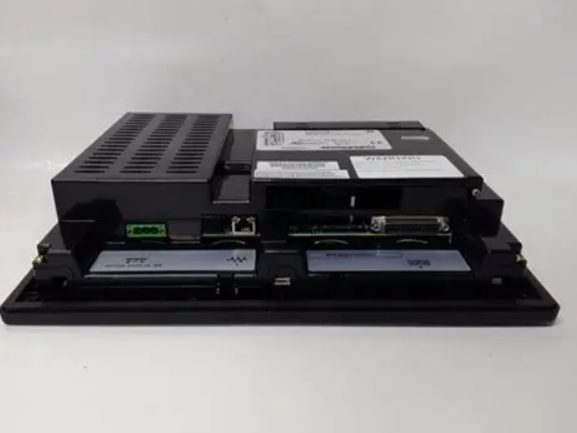

In addition to the main touch screen interface, the IC754VSI06STD supports a variety of communication ports. The IC754VSI06STD is equipped with multiple memory types to meet the most demanding applications on the market. The 512MB portion of DRAM is split between the operating system, object storage, and application memory. As a virtual hard drive, the 256MB non-volatile flash portion is divided between the persistent storage of the operating system and applications.

The IC754VSI06STD features 512KB of battery-supported SRAM retention memory, thus protecting valuable data from loss in the event of power outage. There are no specific hazards associated with an impending power failure or other unplanned downtime. In the event of a sudden power outage, the program remains in the flash memory and the user data remains in the battery backup SRAM.

IC754VS106STD 快速面板显示器 操作终端
