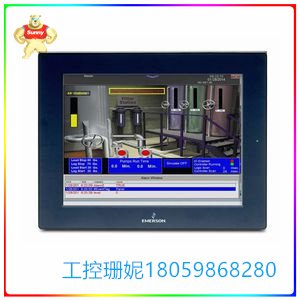

IC755CBW07CDA
IC755CBW07CDA

IC755CBW07CDA 人机界面 操作员界面终端

IC755CBW07CDA人机界面操作员界面终端【产品详情】IC755CSW07CDA的技术参数品牌GE发那科系列快速面板制造者:GE发那科制造者艾默生自动化/

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

IC755CBW07CDA  人机界面  操作员界面终端




【产品详情】



IC755CSW07CDA的技术参数

品牌 GE发那科

系列 快速面板

制造者: GE发那科

制造者 艾默生自动化 / GE Fanuc (前)

零件编号 IC755CSW07CDA

产品系列: QuickPanel+ (英语)

产品系列 QuickPanel+ (英语)

描述 操作界面终端

产品类型: 操作终端

该IC755CSW07CDA是艾默生自动化的 QuickPanel+ 操作终端。该设备通常被业内大多数人员称为人机界面 (HMI) 或操作员界面终端 (OIT),因为该电子设备主要用于通过嵌入式 7 英寸宽屏显示器(分辨率为 800 x 480 像素)和多点触控操作员输入界面提供连接机器或过程的实时监控和控制功能。此外,该终端还能够用作控制器、机器网关和数据历史记录。


IC755CSW07CDA 是一种 HMI 设备,支持面板安装或 VESA 75 安装。它需要+24VDC的输入电源电压±20%端接到提供的3针凤凰型连接器。该设备的最大功耗为 15 瓦。它使用自然对流进行设备冷却,必须安装在温度范围为 0-55 摄氏度和相对湿度为 85% 的应用区域。


该IC755CSW07CDA预装了 Windows Compact Embedded 7 操作系统 (OS) 的实例。该操作系统提供用户友好的配置环境,并提供连接功能以及终端管理功能和工具。该HMI安装有Intel Freescale i.MX535 1 GHz ARM Cortex A8处理器,该处理器集成了由512 MB DDR2 SDRAM、256 MB SLC NAND Flash和512 KB SRAM组成的集成存储器。


该 HMI 配有一 (1) 个以太网 I/P 通信端口和一 (1) 个 RS232 通信接口。它还具有三 (3) 个 USB 端口和一 (1) 个 SD SDHC 可移动卡插槽,用于内存扩展。


IC755CSW07CDA端子是GE Fanuc制造的7英寸Quickpanel端子。它是带有彩色TFT宽屏的Quickpanel系列终端,可以显示清晰的数据和信息。面板支持多点触控,使用方便。它的分辨率为 WVGA 800 x 480 像素。它由 24 伏直流电源供电。终端使用GE字母组合表圈。该终端设计有 NEMA 4X 外壳。它配备了一个 512 MB DDR2 SDRAM 和一个 256 MB NAND 闪存用于存储。IC755CSW07CDA端子具有一个 10/100 Base T 以太网端口和一个用于通信的 RS-232 端口。显示终端中还存在两个 USB 端口。温度应保持在 0 到 55 摄氏度之间以获得最佳操作。操作界面端子已通过 UL、CE 和 EN 标准认证。


GE Fanuc IC755CSW07CDA终端采用速度为 8 GHz 的 ARM A1 Cortex 处理器。它能够轻松处理 2D 和 3D 图形。该终端配备了 NEON SIMD 媒体加速器,有助于处理图形密集型进程。另一个向量浮点协处理器也用于处理逻辑运算。终端使用 Windows 7 操作系统与操作员连接。IC755CSW07CDA端子的最大额定功耗为 15 瓦。采用自然对流方式保持终端温度。不使用时,它可以存放在 -10 到 60 摄氏度之间的温度下。




IC755CBW07CDA  人机界面  操作员界面终端





英文介绍



Technical parameters of IC755CSW07CDA

Brand GE Fanuc

Series quick panel

Manufacturer: GE Fanuc

Manufacturer Emerson Automation/GE Fanuc (front)

Part number IC755CSW07CDA

Product Line: QuickPanel+ (English)

Product Range QuickPanel+ (English)

Describes the operation terminal

Product type: Operation terminal

The IC755CSW07CDA is Emerson Automation's QuickPanel+ operator terminal. The device is often referred to by most people in the industry as the Human Machine Interface (HMI) or Operator Interface terminal (OIT) because the electronic device is primarily used to provide real-time monitoring and control of connected machines or processes through an embedded 7-inch widescreen display (resolution 800 x 480 pixels) and a multi-touch operator input interface. In addition, the terminal can be used as a controller, machine gateway, and data history.


The IC755CSW07CDA is an HMI device that supports panel mounting or VESA 75 mounting. It requires +24VDC input supply voltage ±20% end to the provided 3-pin Phoenix connector. The device has a maximum power consumption of 15 watts. It uses natural convection for equipment cooling and must be installed in an application area with a temperature range of 0-55 degrees Celsius and a relative humidity of 85%.


The IC755CSW07CDA is preloaded with an instance of the Windows Compact Embedded 7 operating system (OS). The operating system provides a user-friendly configuration environment and provides connectivity capabilities as well as terminal management functions and tools. The HMI is powered by an Intel Freescale i.MX535 1 GHz ARM Cortex A8 processor. The processor incorporates an integrated memory consisting of 512 MB DDR2 SDRAM, 256 MB SLC NAND Flash, and 512 KB SRAM.

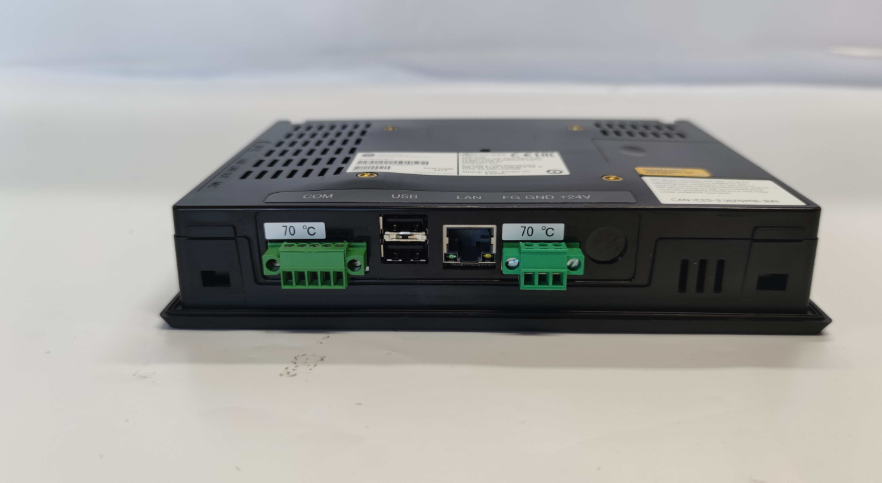

The HMI is equipped with one (1) Ethernet I/P communication port and one (1) RS232 communication interface. It also features three (3) USB ports and one (1) SD SDHC removable card slot for memory expansion.


The IC755CSW07CDA terminal is a 7-inch Quickpanel terminal manufactured by GE Fanuc. It is a Quickpanel series terminal with a color TFT widescreen screen that can display clear data and information. Panel support multi-touch, easy to use. Its resolution is WVGA 800 x 480 pixels. It is powered by a 24 volt DC supply. The terminal uses GE letter combination bezels. The terminal is designed with a NEMA 4X housing. It comes with a 512 MB DDR2 SDRAM and a 256 MB NAND flash memory for storage. The IC755CSW07CDA terminal has a 10/100 Base T Ethernet port and an RS-232 port for communication. There are also two USB ports in the display terminal. The temperature should be maintained between 0 and 55 degrees Celsius for optimal operation. Terminals on the operation interface have been certified by UL, CE, and EN standards.


The GE Fanuc IC755CSW07CDA terminal uses an ARM A1 Cortex processor with a speed of 8 GHz. It can easily handle 2D and 3D graphics. The terminal is equipped with a NEON SIMD media accelerator to help handle graphics-intensive processes. Another vector floating-point coprocessor is also used to handle logical operations. The terminal uses the Windows 7 operating system to connect to the operator. The IC755CSW07CDA terminal has a maximum rated power consumption of 15 watts. The terminal temperature is maintained by natural convection. When not in use, it can be stored at temperatures between -10 and 60 degrees Celsius.




IC755CBW07CDA  人机界面  操作员界面终端
