IC695PNS001 扫描器模块 单插槽宽的模块
【产品详情】

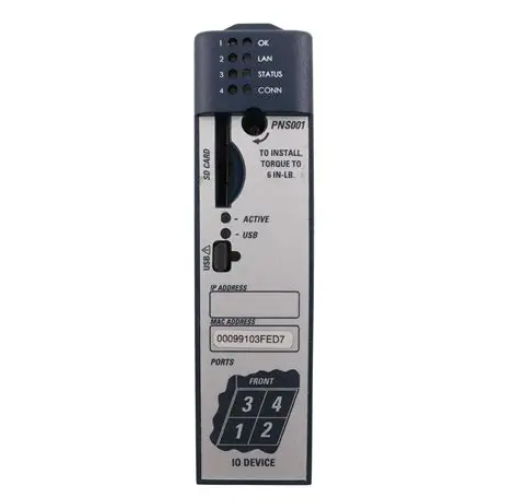

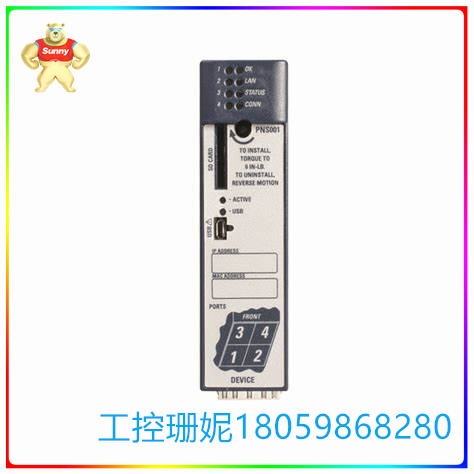

IC695PNS001是由GE Fanuc / Emerson Automation制造的Profinet扫描器模块。该模块是一个单插槽宽的模块,用于管理 Profinet 连接,例如与位于通用 I/O 背板中的远程 I/O 设备通信,无论是 90-30 系列还是 RX3i 模块;通过Profinet网络将I/O数据发送到网络中的伙伴CPU;与人机界面 (HMI)、监控和数据采集 (SCADA) 以及其他类似的自动化组件进行通信。
该IC695PNS001具有一 (1) 个微型 USB 端口,主要用于执行固件升级。它还配备了四 (4) 个以太网通信端口,主要支持 Profinet 协议。每个端口都支持现代通信速度,例如 10/100/1000 Mbps 通信速度,并支持各种拓扑结构,例如 Liner、菊花链、星形、环形或冗余以太网介质拓扑。此外,IC695PNS001的两 (2) 个以太网端口是两 (2) 个小型 (SFP) 可插拔笼,可以与 SFP 模块一起安装,用于将网络转换为光纤介质。
该IC695PNS001采用简化的配置方法设计。I/O 设备名称、IP 地址和其他参数可以保存在 SD 卡中,并通过插入相同的 SD 卡传输到其他 Profinet 扫描器模块。这种方法消除了对软件配置工具的依赖性,并大大减少了维护时间。
IC695PNS001占用背板的单个插槽,状态 LED 指示灯安装在模块的前面板上。它具有 OK LED、LAN LED、STATUS LED、CONN LED、单个端口 LED、有源 LED 和 USB LED。这些 LED 指示灯提供了模块运行状态的全面概览。
该IC695PNS001的内部额定功率为 1.2 安培(3.3 伏直流电)或 1.1 安培(额定电压为 5 伏直流电)。此模块支持 Proficy Machine Edition 版本 8.50 或更高版本的软件。该模块的工作温度范围为 0 至 60 摄氏度,配有 2 个 SFP 和 2 个 RJ-45 笼子,SFP 设备单独提供。
当网络通信丢失时,IC695PNS001 PROFINET 扫描器模块会根据模块的特定配置帮助管理输入和输出状态。该模块具有 4 个交换以太网端口,支持菊花链、星形或环形拓扑结构。
IC695PNS001 扫描器模块 单插槽宽的模块
【英文介绍】
The IC695PNS001 is a Profinet scanner module manufactured by GE Fanuc/Emerson Automation. The module is a single slot wide module for managing Profinet connections, such as communication with remote I/O devices located in a universal I/O backplane, whether it is a 90-30 series or an RX3i module; Send I/O data to partner cpus in the network via the Profinet network; Communicate with Human machine interface (HMI), supervisory Control and Data acquisition (SCADA), and other similar automation components.
The IC695PNS001 has one (1) micro USB port and is primarily used to perform firmware upgrades. It is also equipped with four (4) Ethernet communication ports, primarily supporting the Profinet protocol. Each port supports modern communication speeds, such as 10/100/1000 Mbps communication speeds, and supports various topologies, such as Liner, Daisy chain, star, ring, or redundant Ethernet media topologies. In addition, the two (2) Ethernet ports of the IC695PNS001 are two (2) small (SFP) pluggable cages that can be installed with the SFP module for converting the network to fiber optic media.
The IC695PNS001 is designed with a simplified configuration approach. The I/O device name, IP address, and other parameters can be saved in the SD card and transferred to other Profinet scanner modules by inserting the same SD card. This approach eliminates the dependency on software configuration tools and greatly reduces maintenance time.
The IC695PNS001 occupies a single slot in the backplane, and the status LED indicator is mounted on the front panel of the module. It has OK LED, LAN LED, STATUS LED, CONN LED, single port LED, active LED and USB LED. These LED indicators provide a comprehensive overview of the module's operating status.
The IC695PNS001 has an internal power rating of 1.2 amps (3.3 volts DC) or 1.1 amps (5 volts DC rated). This module supports Proficy Machine Edition version 8.50 or later. The module operates in a temperature range of 0 to 60 degrees Celsius and is equipped with 2 SFP and 2 RJ-45 cages, with SFP equipment supplied separately.
When network communication is lost, the IC695PNS001 PROFINET scanner module helps manage the input and output states according to the specific configuration of the module. The module features 4 switched Ethernet ports and supports Daisy chain, star or ring topologies.
