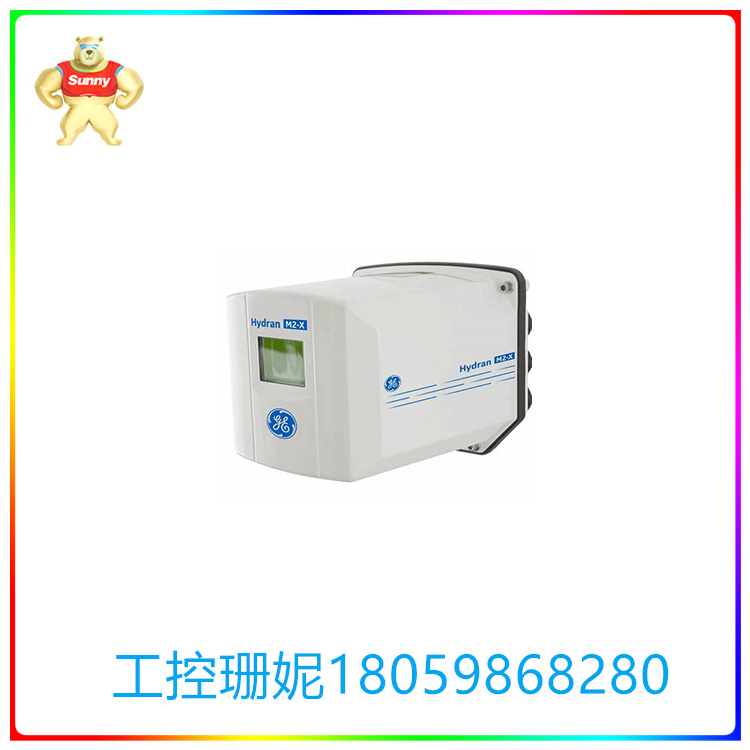

HYDRAN M2-X
HYDRAN M2-X

HYDRAN M2-X 单气体变压器 DGA 连续监测气体和湿度水平

HYDRANM2-X单气体变压器DGA连续监测气体和湿度水平【产品详情】通过延长传感器寿命来增强监控HydranM2-X是经过现场验证的HydranDGA监测解

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

HYDRAN M2-X 单气体变压器 DGA 连续监测气体和湿度水平




【产品详情】



通过延长传感器寿命来增强监控

Hydran M2-X 是经过现场验证的 Hydran DGA 监测解决方案系列的下一代产品,可连续监测气体和湿度水平,以提醒用户发生故障,并将意外停机的风险降至最低。M2-X建立在GE强大的领域专业知识之上,提供优化的、低维护的监控设备,并延长传感器寿命。


Hydran M2-X 还提供 UL 认证的 HazLoc 版本(部件号:M2-X-HZ),用于安装在位于指定为 I 类 2 区危险场所的变压器上


Hydran 传感器可作为传统的 Hydran 复合气体(H 2、CO、C 2 H 2、C2H4)传感器或分立式纯氢气 (H 2) 传感器使用。此外,它还能跟踪油中的水分(以 %RH 和 ppm 为单位),并与各种变压器油类型(标准矿物绝缘油和较新的天然和合成酯基流体)兼容。


主要优点


外形小巧,无活动部件,维护成本低

支持资产绩效管理 (APM) 软件分析,支持车队级部署

使用矿物绝缘油或酯基流体(天然和合成)对变压器进行状态监测

除了DGA监测之外,通过连接传感器,Hydran M2-X可以监测其他参数,如顶部油温、负载电流,并通过使用基于IEEE的数学模型,可以进一步了解不断变化的变压器状况

为 APM 策略提供关键数据,促进现场干预和维护活动的规划

M2-X-HZ 版本经过认证,适用于在正常操作条件下不太可能存在可燃浓度的易燃气体、蒸气或液体但仍然存在风险的危险场所。

特征


可在现场轻松升级,以接受模拟信号并监控其他关键变压器参数

计算绕组热点和其他IEEE变压器模型,以增强对变压器状况的诊断(取决于安装的传感器)

易于安装在单个现有变压器阀上,通常无需停电

集成显示屏和键盘,简化本地用户交互和数据可视化

内置湿度传感器提供油中水分测量,这对于识别纸张降解和垫圈泄漏至关重要

与GE广受赞誉的Perception™软件兼容,可下载、趋势分析和分析变压器健康数据

应用


大中型变压器

公用事业和工业变压器

输电变压器

HYDRAN M2-X 单气体变压器 DGA 连续监测气体和湿度水平


英文介绍





Enhance monitoring by extending sensor life

The Hydran M2-X, the next generation of the field-proven Hydran DGA monitoring solution family, continuously monitors gas and humidity levels to alert users to failures and minimize the risk of unplanned downtime. The M2-X builds on GE's strong domain expertise to deliver optimized, low-maintenance monitoring equipment and extended sensor life.


The Hydran M2-X also offers a UL certified HazLoc version (Part number: M2-X-HZ) for installation on transformers located in hazardous sites designated as Class I Zone 2


The Hydran sensor can be used as a conventional Hydran composite gas (H 2, CO, C2H 2, C2H4) sensor or as a separate pure hydrogen (H 2) sensor. In addition, it tracks the moisture in the oil (in %RH and ppm) and is compatible with various transformer oil types (standard mineral insulating oils and newer natural and synthetic estersester-based fluids).


Major advantage


Small shape, no moving parts, low maintenance costs

Support Asset Performance Management (APM) software analytics to support fleet level deployments

Condition monitoring of transformers using mineral insulating oils or ester based fluids (natural and synthetic)

In addition to DGA monitoring, by connecting sensors, the Hydran M2-X can monitor other parameters such as top oil temperature, load current, and by using IEEe-based mathematical models, can further understand the changing transformer condition

Provide key data for APM strategies to facilitate planning of on-site intervention and maintenance activities

The M2-X-HZ version is certified for use in hazardous locations where flammable gases, vapors or liquids in flammable concentrations are unlikely to be present under normal operating conditions, but where there is still a risk.

trait


Easily upgradeable in the field to accept analog signals and monitor other critical transformer parameters

Calculation of winding hot spots and other IEEE transformer models to enhance diagnosis of transformer condition (depending on installed sensor)

Easy to install on a single existing transformer valve, usually without power outages

Integrated display and keyboard simplify local user interaction and data visualization

A built-in humidity sensor provides moisture measurement in the oil, which is critical for identifying paper degradation and gasket leaks

Compatible with GE's acclaimed Perception™ software for download, trend analysis and analysis of transformer health data

Apply


Medium and large transformer

Utility and industrial transformers

Transmission transformer




HYDRAN M2-X 单气体变压器 DGA 连续监测气体和湿度水平
