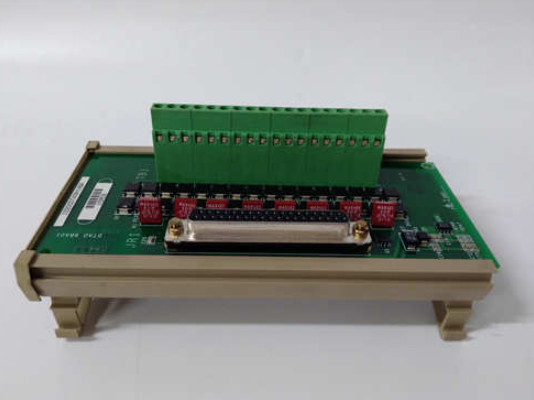

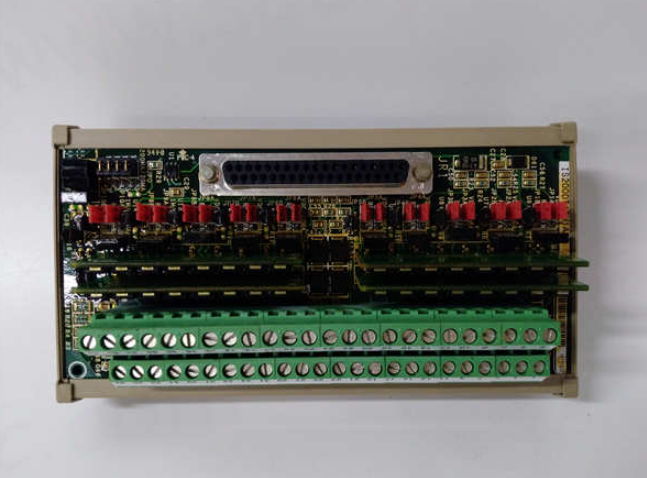

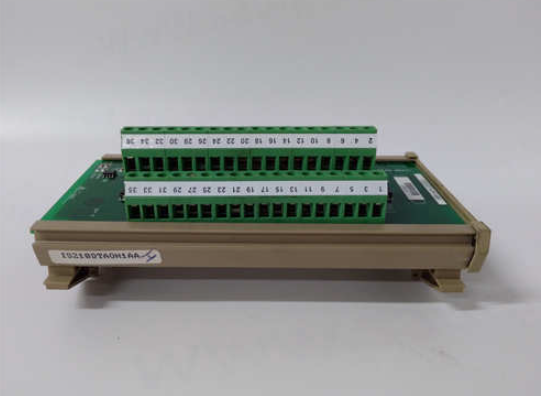

IS210DTAOH1AA 单工 DIN 导轨安装热电偶端子板

【产品详情】

Mark VI 单工 DIN 导轨安装热电偶端子板 IS210DTTCH1AA 必须与 VTCC 热电偶处理器板一起使用。用于将两块板连接在一起的连接器是一个 37 针电缆连接器，位于板的上部，靠近 DTTC 板标识。请注意，此电缆连接器与较大的 TBTC 板上的连接器相同。如果机柜中插入了多块板，则可以以节省机柜空间的方式安装电路板，节省机柜空间的最佳方法是垂直堆叠电路板。

当DTTC型号与其他温度监控功能一起使用时，它可以与TBTC/TRTD端子隔离板和DTAI终端盒板一起使用。需要注意的是，由于温度监控功能需要两块盒式终端板，因此该型号更有可能与DTAI终端盒板一起使用。在后备保护模块中使用该板时，可以监控多达 9 个热电偶输入。

以上所有信息均来自通用电气制作的两本不同手册。有关IS210DTTCH1AA板的大部分信息均摘自 Speedtronic Mark VI 涡轮机控制系列的 GEH-6421C 第二卷系统指南。GEH-6421C 手册中的信息位于第 9-34 页和第 9-35 页。另一本可以使用的手册是 GER-4193A Speedtronic Mark VI 涡轮机控制系统手册，该手册的信息见第四页的表三。这两本手册都可以在上面的“手册”选项卡下找到。

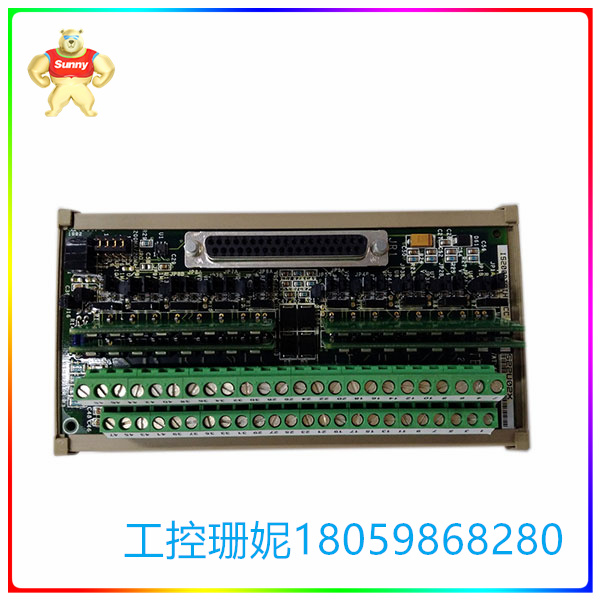

IS210DTAOH1AA 单工 DIN 导轨安装热电偶端子板

【英文介绍】

The Mark VI simplex DIN Rail mounting thermocouple terminal board IS210DTTCH1AA must be used with the VTCC thermocouple processor board. The connector used to join the two boards together is a 37-pin cable connector located on the upper part of the board, near the DTTC board sign. Note that this cable connector is the same as the connector on the larger TBTC board. If multiple boards are inserted into a cabinet, you can install the boards in a way that saves cabinet space. The best way to save cabinet space is to stack the boards vertically.

When the DTTC model is used with other temperature monitoring features, it can be used with TBTC/TRTD terminal isolators and DTAI terminal box boards. It should be noted that since the temperature monitoring function requires two box terminal boards, this model is more likely to be used with the DTAI terminal board. When the board is used in a backup protection module, up to 9 thermocouple inputs can be monitored.

All of the above information comes from two different manuals produced by General Electric. Most of the information about the IS210DTTCH1AA board is taken from the GEH-6421C Volume 2 System Guide for the Speedtronic Mark VI Turbine Control series. The information in the GEH-6421C manual is located on pages 9-34 and 9-35. Another available manual is the GER-4193A Speedtronic Mark VI Turbine Control System Manual, for which information is given in Table 3 on page 4. Both manuals can be found under the "Manuals" TAB above.

IS210DTAOH1AA 单工 DIN 导轨安装热电偶端子板
