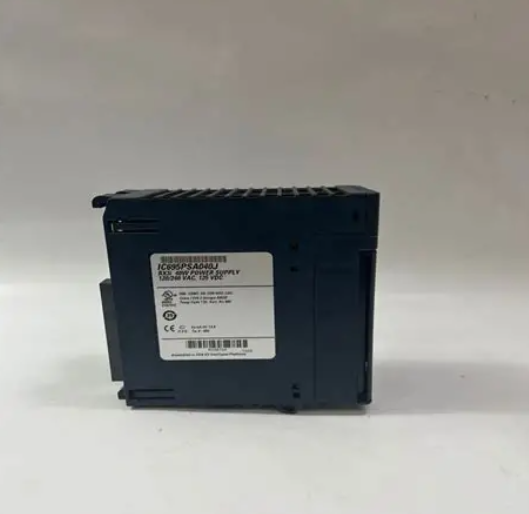

IC695PSA040J
IC695PSA040J

IC695PSA040J RX3i 电源 电源模块 连接到背板

IC695PSA040JRX3i电源电源模块连接到背板【产品详情】该IC695PSA040是GEFanuc/EmersonAutomation电源模块,是PAC

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

IC695PSA040J RX3i 电源 电源模块 连接到背板




【产品详情】

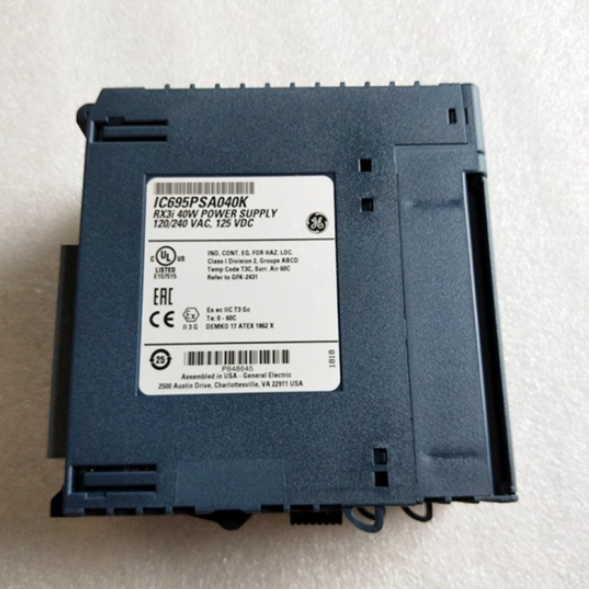

该IC695PSA040是GE Fanuc / Emerson Automation电源模块,是PACSystem RX3i产品系列的一部分。该电源的额定输出功率为 40 瓦,并提供三 (3) 个输出电压tage,例如 +5.1 VDC 输出;+24VDC 继电器输出,用于为外部电路供电,+3.3 VDC 用于 RX3i 系统内部使用,并将模块连接到背板。该电源与类似的 IC695 产品系列兼容。


该IC695PSA040与RX3i通用背板兼容。此电源不能与位于同一背板中的其他 RX3i 电源混合使用。超出IC695PSA040输出功率容量的 RX3i 模块必须安装在扩展背板中,因为 IC695PSA040 不支持增加容量和冗余。


该IC695PSA040通过提供 120/240VAC 或 125VDC 的额定电压以及 84-264 VAC 或 100 至 300 VDC 的电压范围来运行。它的输入功率要求为 70 瓦,能够承受 4 安培,最长持续时间为 250 毫秒。对于 24VDC 标称输出,模块的输出电压范围为 19.2 VDC 至 28.8 VDC;5.0 VDC 至 5.2 VDC 标称输出为 5.1 VDC,3.1 VDC 至 3.5 VDC 标称输出为 3.3VDC,输出电流为 0 -1.6 Amperes for 24VDC;0 - 6 安培用于 5.1 VDC 输出,0 - 9 安培用于 3.3 VDC 输出。

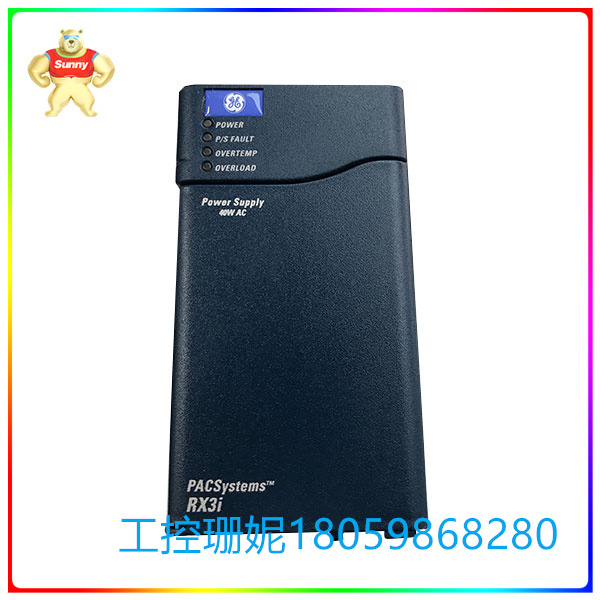

IC695PSA040配备四 (4) 个状态 LED 指示灯。这些 LED 指示灯是电源、P/S 故障、过热和过载。它还有一个开/关开关,位于电源单元的铰链门后面。该开关用于启用或禁用电源。该开关不会切断输入电源,并配有一个突出的选项卡,有助于防止意外打开/关闭开关。


GE Fanuc IC695PSA040模块是作为 RX3i PACSystems 系列的一部分制造的电源。它的额定功率为 120 伏交流电或 240 伏交流电和 125 伏直流电,功耗为 40 瓦。这款 GE Fanuc IC695PSA040 电源可与直流或交流输入电压源一起使用,工作电压范围为 100 至 300 伏直流电或 85 至 264 伏交流电。该电源带有 3 个输出,包括 3.3 伏直流电,用于内部与同一 IC695 系列的模块一起使用。它还具有 5.1 伏直流和 24 伏直流继电器电压的输出电压,用于为输出继电器模块上的电路供电。




IC695PSA040J RX3i 电源 电源模块 连接到背板



英文介绍





The IC695PSA040 is a GE Fanuc/Emerson Automation power module that is part of the PACSystem RX3i product family. The power supply has a rated output power of 40 watts and offers three (3) output voltage TAGs, e.g. +5.1 VDC output; The +24VDC relay output is used to power the external circuit and the + 3.3VDC is used inside the RX3i system and connects the module to the backplane. The power supply is compatible with the similar IC695 product family.


The IC695PSA040 is compatible with the RX3i universal backplane. This power supply cannot be mixed with other RX3i power supplies located in the same backplane. RX3i modules that exceed the output power capacity of the IC695PSA040 must be installed in the expansion backplane because the IC695PSA040 does not support increased capacity and redundancy.


The IC695PSA040 operates by providing a rated voltage of 120/240VAC or 125VDC and a voltage range of 84-264 VAC or 100 to 300 VDC. It has an input power requirement of 70 watts, is able to withstand 4 amps, and has a maximum duration of 250 milliseconds. For 24VDC nominal output, the output voltage range of the module is 19.2 VDC to 28.8 VDC; 5.0VDC to 5.2VDC nominal output is 5.1VDC, 3.1VDC to 3.5VDC nominal output is 3.3VDC, and output current is 0-1.6Amperes for 24VDC; 0-6 amps for 5.1VDC output, 0-9 amps for 3.3VDC output.


The IC695PSA040 is equipped with four (4) status LED indicators. These LED indicators are power, P/S failure, overheating and overload. It also has an on/off switch, located behind the hinged door of the power unit. This switch enables or disables the power supply. The switch does not cut off input power and comes with a prominent TAB that helps prevent the switch from being accidentally turned on/off.


The GE Fanuc IC695PSA040 module is a power supply manufactured as part of the RX3i PACSystems family. It is rated for 120 volts AC or 240 volts AC and 125 volts DC with a power consumption of 40 watts. The GE Fanuc IC695PSA040 power supply can be used with a DC or AC input voltage source and operates in a voltage range of 100 to 300 volts DC or 85 to 264 volts AC. The power supply comes with 3 outputs, including 3.3 volts DC, for internal use with modules from the same IC695 series. It also has output voltages of 5.1 V DC and 24 V DC relay voltages to power the circuits on the output relay module.




IC695PSA040J RX3i 电源 电源模块 连接到背板




其他型号推荐





BENTLY 3500-05-01-02-00-00-0105701-A-0302SCYC51010 58052515G  NI6DD1683-0BC5 SiemensMARPOSS 6830194203REM545BM222BAAA
BENTLY 3500-05-01-02-00-00-0105701-A-0325 WOODWARDSCYC51020 58052582H  NI1746-NI16IMARPOSS 6830195404REM610
VALMET AOU4 A41313505701-A-0326SCYC51040 58052680E  NIPM803F 3BDH000530R1Marposs 6830196105RER133
VALMET AIU8H A41318605701-A-0361SCYC51090 58053899E  NI1C31122G01MARPOSS 6830199404RET670
VALMET BOU8 D20053505701-A-05505AP920.1505-01     B&R1C31125G02Marposs 6830199507RETA-02
VALMET BIU84 A41314305704-A-0144Pacific Scientific 33VM52-000-291X00781H01LMARPOSS 6830199508REX521GHHPSH06G
VALMET PIC2 A43240L05704-A-0145AIP578   YOKOGAWA   FBM214Marposs 6830199704REX521GHHPSH07G
X20CP1484 B&R6104-WA-PDPMCI854A-eA 3BSE030221R2LID43.03  EMGMarposs 6830200101REX521GHHPSH50G
VALMET IPU2 D100789LWOODWARD   6410-001-C-N-NIS215UCVEM09AP0904HN LZS 1500-3FOXMarposs 6830200705RF533 3BSE014227R1
IC695NKT002 GEPACIFIC-SCIENTIFIC-6435-001-K-NMOTOROLA     MVME24341C31116G04Marposs 6830201905RF620
BENTLY 3500-15 127610-01Pacific Scientific 6440-001-K-NPLX32-EIP-SIE - Routeco1C31129G03Marposs 6830203706RFO810
BENTLY 3500-25 149369-017702 BH5-6314    zygoPW501 YOKOGAWA1C31132G01MARPOSS 6830204702RINT-5411
