IC200ALG260B
IC200ALG260B

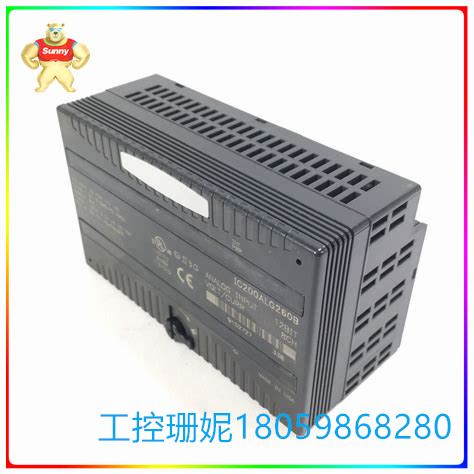

IC200ALG260B 模拟输入模块 接受单极和双极电压信号

IC200ALG260B模拟输入模块接受单极和双极电压信号【产品详情】IC200ALG260是来自VersamaxI/O平台的模拟输入模块。该模块是一个八(8)

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

IC200ALG260B 模拟输入模块 接受单极和双极电压信号




【产品详情】





IC200ALG260是来自 Versamax I/O 平台的模拟输入模块。该模块是一个八 (8) 通道输入模块,分别接受单极和双极电压信号,分别为 0 至 10V 和 +/-10VDC,以及 4-20 mA 等电流输入信号。该模块将接受的信号转换为分辨率为 12 位的数字数据。该模块无需外部电源即可运行。它的光隔离额定值为 250VAC 连续和 1500VAC(持续 1 分钟)。IC200ALG260可用的 LED 状态指示灯,包括内部电源 LED(INT、PWR、LED)和 OK LED。它在 5 VDC 时的最大背板电流消耗为 130 mA,内置内部功率损失诊断功能。该模块的可配置参数包括范围选择和模式选择。该模块在电压模式下的最大输入阻抗为 126 kOhms,在电流模式下的最大输入阻抗为 200 Ω。该模块的满量程精度典型值为 +/-0.3%,在 25 摄氏度下工作时最大满量程精度为 +/-0.5%,在 0-60 摄氏度下最大满量程精度为 +/-1%,分辨率为 4?A = 当前模式下的 8 个计数;双极性电压模式下为 2.5 mV = 8 个计数,单极性电压模式下为 2.5 mV = 8 个计数。该模块的通道间串扰抑制最小值为 30 dB。该模块支持单端接线配置,其中模拟测量以地线为基准。它对电磁干扰 (EMI) 的抵抗力较小,因此,建议在信号终止之前进行适当的噪声消除和信号调理。


IC200ALG260输入模块是GE Versamax PLC系列的GE Fanuc模拟量输入模块,可用作8个电流输入或8个电压输入的接口设备。它的所有 8 个输入都是单端的,它们排列在一组中。IC200ALG260模拟输入模块在 5 V 额定电压下从背板消耗 130 毫安的最大电流。该模块由背板中的电源供电。它不需要来自外部电源的电源,除非它连接了收发器设备。该模块也没有热降额功能。IC200ALG260模拟量输入模块上有 2 个 LED 指示灯。其中一个是绿色的 INT PWR LED,向操作员显示模拟现场侧电路有现场电源,另一个是绿色的 OK LED,向操作员显示模块具有背板电源。


GE Fanuc Versamax IC200ALG260模拟输入模块中现场侧电路的现场电源在内部产生。该模块在电压模式下运行时以及在电流模式下运行时的滤波器响应时间为 5 毫秒。IC200ALG260模拟量输入模块默认在电压模式下工作,但如果 PLC 或其预期应用需要,也可以将其配置为在电流模式下工作。该模块的额定电流为 4 至 20 毫安,其输入电压额定值为默认的 -10 至 10 伏直流双极电压或可配置的 0 至 10 伏单极电压。




IC200ALG260B 模拟输入模块 接受单极和双极电压信号



英文介绍





The IC200ALG260 is an analog input module from the Versamax I/O platform. The module is an eight (8) channel input module that accepts unipolar and bipolar voltage signals, 0 to 10V and +/-10VDC, respectively, and current input signals such as 4-20 mA. The module converts the received signal into digital data with a resolution of 12 bits. The module can operate without an external power supply. Its optical isolation rating is 250VAC continuous and 1500VAC (lasts 1 minute). IC200ALG260 Available LED status indicators, including internal power leds (INT, PWR, LED) and OK leds. It has a maximum backplane current consumption of 130 mA at 5 VDC and a built-in internal power loss diagnosis function. The configurable parameters of this module include range selection and mode selection. The module has a maximum input impedance of 126 kOhms in voltage mode and 200 Ω in current mode. The module has a typical full scale accuracy of +/-0.3%, a maximum full scale accuracy of +/-0.5% when operating at 25 degrees Celsius, a maximum full scale accuracy of +/-1% at 0-60 degrees Celsius, and a resolution of 4? A = 8 counts in the current mode; 2.5mV = 8 counts in bipolar voltage mode and 2.5mV = 8 counts in unipolar voltage mode. The module has a minimum interchannel crosstalk suppression of 30 dB. The module supports a single-ended wiring configuration, where the analog measurement is based on the ground wire. It is less resistant to electromagnetic interference (EMI), so proper noise cancellation and signal conditioning are recommended before the signal terminates.


The IC200ALG260 input module is the GE Fanuc analog input module of the GE Versamax PLC series, which can be used as an interface device with 8 current inputs or 8 voltage inputs. All eight of its inputs are single-ended and they are arranged in a group. The IC200ALG260 analog input module consumes a maximum current of 130 mA from the backplane at a rated voltage of 5 V. The module is powered by the power supply in the backplane. It does not require power from an external power source unless it is connected to a transceiver device. The module also has no heat derating function. There are two LED indicators on the IC200ALG260 analog input module. One is a green INT PWR LED that shows the operator that the analog field side circuit has field power, and the other is a green OK LED that shows the operator that the module has backplane power.


The field power supply for the field side circuit in the GE Fanuc Versamax IC200ALG260 analog input module is generated internally. The module has a filter response time of 5 milliseconds when running in voltage mode and when running in current mode. The IC200ALG260 analog input module operates in voltage mode by default, but can also be configured to operate in current mode if the PLC or its intended application requires it. The module has a current rating of 4 to 20 mA, and its input voltage rating is the default -10 to 10 volts DC bipolar voltage or configurable 0 to 10 volts unipolar voltage.
