SR745-W3-P5-G5-HI 变压器管理继电器 电力变压器

【产品详情】

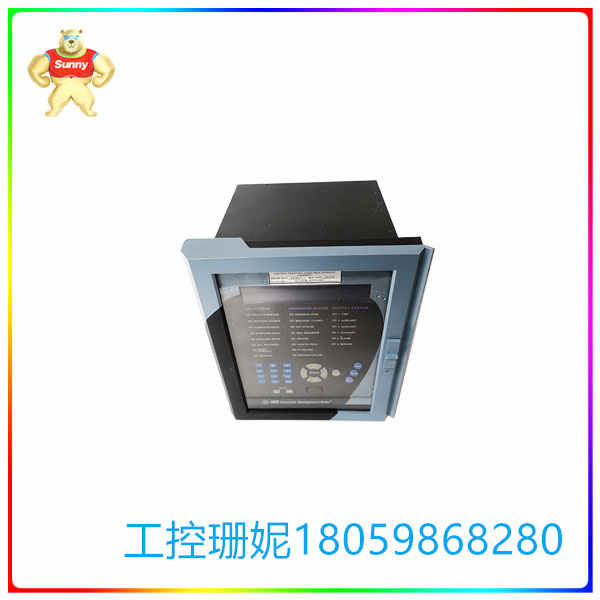

745-W3-P5-G5-HI-ALR是一款变压器管理继电器，是GE Multilin的745系列的一部分，用于保护和管理从小型到大型的电力变压器。该继电器在单个器件中提供了一系列功能，包括频率、百分比差分、过流和过励磁保护元件。它还能够监测单个谐波和总谐波失真。 745 具有许多自适应继电器功能，例如动态 CT 比率失配校正、自适应时间过流元件和自适应谐波约束。745-W3-P5-G5-HI-ALR 还能够进行仿真，旨在测试从计算机生成的波形数据推断出的继电器操作。然后，这些数据可以被数字化并下载以供进一步使用。

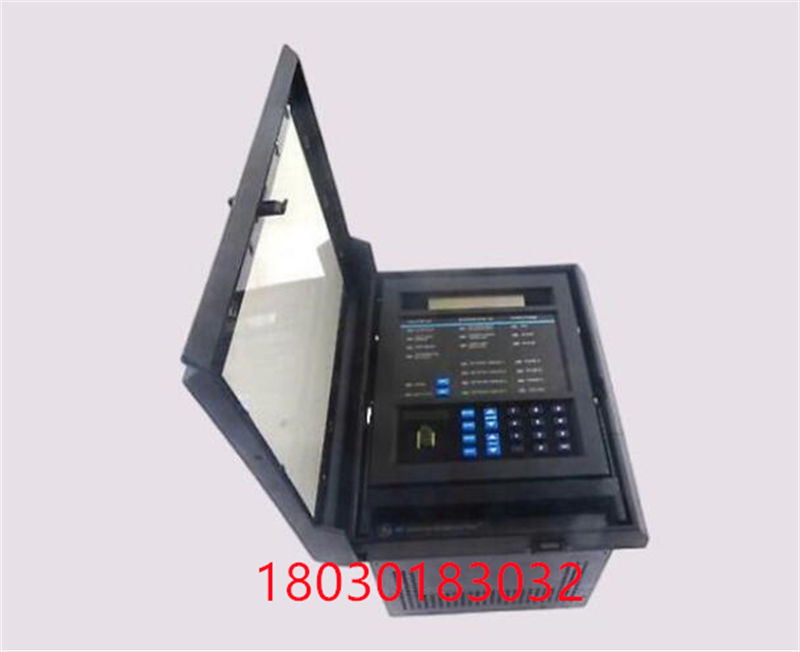

745-W3-P5-G5-HI-ALR 的 40 字符背光液晶显示屏和输入键盘允许用户手动调整设定值;该设备还具有一个 RS232 程序端口，可轻松连接运行 EnerVista 745 设置软件的计算机，以实现更方便的设定点管理。Enervista 745 软件充当单个程序，用于配置、维护、故障排除和监控继电器功能的运行。前面板包含许多 LED，用于指示系统在日常运行期间的各种状态。745-W3-P5-G5-HI-ALR 采用 745 SR 系列配置，可在操作期间提供机械保护，并具有防尘门。继电器提供 16 个逻辑输入和 8 个输出继电器。745 系列中的这种特殊的变压器管理继电器每相提供三个绕组，可在更高的控制功率下工作，90 至 300 VDC;70 至 265 VAC，48 至 62 Hz。此外，745-W3-P5-G5-HI-ALR 还包括模拟输入/输出、寿命损失和受限接地故障选项。

SR745-W3-P5-G5-HI 变压器管理继电器 电力变压器

【英文介绍】

The 745-W3-P5-G5-HI-ALR is a transformer management relay that is part of GE Multilin's 745 series for the protection and management of power transformers from small to large. The relay provides a range of functions in a single device, including frequency, percentage differential, overcurrent and overexcitation protection elements. It is also capable of monitoring individual harmonics and total harmonic distortion. The 745 has a number of adaptive relay features, such as dynamic CT ratio mismatch correction, adaptive time overcurrent elements, and adaptive harmonic constraints. The 745-W3-P5-G5-HI-ALR is also capable of simulations designed to test relay operation inferred from computer-generated waveform data. This data can then be digitized and downloaded for further use.

The 745-W3-P5-G5-HI-ALR's 40-character backlit LCD display and input keyboard allow users to adjust Settings manually; The device also has an RS232 program port that makes it easy to connect computers running EnerVista 745 setup software for more convenient set point management. The Enervista 745 software acts as a single program for configuring, maintaining, troubleshooting, and monitoring the operation of relay functions. The front panel contains a number of leds that indicate the various states of the system during daily operation. The 745-W3-P5-G5-HI-ALR is configured in the 745 SR series to provide mechanical protection during operation and has a dust door. The relay provides 16 logic inputs and 8 output relays. This special transformer management relay in the 745 series offers three windings per phase and can operate at higher control powers, 90 to 300 VDC; 70 to 265 VAC, 48 to 62 Hz. In addition, the 745-W3-P5-G5-HI-ALR includes analog input/output, life loss, and limited ground fault options.
