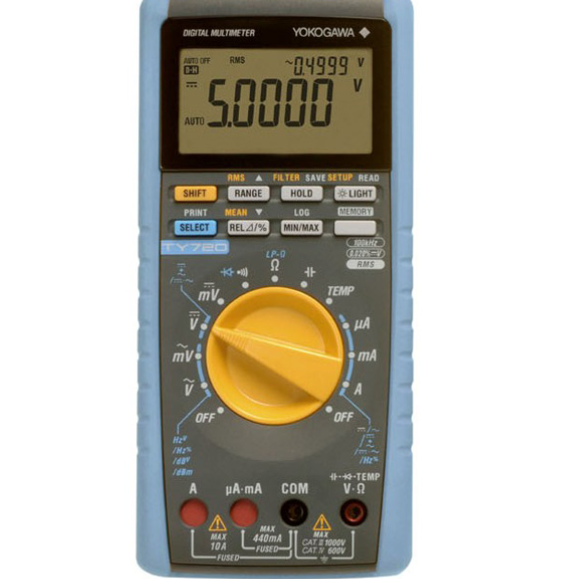

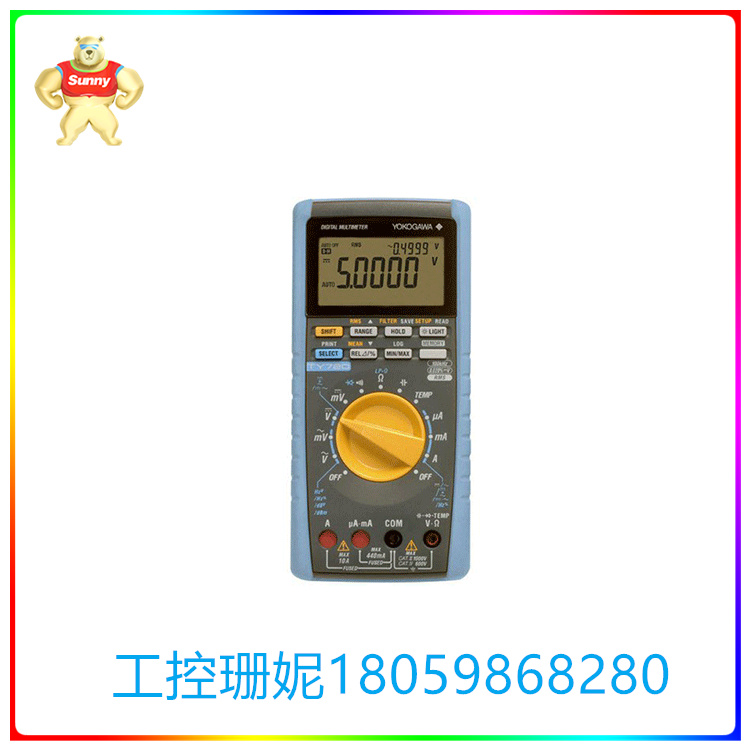

TY720 数字万用表 用于电子和工业应用的新功能
【产品详情】
4.5位(50,000计数双显屏幕,51段棒图显示),RMS类型测量功能:电压、电流、电阻、导通性检查、二极管测试、频率、电容、温度、低功率电阻
特点: 类别IV 600V,类别III 1000V,大容量内存(10,000个数据),USB通信功能,闭壳校准(用户校准功能)。
测量功能 DC电压,AC电压,DCV+ACV,DC电流,AC电流,DCA+ACA,电阻,频率,温度,电容,占空比,分贝计算,导通性检查,二极管测试,低功率电阻
对于AC电压/电流,可切换RMS/MEAN检测。
对于AC电压/电流,可打开/关闭低通滤波功能。
附加功能 数据保持/自动保持/峰值保持/量程保持、最大/最小/平均值、电阻、零电容、相对值和百分比值计算、手动模式存储、连续收录模式存储、自动关机、背光(白色LED)
显示 5位LCD:7段
数字显示:主显示区;[50,000]计数
子显示区;[50,000]计数
棒图显示:51段
极性指示符:极性为负时自动显示“-”
超量程指示符:“OL”
特点
高精度
基本精度为0.020%
真RMS测量
用于电子和工业应用的新功能
同时测量并显示DC和AC项目
可切换RMS/MEAN检测
低通滤波器功能(LPF)
AC50mV量程
低功率电阻测量,限TY720
全面支持数据管理
大容量连续收录模式存储器
TY720:10,000个数据
TY710:1,000个数据
USB通信,应用软件(DMM通信套件选件)
安全的设计和宽温度范围可用于恶劣环境
符合安全标准EN61010-1 1000V CAT.、600V CAT.
安全活门可防止将表笔错误地插入到电流测量端子上
工作温度范围-20~+55°C
存储温度范围-40~+70°C
闭壳校准
3年质保

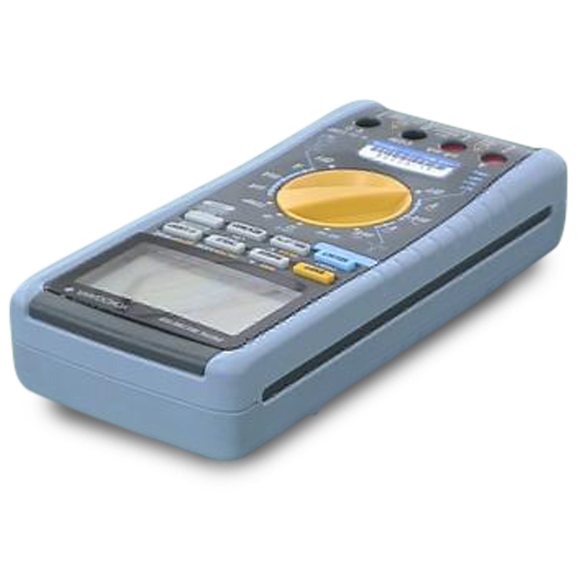

TY720 数字万用表 用于电子和工业应用的新功能
【英文介绍】
4.5-bit (50,000-count dual display, 51-segment bar diagram display), RMS type measurement functions: voltage, current, resistance, conductivity check, diode test, frequency, capacitance, temperature, low power resistance
Features: Class IV 600V, Class III 1000V, large memory (10,000 data), USB communication function, closed shell calibration (user calibration function).
Measurement functions DC voltage, AC voltage, DCV+ACV, DC current, AC current, DCA+ACA, resistance, frequency, temperature, capacitance, duty cycle, decibel calculation, conductivity check, diode test, low power resistance
For AC voltage/current, RMS/MEAN detection can be switched.
For AC voltage/current, the low-pass filtering function can be turned on/off.
Additional functions Data hold/Auto hold/Peak hold/range hold, Max/min/mean value, resistance, zero capacitance, relative value and percentage value calculation, manual mode storage, continuous capture mode storage, auto off, backlight (white LED)
Display 5-bit LCD: 7 segments
Digital display: main display area; [50,000] Count
Subdisplay area; [50,000] Count
Bar diagram shows: 51 segments
Polarity indicator: Automatically displays "-" when polarity is negative
Overrange indicator: "OL"
peculiarity
High precision
The basic accuracy is 0.020%
True RMS measurement
New features for electronic and industrial applications
Measure and display DC and AC items simultaneously
RMS/MEAN detection can be switched
Low pass Filter Function (LPF)
AC50mV range
Low power resistance measurement, limited to TY720
Full support for data management
Large capacity continuous entry mode memory
TY720:10,000 data
TY710:1,000 data
USB communication, application software (DMM communication suite option)
Safe design and wide temperature range for harsh environments
Comply with safety standards EN61010-1 1000V CAT., 600V CAT.
The safety valve prevents the meter from being incorrectly inserted into the current measuring terminal
Operating temperature range -20~+55°C
Storage temperature range -40 °C to +70°C
Closed shell calibration
3 years warranty
