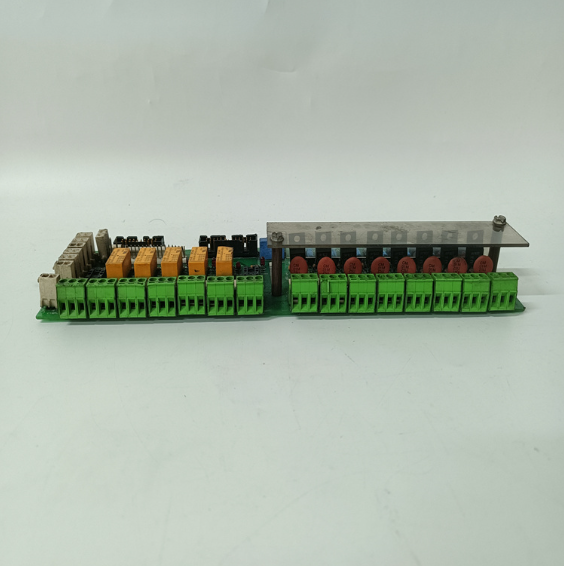

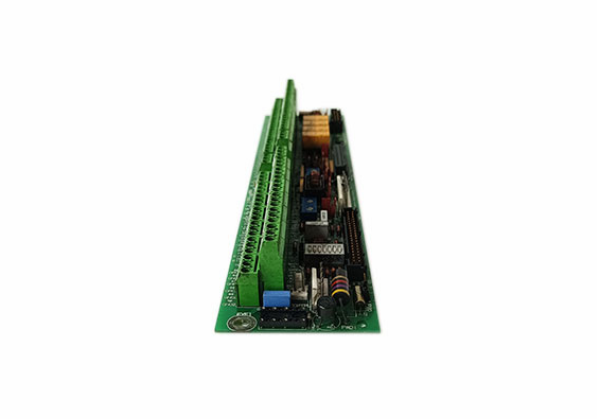

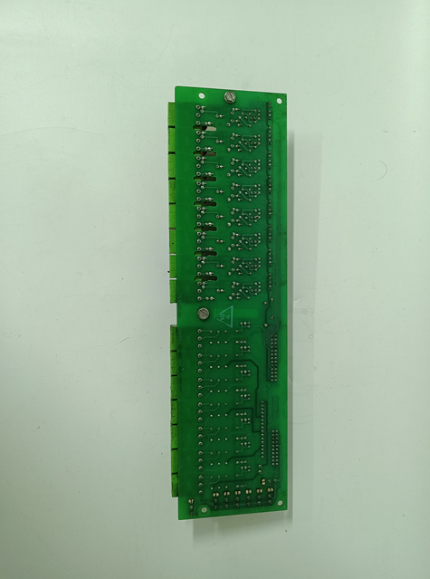

531X307LTBAJG1 设计为局域网 （LAN） 终端板 将电路板用作接口
【产品详情】
通用电气将 531X307LTBAJG1 设计为局域网 （LAN） 终端板。它位于 531X 系列替换板下。GE 系列的变频器和励磁机可以在其机柜中接受此卡。安装卡时，外部设备和控制驱动器之间提供接口系统。联锁、按钮和指示灯等外围设备可以将电路板用作接口。
安装 531X307LTBAJG1 板时，LAN 信号通过接口平台分配。安装电路板时，为驱动器提供 8 个可配置的控制输入插头。该板可接受 2 至 240 V 的额定输入电压，包括交流和直流电源。发送到电路板的输入电压被转换为控制板接受的 24 VDC 逻辑信号。该板产生的信号很容易通过LAN端子、驱动控制板和NTB端子板进行传输。该板的 7 个集成控制输出由低电流和低电压 C 型继电器触点连接器组成。
用户应满足设备制造商提供的安装参数。这些准则将防止对设备造成许多损坏。仅允许经过培训且有资格安装板的人员处理 531X307LTBAJG1 LAN 终端。概述接线程序的详细说明可在电路板的数据表和手册中找到。与 531X 系列的所有其他成员一样，此卡的技术支持最初由制造商通用电气提供。
531X307LTBAJG1 设计为局域网 （LAN） 终端板 将电路板用作接口
【英文介绍】
Ge designed the 531X307LTBAJG1 as a local Area Network (LAN) terminal board. It is located under the 531X Series replacement board. GE series frequency converters and exciters can accept this card in their cabinets. When installing the card, an interface system is provided between the external device and the control driver. Peripheral devices such as interlocks, buttons, and indicators can use the board as an interface.
When the 531X307LTBAJG1 board is installed, LAN signals are distributed through the interface platform. When mounting the board, 8 configurable control input plugs are provided for the driver. The board can accept rated input voltages from 2 to 240 V, including AC and DC power supplies. The input voltage sent to the board is converted into a 24 VDC logic signal accepted by the control board. The signals generated by the board are easily transmitted through LAN terminals, drive control boards, and NTB terminals. The board's seven integrated control outputs are made up of low current and low voltage C-relay contact connectors.
The user should meet the installation parameters provided by the equipment manufacturer. These guidelines will prevent much damage to the equipment. Only personnel trained and qualified to install boards are allowed to handle 531X307LTBAJG1 LAN terminals. Detailed instructions outlining the wiring procedure can be found in the board's data sheet and manual. As with all other members of the 531X series, technical support for this card was initially provided by manufacturer General Electric.
531X307LTBAJG1 设计为局域网 （LAN） 终端板 将电路板用作接口
