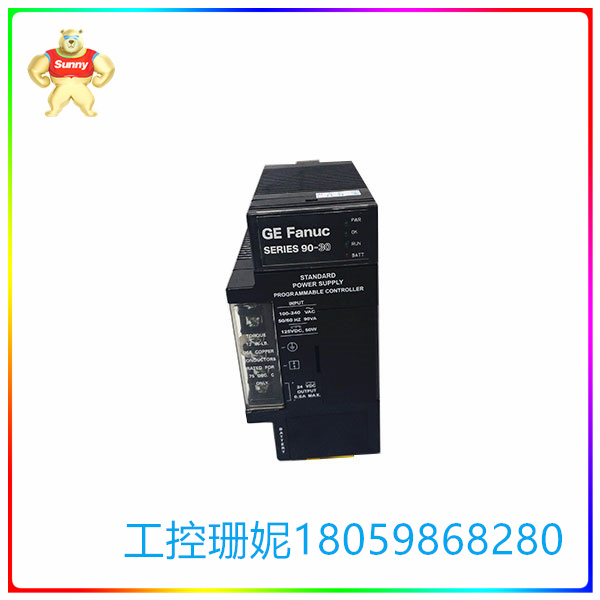

IC693PWR321Z 高容量电源模块与 I/O 模块
【产品详情】
特征:
内置智能开关熔断
限流功率电平
自动量程
GE Fanuc IC693PWR 系列 90-30 高容量电源模块与 I/O 模块一样简单卡入,可与任何 90-30 系列 CPU 配合使用。每个版本都提供自动量程,因此无需为不同的输入功率水平设置跳线,并且它们是限流的,因此直接短路将关闭电源以避免损坏硬件。90-30 系列电源与 CPU 的性能密切相关,以实现单工、故障安全和容错。高级诊断和内置智能开关熔断器是电源的其他安全功能之一。
GE Fanuc IC693PWR321模块是 90-30 系列的电源模块。它为 Fanuc 90-30 系列 PLC 的处理能力提供动力。它位于底板最左侧的插槽中。它的额定功率为 30 瓦。它可以与交流和直流电源一起使用。设备的输入电压源必须具有 85 至 264 伏交流电或 100 至 300 伏直流电的电压范围。它提供不同的电压输出:5 伏直流电、为电路供电的 24 伏直流电压,以及某些模块用于提供外部电源的隔离式 24 伏直流电压电源。它的浪涌电流峰值为 4 安培,最大 250 毫秒。这款可编程控制器电源设备结构坚固,并配有电池。
IC693PWR321模块与任何CPU型号完全兼容。电源模块已通过 cULus 和 CE 标准认证。它被设计为在 1 类 2 级环境中工作。IC693PWR321模块具有电源限制功能,可在发生直接短路时立即保护硬件。电源装置配有 6 个端子,用于操作员连接。它具有增强的诊断功能,可跟踪操作员的所有事件和更新。作为保护措施,在电源设备内部内置了智能开关熔断器。为了进行通信,IC693PWR321模块配备了一个 RS-485 串行端口。串口可用于连接不同的外围设备和CPU/计算机。
该IC693PWR321能够由交流或直流电源供电。该电源的交流输入电压范围为 85-264 VAC,标称值为 120-240VAC。对于直流电源电压,可接受的电压范围为 100-300 VDC,标称值为 125 VDC。它的输入功率要求为 90 VA(交流输入)和 50W(直流输入)。它可以承受 4 A 的峰值浪涌电流,持续时间为 250 ms。
IC693PWR321输出功率能力包括 5 VDC 和 24VDC 继电器操作的最大 15 瓦;24VDC 继电器最大 15 瓦,24VDC 隔离时最大 20 瓦。该电源的输出电压为 5.0 VDC 至 5.2 VDC,标称值为 5.1 VDC;24VDC至28VDC用于24VDC继电器;21.5VDC 至 28VDC,用于隔离式 24VDC 操作。它具有 6.4VDC 至 7VDC 的过压保护和 4A 的过流保护,最长保持时间为 20 ms。 该IC693PWR321还具有一 (1) 个 9 针 sub-D 连接器 RS485 兼容串行端口。
IC693PWR321Z 高容量电源模块与 I/O 模块
【英文介绍】
Features:
The built-in intelligent switch is blown
Current limiting power level
Automatic range
The GE Fanuc IC693PWR Series 90-30 High capacity power module is as easy to plug in as the I/O module and can be used with any 90-30 series CPU. Each version offers an automatic range, so there is no need to set jumpers for different input power levels, and they are current-limiting, so a direct short circuit will turn off the power to avoid damaging the hardware. The 90-30 series power supply is closely related to the performance of the CPU to achieve simplex, fault safety and fault tolerance. Advanced diagnostics and built-in smart switching fuses are among the other safety features of the power supply.
The GE Fanuc IC693PWR321 is a power module of the 90-30 series. It powers the processing power of the Fanuc 90-30 series PLC. It is located in the leftmost slot of the bottom plate. It is rated at 30 watts. It can be used with both AC and DC power supplies. The input voltage source of the device must have a voltage range of 85 to 264 volts AC or 100 to 300 volts DC. It offers different voltage outputs: 5 volts DC, 24 volts DC to power the circuit, and isolated 24 volts DC for some modules to provide external power. It has a peak surge current of 4 amps and a maximum of 250 milliseconds. This programmable controller power device is robust and comes with a battery.
The IC693PWR321 module is fully compatible with any CPU model. The power module has passed the cULus and CE standards. It is designed to work in a Class 1 level 2 environment. The IC693PWR321 module has a power limiting function that immediately protects the hardware in the event of a direct short circuit. The power unit is equipped with 6 terminals for operator connections. It has enhanced diagnostic capabilities to track all events and updates for the operator. As a protective measure, a smart switching fuse is built into the power supply unit. For communication, the IC693PWR321 module is equipped with an RS-485 serial port. Serial ports can be used to connect different peripherals and cpus/computers.
The IC693PWR321 can be powered by AC or DC power. The AC input voltage range of this power supply is 85-264 VAC and the nominal value is 120-240VAC. For DC supply voltages, the acceptable voltage range is 100-300 VDC, with a nominal value of 125 VDC. Its input power requirements are 90 VA (AC input) and 50W (DC input). It can withstand A peak surge current of 4 A for a duration of 250 ms.
The IC693PWR321 output power capability includes 5 VDC and 24VDC relay operation with a maximum of 15 watts; 24VDC relay maximum 15 watts, 24VDC isolation maximum 20 watts. The output voltage of the power supply is 5.0 VDC to 5.2 VDC, and the nominal value is 5.1 VDC. 24VDC to 28VDC for 24VDC relays; 21.5VDC to 28VDC for isolated 24VDC operation. It has overvoltage protection from 6.4VDC to 7VDC and overcurrent protection from 4A for a maximum hold time of 20 ms. The IC693PWR321 also has one (1) 9-pin sub-D connector RS485 compatible serial port.
