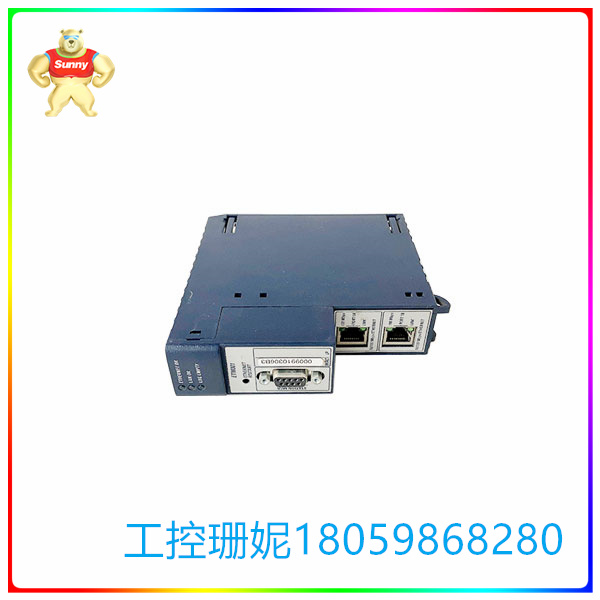

IC695ETM001-DG 以太网发射器模块 实现以太网连接

【产品详情】

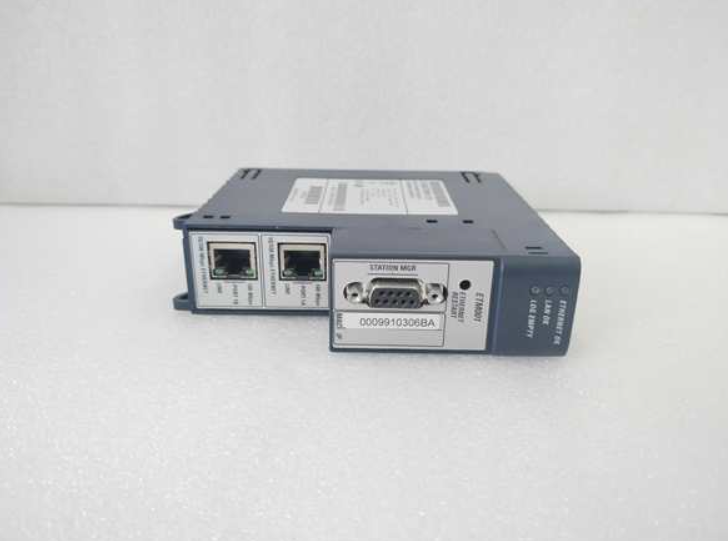

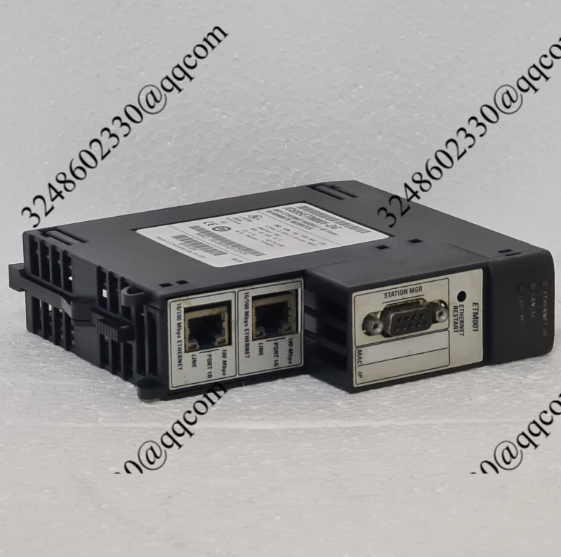

该IC695ETM001是由 GE 制造的 PACSystem Rx31 模块。该IC695ETM001专门是一个两 （2） 端口以太网发射器模块，可实现以太网连接，支持 10/100 Mbps 传输速率和自动协商功能。

IC695ETM001 是适合 RX3i 插槽的单插槽模块。它使 PACSystem 能够与其他控制器平台（如 90 系列和 VersaMax 控制器）进行通信。该模块支持四层 TCP/IP （Internet） 堆栈上的服务请求传输协议 （SRTP）、Modbus TCP 和以太网全局数据 （EGD） 协议。

该以太网发送器模块支持通过以太网全局数据进行定期数据交换，实现EGD命令来读取和写入控制器。它还支持使用串行实时传输协议 （SRTP） 和 SRTP 通道的 TCP/IP 服务，能够充当 MODBUS TCP 服务器和 MODBUS TCP 客户端。它有一个嵌入式开关，可以配置为自动协商、检测、速度和交叉检测。该模块还可用于在以太网 TCP/IP 上与 SNTP 时间服务器进行时间同步。

该IC695ETM001的以太网处理器速度为 200 MHz。它配有 LED 状态指示灯，例如以太网 OK、LAN OK、LOG EMPTY、单个端口和速度 LED 状态指示灯。

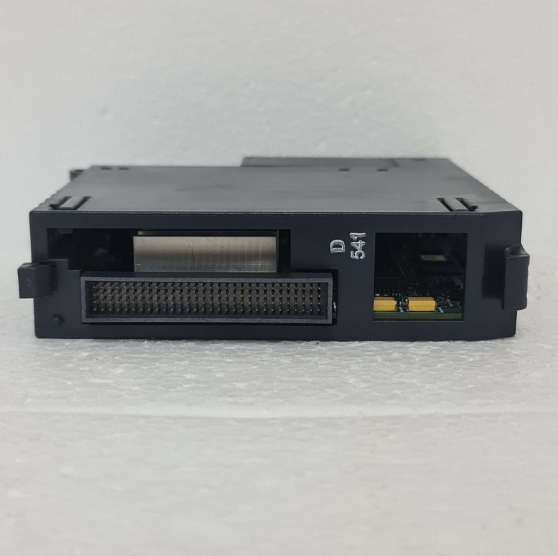

安装IC695ETM001时，兼容的背板为 IC695CHS007、CHS012 或 CHS016。它与除 CPE400 之外的任何其他 PACSystem RX3i 模块兼容。它理想地安装在未通电的 RX3i 背板上，但是，支持在通电下插入，甚至在处理器处于 RUN 模式时插入。这也称为热插拔功能。要启用热插拔，必须安装固件版本 2.51。

IC695ETM001模块上还提供 RS-232 串行端口，支持 1200 bps 至 115200 bps 的数据速率。该模块的内置工作站管理器功能可以通过串行和以太网连接进行访问，并提供监控访问。通过 Station Manager 提供的服务包括用于轮询和控制 station 的命令、用于监控统计信息、日志和配置参数的访问以及密码安全性。IC695ETM001模块可用于通过SNTP协议同步EGD交换的时间戳。IC695ETM001模块的功能包括 PLC 配置和编程功能、通过 EGD 的定期数据交换、通过 SRTP 的 TCP/IP 通信以及诊断和站点管理工具。IC695ETM001模块可以安装在任何空的 RX3i 插槽中。IC695ETM001模块可热插拔。模块固件可以通过GE Fanuc提供的软件工具在现场进行升级。

IC695ETM001-DG 以太网发射器模块 实现以太网连接

【英文介绍】

The IC695ETM001 is a PACSystem Rx31 module manufactured by GE and recently acquired by Emerson. The IC695ETM001 is specifically a two (2) port Ethernet transmitter module that enables Ethernet connectivity, supports 10/100 Mbps transfer rates and auto-negotiation capabilities.

The IC695ETM001 is a single-slot module that fits the RX3i slot. It enables PACSystem to communicate with other controller platforms such as the 90 Series and VersaMax controllers. The module supports the Service Request Transfer Protocol (SRTP), Modbus TCP, and Ethernet Global Data (EGD) protocols on the Layer 4 TCP/IP (Internet) stack.

The Ethernet transmitter module supports periodic data exchange over Ethernet global data and implements EGD commands to read and write to the controller. It also supports TCP/IP services using Serial Real-time Transport Protocol (SRTP) and SRTP channels, and is able to act as both a MODBUS TCP server and a MODBUS TCP client. It has an embedded switch that can be configured for auto-negotiation, detection, speed, and cross detection. The module can also be used for time synchronization with the SNTP time server over Ethernet TCP/IP.

The IC695ETM001 has an Ethernet processor speed of 200 MHz. It comes with LED status indicators such as Ethernet OK, LAN OK, LOG EMPTY, single port and speed LED status indicators.

When installing the IC695ETM001, the compatible backplane is the IC695CHS007, CHS012, or CHS016. It is compatible with any other PACSystem RX3i module except the CPE400. It is ideally installed on an unpowered RX3i backplane, but supports plugging in when powered on, even when the processor is in RUN mode. This is also known as the hot swap function. To enable hot swap, firmware version 2.51 must be installed.

An RS-232 serial port is also available on the IC695ETM001 module, supporting data rates from 1200 bps to 115200 bps. The module's built-in workstation manager feature can be accessed via serial and Ethernet connections and provides monitoring access. Services provided through Station Manager include commands for polling and controlling the station, access for monitoring statistics, logs, and configuration parameters, and password security. The IC695ETM001 module can be used to synchronize the timestamp of the EGD exchange over the SNTP protocol. The IC695ETM001 module features PLC configuration and programming capabilities, regular data exchange via EGD, TCP/IP communication via SRTP, and diagnostic and site management tools. The IC695ETM001 module can be installed in any empty RX3i slot. The IC695ETM001 module is hot swappable. The module firmware can be upgraded on-site through software tools provided by GE Fanuc.
