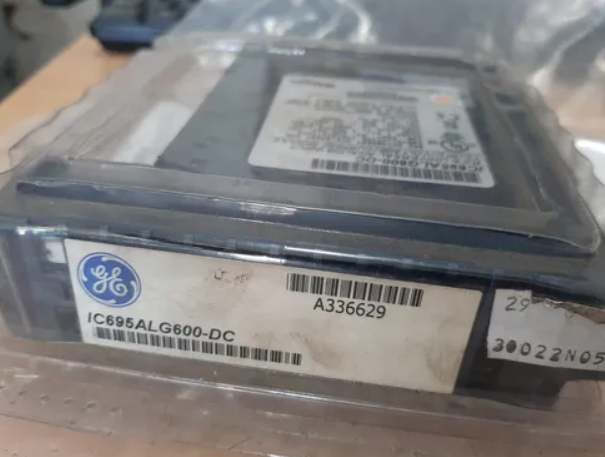

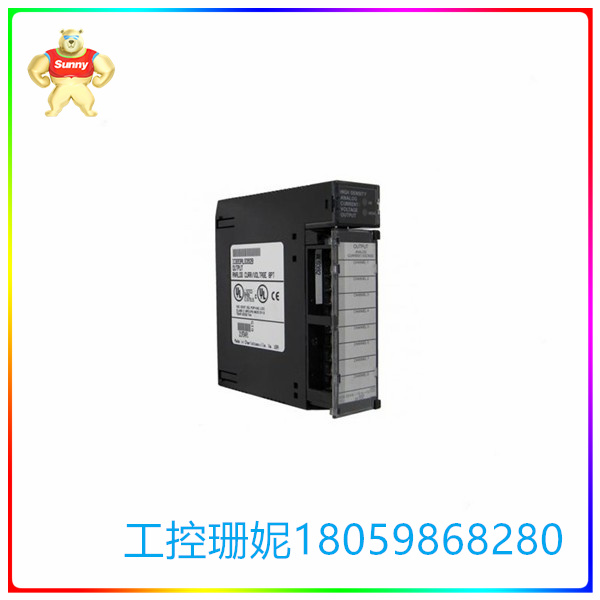

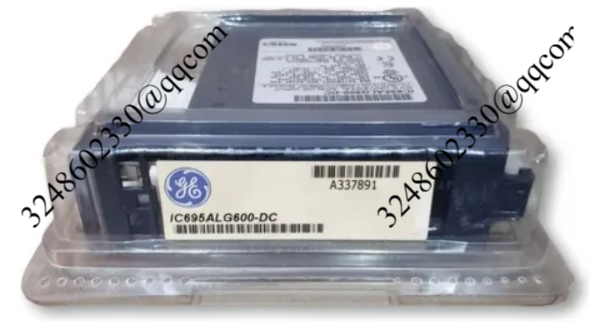

IC695ALG600-CC 用模拟输入模块 可针对每个通道进行单独配置

【产品详情】

该IC695ALG600是 PACSystem RX3i 可编程自动化控制器 （PAC） 通用模拟输入模块，以前由 GE 智能平台 （GE IP） 制造，现在隶属于艾默生自动化。该模块具有八 （8） 个通用通道和两 （2） 个冷端补偿 （CJC） 通道。该模块有两 （2） 组，每组四 （4） 个输入，可配置为电流、电压、热电偶、RTD 和电阻输入的任意组合。该模块支持 0–20 mA、4–20 mA、+20 mA 电流信号;+50mV、+150 mV、0–5 V、1–5 V、0–10 V、+10V 电压信号;0 至 250 / 500 / 1000 / 2000 / 3000 / 4000 欧姆电阻信号;PT 385 / 3916、N 618 / 672、NiFe 518、CU 426 RTD 传感器;B、C、E、J、K、N、R、S、T 热电偶输入

技术规格

模块类型： 通用模拟

输入数量： 8 一般用途

内部功率： 3.3V：350mA;5V：400 毫安

插槽数量： 1 （单插槽）

范围（欧姆）： 0 至 250/500/1000/2000/3000/4000

功耗： 最大 5.4W

IC695ALG600热电偶输入模块是GE Fanuc制造的通用模拟输入模块。它有 8 个通用输入通道和 2 个 CJC 通道。所有输入都分为 2 个相等的组。IC695ALG600热电偶输入模块提供 6 个模数滤波器频率，可针对每个通道进行单独配置。其诊断功能具有板载错误检查、开路检测、短路检测和模块故障报告。该模块的一些功能包括完全自动校准、板载错误检查、用户定义的缩放、模块故障报告、接线端子插入或移除检测、可配置软件滤波器和可配置中断。它提供摄氏度或华氏度的温度读数。

IC695ALG600热电偶输入模块与CIMPLICITY机器版软件兼容。它是一个完全由软件配置的模块，可提供简单的配置和调试过程。它提供 2 组隔离的输入通道。模块内的功耗为 5.4 瓦。它提供浮点用户缩放。该IC695ALG600模块可以安装在 RX3i 通用背板中。但是，它不能位于扩展或远程背板中。其输入通道组可单独配置为热电偶输入、RTD输入、电阻输入或电流和电压输入。它提供 11 到 16 位的输入分辨率。模块的输入分辨率取决于 A/D 滤波器频率和配置范围。建议在热电偶输入配置中使用CJC传感器。它可以自动检查接线端子是否存在。该模块带有闪存，便于将来升级。

IC695ALG600-CC 用模拟输入模块 可针对每个通道进行单独配置

【英文介绍】

The IC695ALG600 is a PACSystem RX3i Programmable Automation Controller (PAC) universal analog input module formerly manufactured by GE Intelligence Platforms (GE IP) and now part of Emerson Automation. The module has eight (8) general purpose channels and two (2) cold end compensation (CJC) channels. The module has two (2) groups of four (4) inputs each that can be configured for any combination of current, voltage, thermocouple, RTD, and resistance inputs. The module supports 0-20 mA, 4-20 mA, +20 mA current signals; +50mV, + 150mV, 0-5V, 1-5V, 0-10V, +10V voltage signal; 0 to 250/500/1000/2000/3000/4000 ohm resistance signal; PT 385/3916, N 618/672, NiFe 518, CU 426 RTD sensors; B, C, E, J, K, N, R, S, T thermocouple input

Technical specification

Module type: Universal simulation

Input quantity: 8 General purpose

Internal power: 3.3V: 350mA; 5V: 400 MA

Number of slots: 1 (single slot)

(ohm) : range is 0 to 250/500/1000/2000/3000/4000

Power consumption: Maximum 5.4W

The IC695ALG600 thermocouple input module is a general purpose analog input module manufactured by GE Fanuc. It has 8 universal input channels and 2 CJC channels. All inputs are divided into 2 equal groups. The IC695ALG600 thermocouple input module offers 6 modular filter frequencies that can be configured individually for each channel. Its diagnostic functions include on-board error check, open circuit detection, short circuit detection and module fault report. Some of the module's features include fully automatic calibration, onboard error checking, user-defined scaling, module fault reporting, terminal insertion or removal detection, configurable software filters, and configurable interrupts. It provides temperature readings in degrees Celsius or Fahrenheit.

The IC695ALG600 thermocouple input module is compatible with CIMPLICITY machine version software. It is a fully software-configured module that provides a simple configuration and debugging process. It provides two sets of isolated input channels. The power consumption in the module is 5.4 watts. It provides floating-point user scaling. The IC695ALG600 module can be installed in the RX3i universal backplane. However, it cannot be located in an extension or remote backplane. The input channel group can be individually configured as thermocouple input, RTD input, resistance input, or current and voltage input. It provides input resolution of 11 to 16 bits. The input resolution of the module depends on the A/D filter frequency and configuration range. It is recommended to use CJC sensors in thermocouple input configurations. It can automatically check whether the terminal is present. The module comes with flash memory for future upgrades.

IC695ALG600-CC 用模拟输入模块 可针对每个通道进行单独配置
