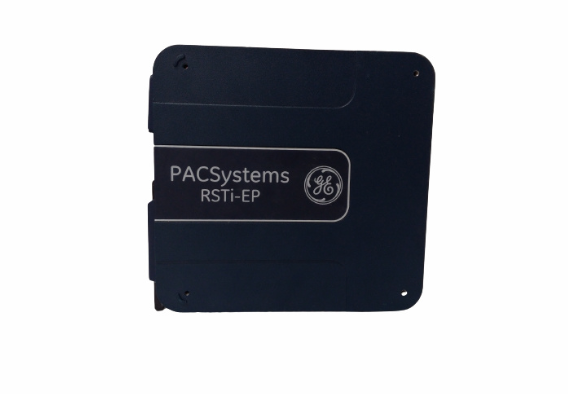

EPSCPE100-ABAC 增强型性能独立1GHz可编程控制器

【产品详情】

ACSystems*RSTi EP EPSCPE100是一款增强型性能独立1GHz可编程控制器配备1MB用户内存和四个以太网端口以运行实时确定性控制应用程序。

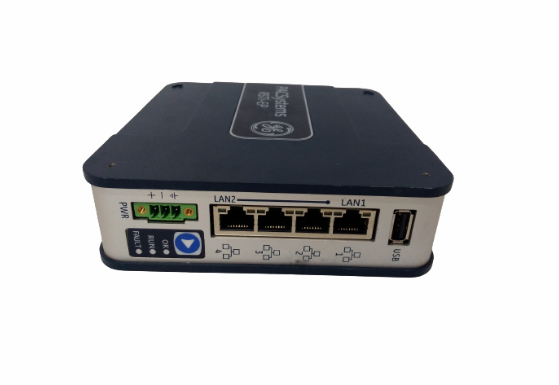

LAN1专用于高速以太网，LAN2由3个交换端口组成，可配置为嵌入式端口

以太网控制器或嵌入式PROFINET控制器，它提供PROFINET功能，只支持简单的操作模式。它是支持分布式I/O的独立PLC。从现在开始，在文档的其余部分，这个控制器将被称为CPE100。

LAN1是专用于高速以太网和LAN2，由3个可配置为嵌入式的交换端口以太网控制器或嵌入式PROFINET控制器，它提供PROFINET功能并支持仅单工操作模式。

它是一个独立的PLC支持分布式I/O。从现在起，在该控制器将被称为CPE100。CPE100通过以太网进行编程和配置通过通用电气的Proficy Machine Edition（PME）软件。它可以控制/处理多达2K个I/O点

EPSCPE100-ABAC 增强型性能独立1GHz可编程控制器

【英文介绍】

ACSystems*RSTi EP EPSCPE100 is an enhanced performance independent 1GHz programmable controller equipped with 1MB of user memory and four Ethernet ports to run real-time deterministic control applications.

PACSystems* RSTi-EP EPSCPE100 is an enhanced 1GHz stand-alone programmable controller with 1MB of user memory and four Ethernet ports to run real-time deterministic control applications. LAN1 is dedicated to high-speed Ethernet, and LAN2 consists of 3 switch ports that can be configured as embedded ports

Ethernet controller or embedded PROFINET controller, which provides PROFINET functionality and supports only simple modes of operation. It is a standalone PLC that supports distributed I/O. From now on, in the rest of the document, this controller will be called the CPE100.

LAN1 is dedicated to high-speed Ethernet and LAN2, consisting of 3 switch port Ethernet controllers or embedded PROFINET controllers that can be configured as embedded, which provides PROFINET functionality and supports simplex only mode of operation.

It is a standalone PLC that supports distributed I/O. From now on, the controller will be known as the CPE100. The CPE100 is programmed and configured over Ethernet via GE's Proficy Machine Edition (PME) software. It can control/process up to 2K I/O points

EPSCPE100-ABAC 增强型性能独立1GHz可编程控制器
