DS200LDCCH1AGA 驱动控制 LAN 通信板 提供主驱动器和I/O控制功能
【产品详情】

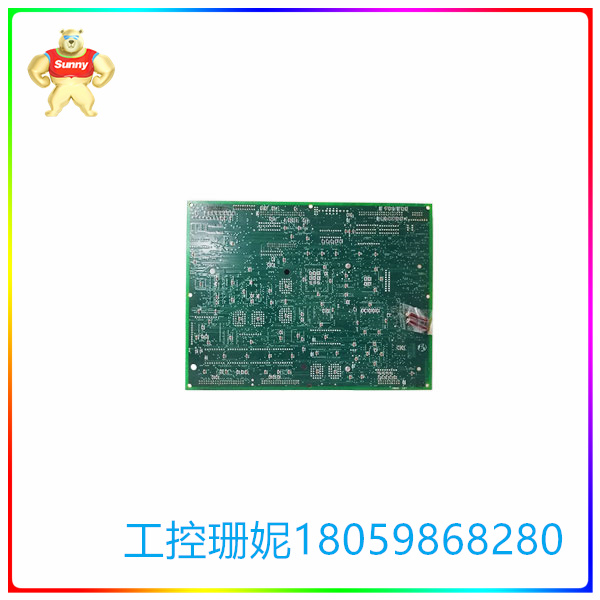

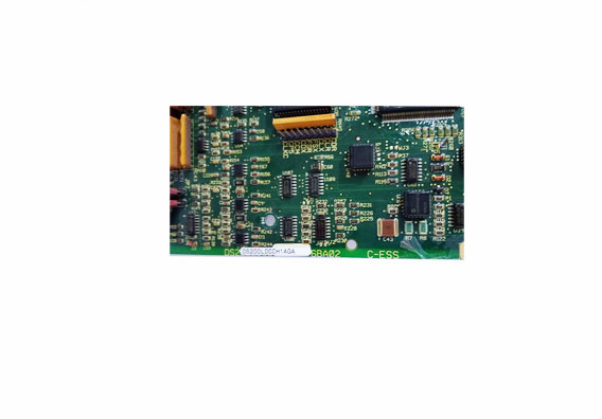

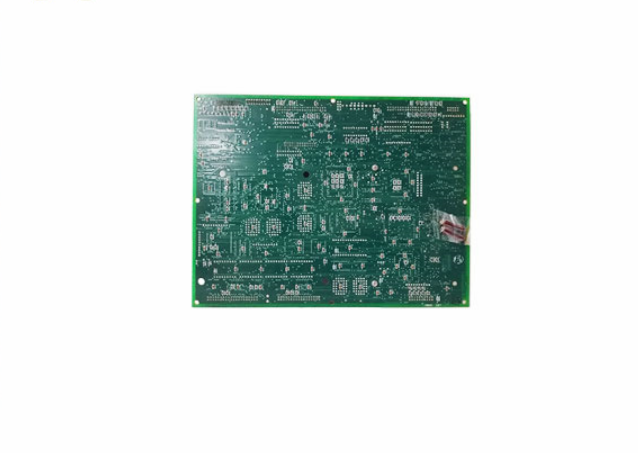

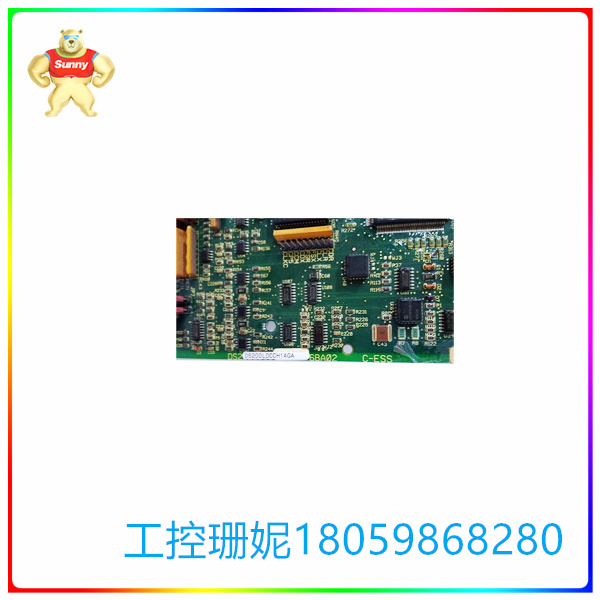

通用电气开发了DS200LDCCH1AGA卡,用作驱动器控制和局域网 (LAN) 通信板。该卡安装在 Mark V 系列替换驱动板中,与 GE 品牌 DIRECTO-MATIC 2000 驱动器和励磁器兼容。当安装在驱动器中时,该板为驱动器提供一系列驱动器和 I/O 控制功能。
DS200LDCCH1AGA通信卡内置四个微处理器。LAN 控制处理器 (LCP) 可用于接受馈送到驱动器的五种不同总线类型。驱动器控制处理器 (DCP) 也可用于处理模拟和数字 I/O 转换。DCP 还能够控制和转换外设 I/O 设备,例如编码器和定时器。电机控制处理器 (MCP) 用于处理发送到驱动器的数字 I/O。如果计算需要 DCP 无法提供的额外处理能力,则协电机处理器 (CMP) 将提供完成这些功能所需的额外能力。该板配有一个字母数字键盘,用于系统编程和诊断目的。
DS200LDCCH1AGA模型具有现场可调参数;其中之一是EEPROM U9,它将被编程为下载正确操作LDCC单元所需的驱动器配置值。EEPROM U9 固件可以通过将 U9 从另一个驱动器控制板上移开,直接传输到 LDCC 单元。
DS200LDCCH1AGA 驱动控制 LAN 通信板 提供主驱动器和I/O控制功能
【英文介绍】
Ge developed the DS200LDCCH1AGA card for use as a driver control and local area network (LAN) communication board. The card is installed in the Mark V Series replacement driver board and is compatible with GE brand DIRECTO-MATIC 2000 drives and exciters. When installed in a drive, the board provides the drive with a range of drive and I/O control functions.
DS200LDCCH1AGA communication card has four microprocessors inside. The LAN Control Processor (LCP) can be used to accept feeds to the drive in five different bus types. The drive control Processor (DCP) can also be used to handle analog and digital I/O conversions. DCP is also able to control and convert peripheral I/O devices, such as encoders and timers. The motor control processor (MCP) is used to process the digital I/O sent to the drive. If computing requires additional processing power that a DCP cannot provide, a comotor processor (CMP) will provide the additional power needed to accomplish these functions. The board is equipped with an alphanumeric keyboard for system programming and diagnostic purposes.
DS200LDCCH1AGA model has field adjustable parameters. One of these is the EEPROM U9, which will be programmed to download the drive configuration values needed to properly operate the LDCC unit. The EEPROM U9 firmware can be transferred directly to the LDCC unit by removing the U9 from the other driver control board.
