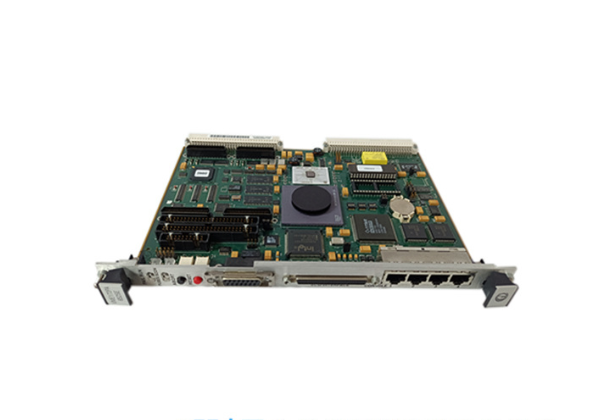

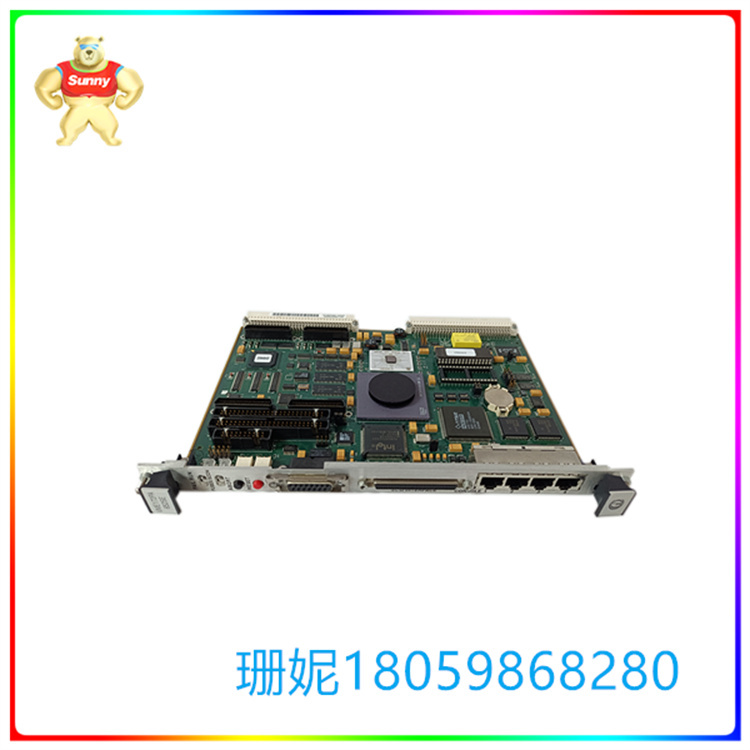

VMER-64 系统易于扩展
【产品详情】
VMEbus系统易于扩展
向VMEbus系统添加多达2个PMC模块
所有PMC I/O信号都被发送到VMEbus连接器P2
根据IEEE P1386/ draft 2.0规范,适用于单宽度的两个PMC模块或双宽度的一个模块
可选P2引脚排列(VME-PMC-CADDY-32P2)
VME和PCI之间的高带宽连接
强大的VME PCI桥宇宙CA91C142
4级VME仲裁器,地址空间高达A32/D32
VME64扩展连接器
主或从功能
可靠的设计——易于操作且经济高效
专为低功耗和易于冷却而设计
在许多不同的工业应用中得到验证
符合IEEE P1386和IEEE 1014修订版D的标准接口和外形
可用的软件库
VMER-64 系统易于扩展
【英文介绍】
The VMEbus system is easy to scale
Add up to 2 PMC modules to a VMEbus system
All PMC I/O signals are sent to VMEbus connector P2
According to the IEEE P1386/ draft 2.0 specification, it is suitable for two PMC modules of single width or one module of double width
Optional P2 pin arrangement (VME-PMC-CADDY-32P2)
High bandwidth connection between VME and PCI
Powerful VME PCI bridge Universe CA91C142
4-level VME arbitrator with up to A32/D32 address space
VME64 expansion connector
Master or slave function
Reliable design - easy to operate and cost effective
Designed for low power consumption and easy cooling
It has been proven in many different industrial applications
Standard interface and form element for IEEE P1386 and IEEE 1014 Revision D
Available software libraries
VMER-64 系统易于扩展
