VMIVME-2540 智能计数器控制器 具有作为智能计数器
【产品详情】

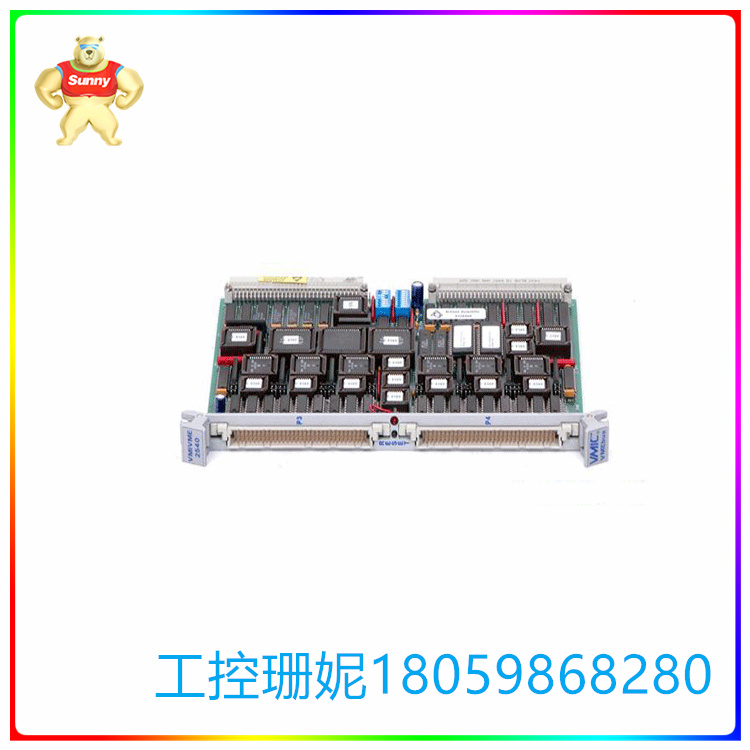

VMIVME-2540 系列
VMIVME-2540 由通用电气的工业自动化生产系列开发和生产。这些型号随后被 Abaco Systems 购买。该系列被称为 VMIC/GE Fanuc 板,专为工业线路的多种应用而设计,例如 CPU 管理和输入输出通信。
VMIVME-2540 是 VMIC/GE Fanuc 板卡的特定模块之一,具有作为智能计数器控制器运行的功能。该设备能够计算多达 4 个千兆事件。它配备了一系列 24 个离散输出通道,这些通道能够通过各种板载跳线模块选项进行编程。这些跳线能够在很宽的极端电压电平下工作。
24 个输出通道旨在提供 12 位分辨率。它们能够在 +/- 10 V 的速率下提供和吸收高达 10 毫安的电流。
为了使用 VMIVME-2540 进行离线测试,模拟输入设计为与外部电路断开连接。
VMIVME-2540 模块设计有 VMEbus 从站接口,能够提供 4、8、16 或 24 通道的数字信号测量和信号生成功能。这些可能的测量和信号输出功能由一系列集成系统时序控制器以及一系列相关的接口逻辑应用。
VMIVME-2540 智能计数器控制器 具有作为智能计数器
【英文介绍】
VMIVME-2540 series
The VMIVME-2540 is developed and produced by GE's Industrial Automation production family. These models were subsequently purchased by Abaco Systems. The series is called VMIC/GE Fanuc boards and is designed for a variety of applications in industrial lines, such as CPU management and input/output communication.
The VMIVME-2540 is one of the specific modules of the VMIC/GE Fanuc board with the function of operating as an intelligent counter controller. The device is capable of calculating up to four gigabit events. It is equipped with a series of 24 discrete output channels that are capable of being programmed with various onboard jumper module options. These jumpers are capable of operating at a wide range of extreme voltage levels.
The 24 output channels are designed to provide 12-bit resolution. They are capable of delivering and absorbing up to 10 mA at rates of +/ -10 V.
For off-line testing with the VMIVME-2540, the analog input is designed to be disconnected from the external circuit.
The VMIVME-2540 module is designed with a VMEbus slave interface to provide digital signal measurement and signal generation in 4, 8, 16 or 24 channels. These possible measurement and signal output functions are applied by a series of integrated system timing controllers and a series of associated interface logic applications.
VMIVME-2540 智能计数器控制器 具有作为智能计数器
