GE IC695CPU320-CF 中央处理器 独立的串口
【产品详情】
技术规格
处理速度: 1千兆赫
CPU内存: 20 兆字节
浮点: 是的
串口: 2
串行协议: SNP、串行 I/O、Modbus 从站
嵌入式通信: RS-232、RS-486 接口
IC695CPU320 是 GE Fanuc PACSystems RX3i 系列的中央处理器。IC695CPU320具有额定频率为 1 GHz 的 Intel Celeron-M 微处理器,具有 64 MB 用户(随机存取)内存和 64 MB 闪存(存储)内存。RX3i CPU 经过编程和配置,可实时控制机器、流程和材料处理系统。
IC695CPU320 的机箱内置了一对独立的串口。两个串行端口中的每一个都在系统底座上占用一个插槽。CPU 支持 SNP、Serial I/O 和 Modbus Slave 串行协议。此外,IC695CPU320采用双背板设计,总线支持RX3i PCI和90-30式串行总线。与 Rx3i 产品系列中的其他 CPU 一样,IC695CPU320 提供自动错误检查和纠正。
IC695CPU320 使用 Proficy Machine Edition,这是所有 GE Fanuc 控制器通用的开发环境。Proficy Machine Edition 用于创建、运行和诊断操作员界面、运动和控制应用程序。

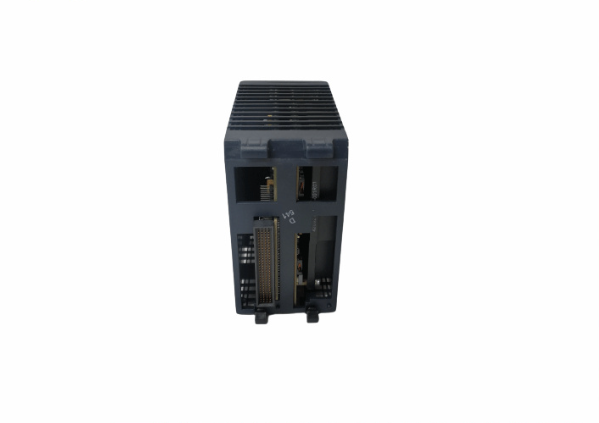

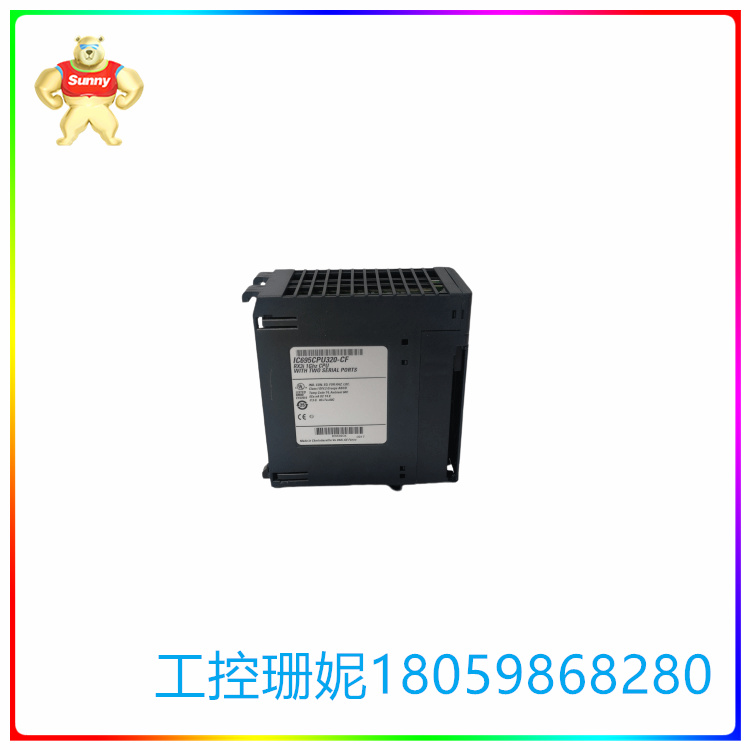

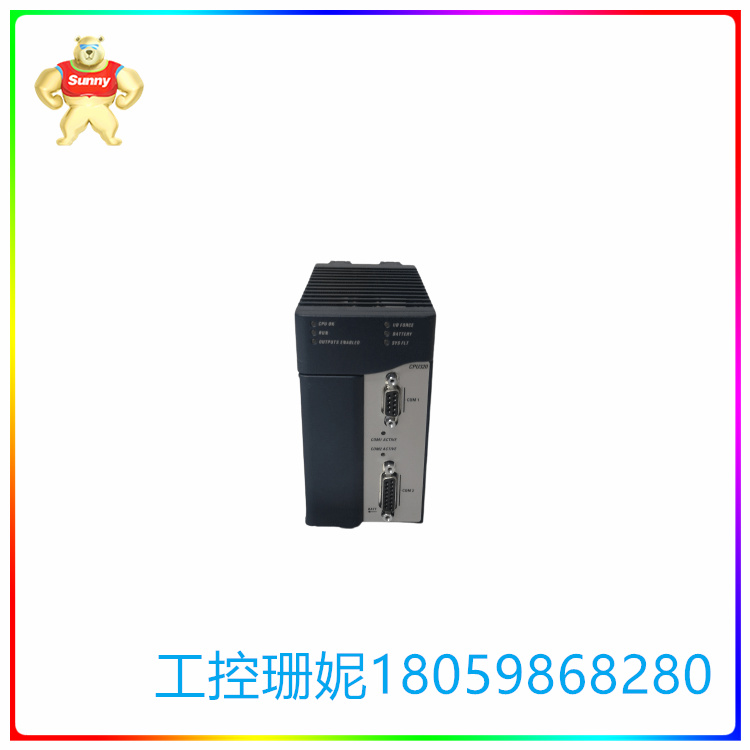

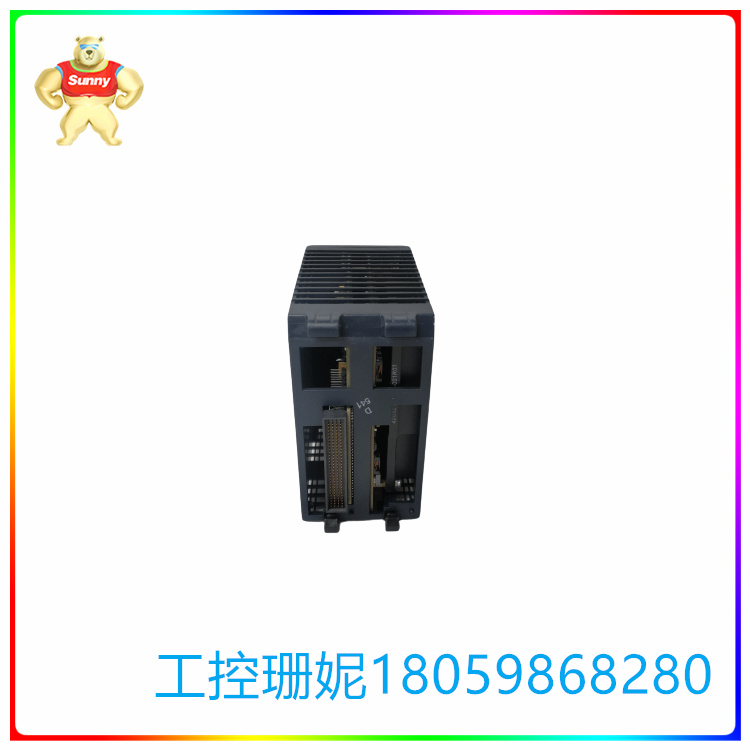

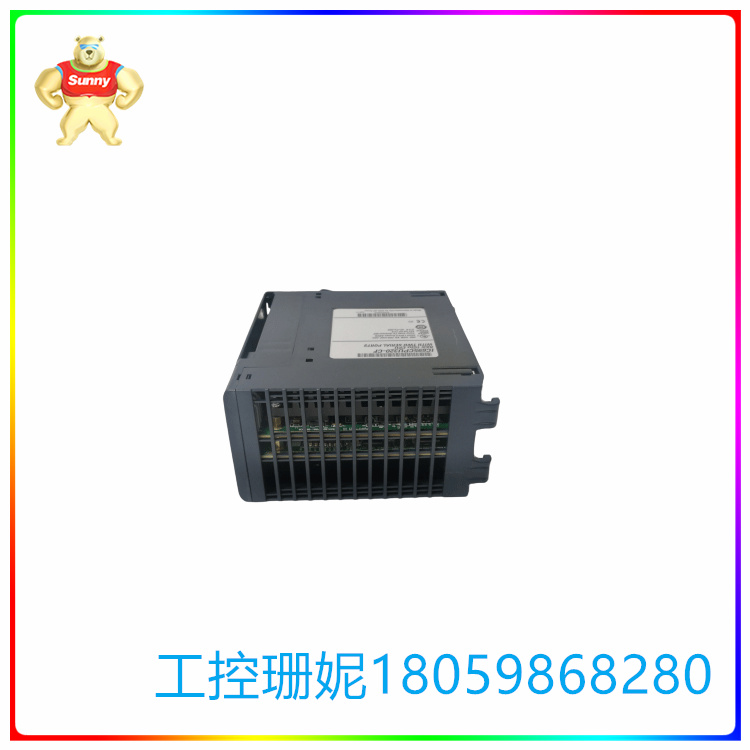

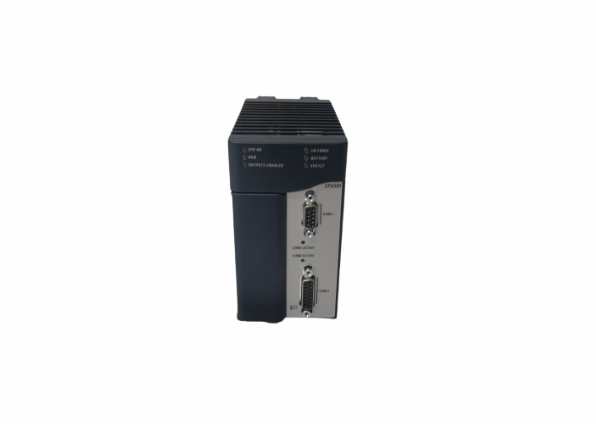

CPU 上的八个 LED 指示灯有助于故障排除。除了标有 COM 1 和 COM 2 的两个 LED 属于不同的端口而不是不同的功能外,每个 LED 都对应一个单独的功能。其他 LED 是 CPU OK、Run、Outputs Enabled、I/O Force、Battery 和 Sys Flt——这是“系统故障”的缩写。I/O Force LED 指示 Override 是否在位参考上处于活动状态。当输出启用 LED 亮起时,输出扫描已启用。其他 LED 标签不言自明。LED 和串行端口都集中在设备的正面,以便于查看。
客户问答
问题:什么是IC695CPU320?答:IC695CPU320是GE Fanuc RX1i系列的3 GHz CPU微处理器。
问:IC695CPU320有多少个串口? 答: 该 CPU 有 2 个独立的板载串行端口,可通过模块正面的连接器访问。
问:端口 1 和 2 提供什么? 答: 它们为外部设备提供串行接口。任一端口都可用于固件升级。
问: CPU OK LED 亮起时是什么意思? 答:
它表示 CPU 已通过通电诊断并正常运行。
*初始化序列完成后。
当它关闭时,表示存在 CPU 问题。RUN 和 OUTPUTS ENABLED LED 可能以错误代码模式闪烁,技术支持可以使用该模式进行故障排除。这种情况和任何错误代码都应报告给您的技术支持代表。
问: 当 CPU OK、OUTPUTS ENABLED 和 RUN LED 同时闪烁时,这意味着什么? 答:它表示 CPU 处于启动模式,正在等待通过串行端口的固件更新。
问:闪烁的 OK LED 表示什么? 答:当此指示灯闪烁且其他 LED 熄灭时,表示 CPU 处于停止/停止状态。这可能是看门狗定时器故障,因此请参阅故障表。如果编程器无法连接,请在连接电池的情况下循环电源并参考故障表。
问:IC695CPU320有哪些特点? 答:
包含 64 MB 电池备份用户存储器和 64 MB 非易失性闪存用户存储器。
通过引用表 %W 提供对大容量内存的访问。
可配置的数据和程序存储器。
梯形图、结构化文本、功能块图和 C 语言编程。
支持自动定位的符号变量,可以使用任意数量的用户内存。
参考表大小包括离散 %I 和 %Q 的 32Kbits,以及每个模拟 %AI 和 %AQ 的 32K 字。
支持大多数 90-30 系列模块和扩展机架。
支持多达 512 个程序块。块的最大大小为 128KB。
固件可以在现场升级。
GE IC695CPU320-CF 中央处理器 独立的串口
【英文介绍】
Technical specification
Processing speed: 1 GHZ
CPU memory: 20 megabytes
Floating point: Yes
Serial port: 2
Serial protocol: SNP, serial I/O, Modbus slave station
Embedded communication: RS-232, RS-486 interface
The IC695CPU320 is a central processing unit of the GE Fanuc PACSystems RX3i series. The IC695CPU320 features an Intel Celeron-M microprocessor rated at 1 GHz with 64 MB of user (random access) memory and 64 MB of flash (storage) memory. The RX3i CPU is programmed and configured to control machines, processes and material handling systems in real time.
The IC695CPU320 chassis is equipped with a pair of independent serial ports. Each of the two serial ports occupies a slot in the system dock. The CPU supports SNP, Serial I/O, and Modbus Slave serial protocols. In addition, the IC695CPU320 uses a dual-backplane design, and the bus supports RX3i PCI and type 90-30 serial buses. Like other cpus in the Rx3i product family, the IC695CPU320 provides automatic error checking and correction.
The IC695CPU320 uses Proficy Machine Edition, a common development environment for all GE Fanuc controllers. Proficy Machine Edition is used to create, run, and diagnose operator interface, motion, and control applications.
Eight LED indicators on the CPU help with troubleshooting. Except that the two leds labeled COM 1 and COM 2 belong to different ports rather than different functions, each LED corresponds to a separate function. The other leds are CPU OK, Run, Outputs Enabled, I/O Force, Battery, and Sys Flt - short for "system failure." I/O Force LED indicates whether Override is active on the present reference. When the output enabled LED lights up, output scanning is enabled. Other LED labels are self-explanatory. The leds and serial ports are concentrated on the front of the device for easy viewing.
Customer question and answer
Question: What is IC695CPU320? A: The IC695CPU320 is a 3 GHz CPU microprocessor from the GE Fanuc RX1i series.
Q: How many serial ports does the IC695CPU320 have? A: The CPU has 2 separate on-board serial ports that can be accessed through connectors on the front of the module.
Q: What do ports 1 and 2 offer? Answer: They provide a serial interface to external devices. Either port can be used for firmware upgrades.
Q: What does CPU OK LED mean when it lights up? A:
It indicates that the CPU has passed the power-on diagnosis and is running properly.
* After the initialization sequence is complete.
When it turns off, there is a CPU problem. The RUN and OUTPUTS ENABLED leds may flash in error code mode, which technical support can use for troubleshooting. This and any error codes should be reported to your technical support representative.
Q: What does it mean when the CPU OK, OUTPUTS ENABLED, and RUN LED flash at the same time? A: It indicates that the CPU is in boot mode and is waiting for a firmware update via the serial port.
Q: What does the flashing OK LED mean? A: When this indicator is blinking and other leds are off, the CPU is in the stop/stop state. This could be a watchdog timer failure, so refer to the fault table. If the programmer cannot connect, cycle the power supply with the battery connected and refer to the fault table.
Q: What are the features of the IC695CPU320? A:
Includes 64 MB battery backup user memory and 64 MB non-volatile flash user memory.
Access to large memory is provided by reference to table %W.
Configurable data and program storage.
Ladder diagram, structured text, function block diagram and C language programming.
Supports automatic positioning of symbolic variables and can use any amount of user memory.
The reference table size consists of 32Kbits for discrete %I and %Q, and 32K words for each analog %AI and %AQ.
Supports most 90-30 series modules and expansion racks.
Supports up to 512 blocks. The maximum block size is 128KB.
Firmware can be upgraded on site.
