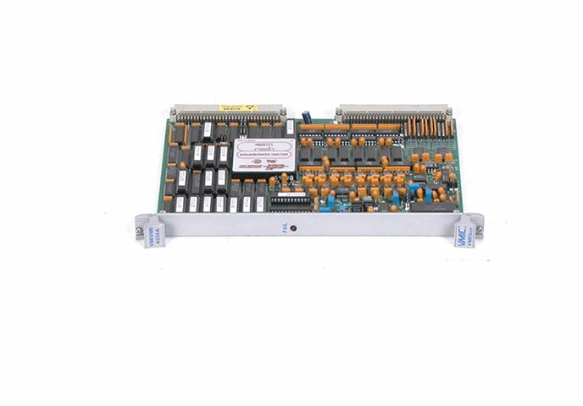

VMIVME-4514A-000 扫描模拟量I/O板 输出可以编程
【产品详情】
特征:
16 个差分或单端模拟输入通道
16个模拟输出通道,具有10 mA驱动能力
板载 12 位 ADC 和 DAC
40 kHz 最大吞吐量
三种 A/D 工作模式
VMIVME-4514A 是一款 16 通道、12 位模拟输入/输出 (AIO) 板。它提供了基于VME总线的闭环模拟系统中遇到的激励和响应功能。模拟信号可通过 P2 背板连接器获得。它是独立的,具有常驻的 12 位模数转换器 (ADC) 和数模转换器 (DAC)。该板还支持内置测试功能,可检查板上的所有有源组件。VMIVME-4514A 提供单板解决方案,可满足过程控制、仿真器、培训师和监控等 VME 总线应用的模拟输入/输出要求。
VMIVME-4514A 为用户提供 16 个模拟输出,分辨率为 12 位。输出设计有独立的采样保持(S&H)放大器,每个通道一个。输出可以编程(通过板载跳线),以在各种电压范围内工作。这些范围为 0 至 +5 V、0 至 +10 V(单极性)、±2.5、±5.0 或 ±10 V(双极性)。每个输出可在 ±10 V 时提供或吸收高达 10 mA 的电流。输出可以与 I/O 连接器断开,以便进行离线测试。
该板还接受 16 个模拟输入。这些输入可以是差分或伪差分(单端)。可以为输入订购一个36 Hz单极点输入滤波器。输入ADC可通过板载跳线进行编程,以在各种电压范围内工作。这些范围为 0 至 +5 V、0 至 +10 V(单极性)、±2.5、±5.0 或 ±10 V(双极性)。输入具有 12 位分辨率。输入可由板载多路复用器扫描,数据存储在双端口存储器中。
VMIVME-4514A 具有三种 ADC 工作模式。它们是随机轮询、扫描轮询和自动扫描。当电路板通电、系统复位后或程序控制下,进入自动扫描模式。在此模式下,将连续扫描所有 16 个通道。它们的输入被数字化并存储在 12 个 4514 位双端口寄存器中。除了读取数据外,无需编程 从这些寄存器。
VMIVME-4514A-000 扫描模拟量I/O板 输出可以编程
【英文介绍】
Features:
16 differential or single-ended analog input channels
16 analog output channels with 10 mA drive capability
Onboard 12-bit ADC and DAC
40 kHz maximum throughput
Three A/D modes of operation
The VMIVME-4514A is a 16-channel, 12-bit analog input/output (AIO) board. It provides the excitation and response functions encountered in closed-loop simulation systems based on VME bus. Analog signals are available through the P2 backplane connector. It is self-contained and has a resident 12-bit analog-to-digital converter (ADC) and digital-to-analog converter (DAC). The board also supports built-in testing capabilities to check all active components on the board. The VMIVME-4514A provides a single board solution to meet the analog input/output requirements of VME bus applications such as process control, simulators, trainers, and monitoring.
The VMIVME-4514A provides users with 16 analog outputs with a resolution of 12 bits. The output is designed with separate sample-hold (S&H) amplifiers, one for each channel. The output can be programmed (via onboard jumpers) to operate in various voltage ranges. These ranges are 0 to +5 V, 0 to +10 V (unipolar), ±2.5, ±5.0, or ±10 V (bipolar). Each output can provide or absorb up to 10 mA of current at ±10 V. The output can be disconnected from the I/O connector for offline testing.
The board also accepts 16 analog inputs. These inputs can be differential or pseudo-differential (single-ended). A 36 Hz unipolar point input filter can be ordered for the input. The input ADC can be programmed with onboard jumpers to operate over a variety of voltage ranges. These ranges are 0 to +5 V, 0 to +10 V (unipolar), ±2.5, ±5.0, or ±10 V (bipolar). The input has 12-bit resolution. The input can be scanned by an onboard multiplexer, and the data is stored in a dual-port memory.
The VMIVME-4514A has three ADC operating modes. They are random polling, scan polling, and automatic scanning. When the circuit board is powered on, the system is reset, or under program control, it enters the automatic scanning mode. In this mode, all 16 channels are scanned consecutively. Their inputs are digitized and stored in 12 4514-bit dual-port registers. There is no need to program from these registers except to read data.
