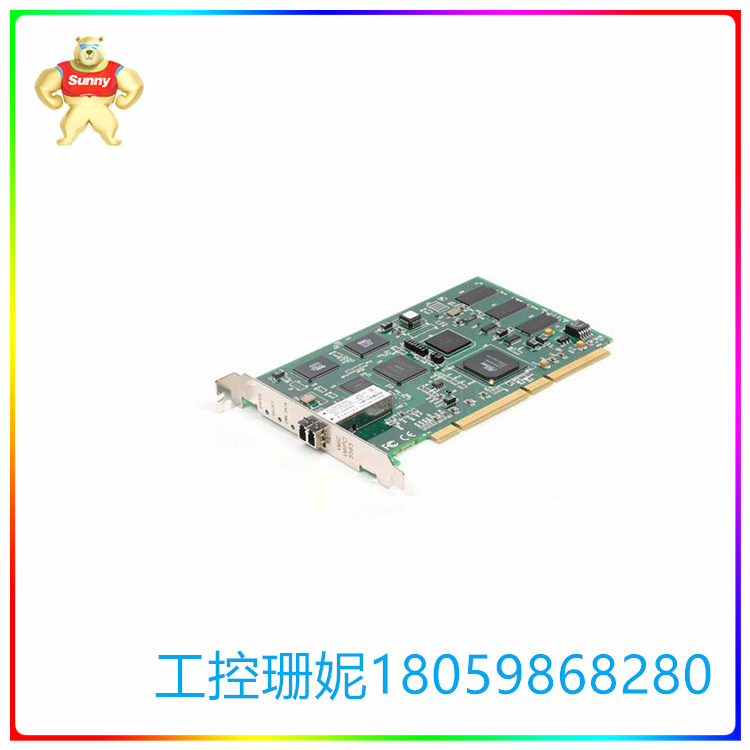

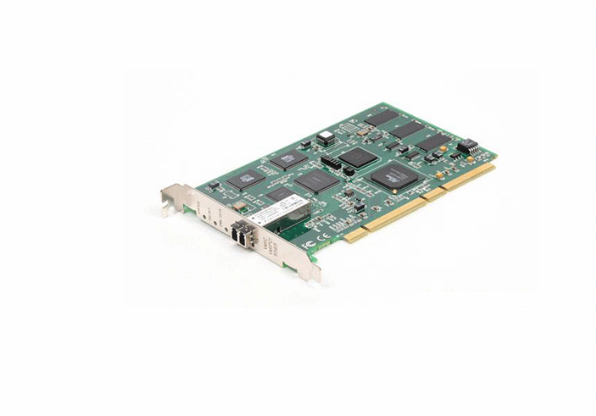

VMIPCI-5565-010 反射式存储器接口 共享数据
【产品详情】
PCI-5565-010: • 64 MB SDRAM
• 4 K FIFO •
多模式传输
部件号: 332-855565-010, PCI-5565-010, VMIPCI-5565-010
产品代码:
5998-01-588-6734, 5998015886734
特征:
网络传输速率 43 MB/s(4 字节数据包)至 174 MB/s(64 字节数据包)
动态数据包大小,4 到 64 字节的数据
连接多模光纤长达 300 米,单模光纤连接长达 10 公里
多达 256 个节点
GE Fanuc / VMIC PCI-5565 反射式存储器接口允许在多达 256 个独立系统(节点)之间以高达 174 MB/s 的速率共享数据。每个反射式内存板可配置64 MB至256 MB的板载SDRAM。本地 SDRAM 提供对存储数据的快速读取访问时间。写入存储在本地SDRAM中,并通过高速光纤数据路径广播到其他反射式存储器节点。节点之间的数据传输是软件透明的,因此不需要 I/O 开销。发送和接收FIFO在峰值数据速率期间缓冲数据,以优化主机和总线性能,以保持高数据吞吐量。
VMIPCI-5565-010 反射式存储器接口 共享数据
【英文介绍】
PCI-5565-010: • 64 MB SDRAM
• 4 K FIFO •
Multimode transmission
Part number: 332-855565-010, PCI-5565-010, VMIPCI-5565-010
Product Code:
5998-01-588-6734, 5998015886734
Features:
Network transfer rate 43 MB/s (4-byte packets) to 174 MB/s (64-byte packets)
Dynamic packet size, 4 to 64 bytes of data
Multi-mode fiber connections are up to 300 meters long and single-mode fiber connections are up to 10 kilometers long
Up to 256 nodes
The GE Fanuc/VMIC PCI-5565 reflective memory interface allows data to be shared between up to 256 independent systems (nodes) at a rate of up to 174 MB/s. Each reflective memory board can be configured with 64 MB to 256 MB of on-board SDRAM. Local SDRAM provides fast read access time to stored data. Writes are stored in local SDRAM and broadcast to other reflective memory nodes via high-speed fiber data paths. Data transfers between nodes are software-transparent, so there is no I/O overhead. Transmit and receive FIFOs buffer data during peak data rates to optimize host and bus performance to maintain high data throughput.
VMIPCI-5565-010 反射式存储器接口 共享数据
