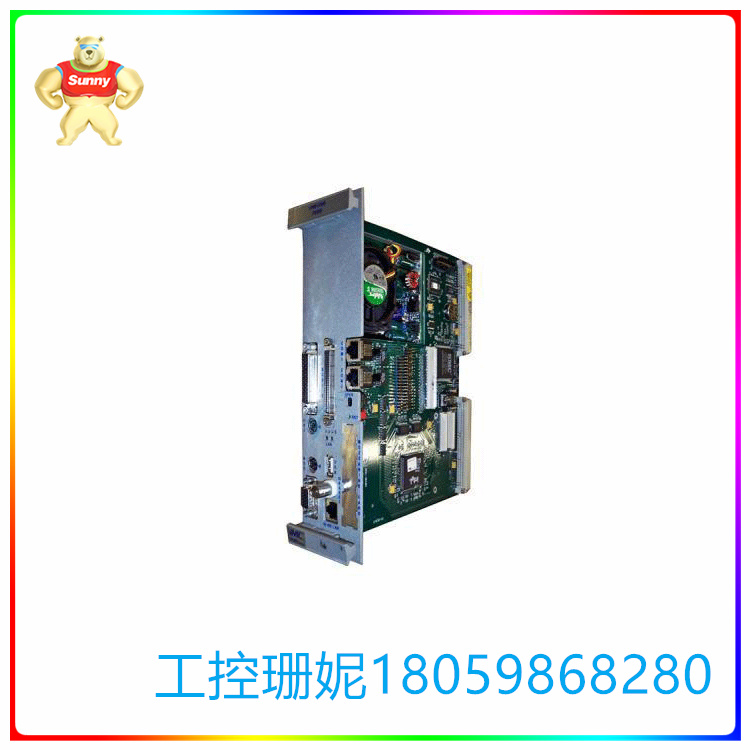

VMIVME-7686 配备了快速/宽以太网 夹层扩展站点
【产品详情】
本机被指定为 VMIC 设备的 VMIVME-7686 模块。整个系列最初由通用电气的工业自动化部门开发和制造,但在GE停止生产后,这些模块随后被Abaco Systems收购和生产。
VMIVME-7686 模块是 VMIC 系列中基于 Pentium Pro 处理器的 VMEbus CPU 模块,能够处理高达 100 兆位的以太网,速度高达 180 或 200 兆赫兹。奔腾 Pro 处理器的内部 L2 高速缓存大小能够容纳 256 到 512 KB 的内存。
VMIVME-7686 模块还配备并配备了快速/宽以太网、SCSI 和 USB 接口端口。还有一个并行端口、键盘端口、鼠标连接端口和超级视频图形阵列端口。
VMIVME-7686 模块带有一个 PMC 夹层扩展站点(IEEE-P1386 通用夹层卡标准,电压为 5 伏)、VMEbus 中断处理程序、灭弧室和系统控制器模块,并包括用于小端和大端数据接口的字节交换硬件。
标准 VMIC 功能包括 10BaseT、10Base2 和 100BaseTX 以太网接口选项、带前面板接口的 PCI 快速/宽 SCSI-2 控制器、板载增强型 IDE 硬盘驱动器和软驱控制器、一对高性能 16550 兼容串行端口、支持 ECP/EPP 模式的增强型并行端口。前面板上有一个 PS/2 风格的键盘和鼠标端口,包括实时时钟和微型扬声器,前窗格上有通用串行总线 (USB)。

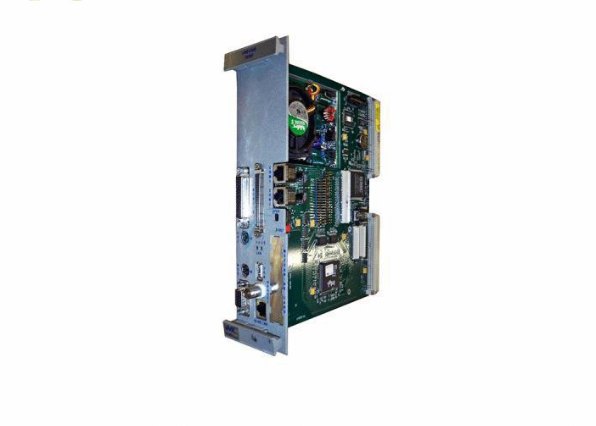

VMIVME-7686 配备了快速/宽以太网 夹层扩展站点
【英文介绍】
This unit is designated as the VMIVME-7686 module of the VMIC device. The entire series was originally developed and manufactured by GE's Industrial Automation division, but after GE discontinued production, the modules were subsequently acquired and manufactured by Abaco Systems.
The VMIVME-7686 module is a Pentium Pro processor-based VMEbus CPU module in the VMIC family, capable of handling Ethernet up to 100 megabits at speeds up to 180 or 200 MHZ. The Pentium Pro processor's internal L2 cache size is capable of holding 256 to 512 KB of memory.
The VMIVME-7686 module is also equipped with and equipped with fast/wide Ethernet, SCSI and USB interface ports. There is also a parallel port, keyboard port, mouse connection port, and Super Video Graphics array port.
The VMIVME-7686 module comes with a PMC sandwich extension station (IEEE-P1386 universal sandwich card standard with a voltage of 5 volts), VMEbus interrupt handler, interrupter, and system controller module, and includes byte exchange hardware for small - and big-end data interfaces.
Standard VMIC features include 10BaseT, 10Base2, and 100BaseTX Ethernet interface options, PCI fast/wide SCSI-2 controllers with front panel interfaces, an onboard enhanced IDE hard drive and floppy drive controller, a pair of high-performance 16550 compatible serial ports, and support Enhanced parallel port in ECP/EPP mode. There is a PS/ 2-style keyboard and mouse port on the front panel, including a real-time clock and miniature speakers, and Universal Serial Bus (USB) on the front pane.
VMIVME-7686 配备了快速/宽以太网 夹层扩展站点
