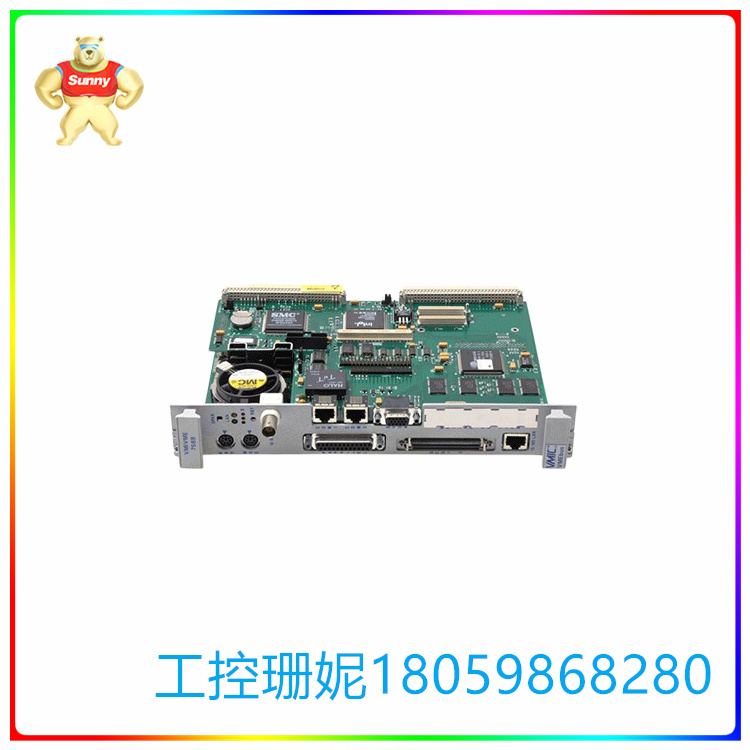

VMIVME-7614-132 赛扬 VME64 单板计算机

【产品详情】

VMIVME-7614-132：

• 300 MHz 赛扬处理器

• 系统内存：512 KB • SRAM：128 KB

• 随附

16 MB 闪存卡 部件号 350-017614-132 D

特征：

赛扬处理器

Com 1 和 2 前面板连接器

（1） 鼠标/Keboard 连接器

VME64 连接器

GE Fanuc / VMIC VMIVME-7614 系列赛扬 VME64 单板计算机采用赛扬处理器，带有 Com 1 和 Come 2 前面板连接器。这些板还具有一个鼠标/键盘连接器。

该设备是 Abaco Systems 产品线的一部分，最初设计为通用电气工业自动化生产和开发部门的系列。该系列现在已完全停产，仅作为二手材料提供。

VMIVME-7614-132 模块是一款基于 Socket 370 处理器的单脉冲赛扬型号 VMEbus 单板计算机。此模型支持基于 Windows NT 和 Windows 2000 的系统，以及 Linux、VxWorks、QNX 和 Solaris 系统的操作系统支持。

VMIVME-7614-132 单元设计有多种特殊功能，例如高达 512 MB 的 IDE CompactFlash（可选格式）和多达 16 个可编程 32 位定时器模块。有 <> KB 的电池备份 SRAM 存储器。

本机能够支持远程以太网连接的启动。还有一个软件可选的看门狗定时器，具有复位功能。它能够支持与 HD/软盘驱动器的 VMEbus P2 连接。

该装置的标准功能包括一个基本的 Socket 370 处理器模块、一对高性能 16550 兼容串行端口。这些型号的前面板还集成了一个 PS/2 风格的键盘和鼠标端口。

VMIVME-7614-132 赛扬 VME64 单板计算机

【英文介绍】

VMIVME-7614-132:

• 300 MHz Celeron processor

• System memory: 512 KB • SRAM: 128 KB

• Attached

16 MB flash memory card Part number 350-017614-132 D

Features:

Celeron processor

Com 1 and 2 front panel connectors

(1) Mouse /Keboard connector

VME64 connector

GE Fanuc/VMIC VMIVME-7614 series Celeron VME64 single-board computers feature Celeron processors with Com 1 and Come 2 front panel connectors. These boards also have a mouse/keyboard connector.

The device is part of the Abaco Systems product line, originally designed as a family for GE's Industrial Automation Production and development division. The series has now been completely discontinued and is only available as used material.

The VMIVME-7614-132 module is a single-pulse Ceion model VMEbus single-board computer based on Socket 370 processors. This model supports Windows NT and Windows 2000 based systems, as well as operating system support for Linux, VxWorks, QNX, and Solaris systems.

The VMIVME-7614-132 unit is designed with a variety of special features, such as IDE CompactFlash (optional format) of up to 512 MB and up to 16 programmable 32-bit timer modules. There is <> KB of battery backup SRAM memory.

This unit can support the startup of remote Ethernet connections. There is also a software-optional watchdog timer with a reset function. It is capable of supporting VMEbus P2 connection with HD/ floppy disk drive.

Standard features include a basic Socket 370 processor module and a pair of high-performance 16550 compatible serial ports. The front panel of these models also integrates a PS/2 style keyboard and mouse port.

VMIVME-7614-132 赛扬 VME64 单板计算机
