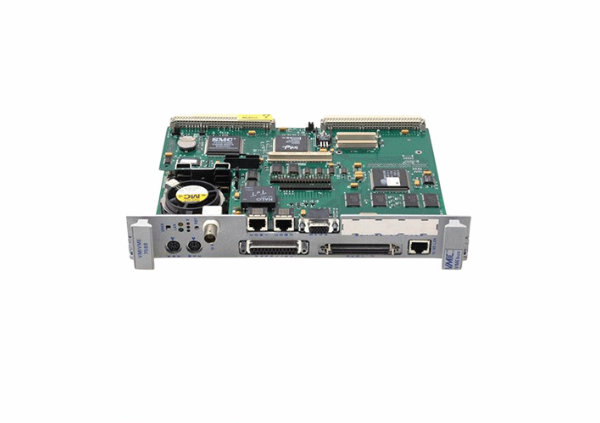

VMIVME-7588 基于增强型奔腾处理器的 VMEbus CPU 模块

【产品详情】

本机是VMIC系列各种设备的一部分。该模型最初由通用电气的 Fanuc 自动化部门构建。然而，随着时间的流逝，该系列随后从大规模生产中撤出，后来被 Abaco Systems 收购。AX Control Inc. 能够提供给您的库存以前已经使用过，但已经完全翻新、重新校准和维修到最佳的标称设置，这将使这些设备在再次使用时具有生产寿命。

VMIVME-7588 型号本身是基于 Pentium 处理器的增强型 VMEbus CPU，能够处理 133 和 166 兆赫兹的能量。该型号的处理器中集成了一个外部 L2 缓存。该缓存设计有 512 KB 大小的同步突发 SRAM 存储器。还有高达 256 兆字节的 DRAM 内存，使用 72 针 SIMM 兼容和不兼容奇偶校验。64 位外设组件互连 （PCI） 连接到超级视频图形阵列控制器，具有高达 2 MB 的视频格式化 DRAM 内存。

VMIVME-7588 还集成在一系列板载、高级、增强型 IDE 硬盘和软驱控制器模块中。此外，还集成了两个高性能串行端口，可与 16550 连接器连接。

与VMIC系列中的所有这些模块一样，前面板中嵌入了PS / 2风格的键盘和鼠标端口。

VMIVME-7588 基于增强型奔腾处理器的 VMEbus CPU 模块

【英文介绍】

This machine is part of the VMIC series of various equipment. The model was originally built by General Electric's Fanuc automation division. However, as time passed, the series was subsequently withdrawn from mass production and was later acquired by Abaco Systems. AX Control Inc. is able to provide you with inventory that has been used before, but has been completely refurbished, recalibrated and serviced to the best nominal Settings, which will give these devices a productive life when used again.

The VMIVME-7588 model itself is an enhanced VMEbus CPU based on a Pentium processor, capable of handling 133 and 166 MHZ of power. An external L2 cache is integrated into the processor. The cache is designed with 512 KB of synchronous burst SRAM memory. There is also up to 256 megabytes of DRAM memory, using 72-pin SIMM compatible and incompatible parity. 64-bit Peripheral Component Interconnect (PCI) connects to a Super Video Graphics Array controller with up to 2 MB of video-formatted DRAM memory.

The VMIVME-7588 is also integrated in a range of on-board, advanced, enhanced IDE hard drives and floppy drive controller modules. In addition, two high-performance serial ports are integrated and can be connected to the 16550 connector.

As with all these modules in the VMIC series, a PS / 2-style keyboard and mouse port are embedded in the front panel.
