VMIVME-5010-000 中断扩展器板 可编程的边沿选择功能

【产品详情】

VMIC系列器件的型号在设计上都与功能电路板相似，但具有单独的功能，例如模数转换器板、输入和输出模块以及中央处理器。这些设备都是由通用电气的工业自动化部门作为产品制造的，尽管它们已从生产中撤出，后来由Abaco Systems开发。

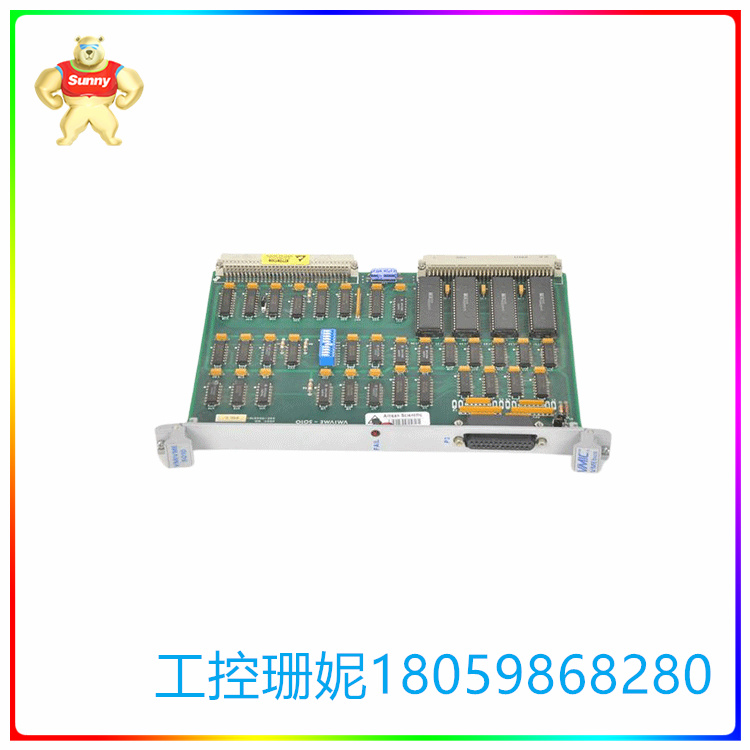

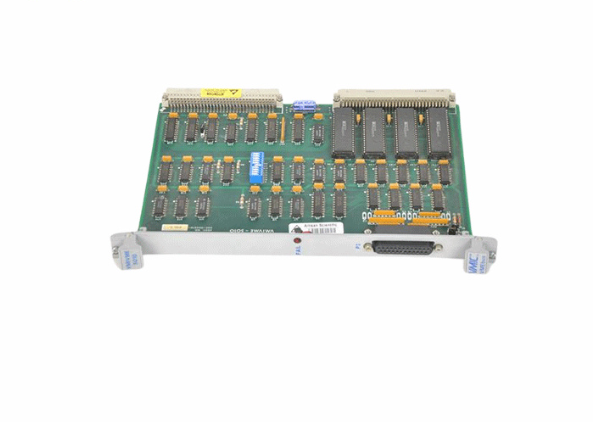

VMIC 系列的 VMIVME-5010 型号是中断扩展器板。该装置配备了一系列标准功能，例如一组 8 个全局中断通道和 8 个前面板外部中断输入，并具有用户可编程的边沿选择功能。VMIVME-5010 中集成了一个可选的中断发生器，由操作员通过程序控制启动。

VMIVME-5010 型号具有处理 8 位数据传输的能力。该装置的电源摄入范围从最小 5 伏到最大 48 伏的直流电。VMIVME-5010 模块的应用范围包括状态变化监控、控制系统输入、数据采集系统和数字输入状态监控。该装置还适用于干式开关监控、通用数字输入、接地环路消除、高 CMV 数字输入、隔离式数字输入、低维护应用、过程状态传感器监控以及监控系统、培训器和模拟器。

 VMIVME-5010-000 中断扩展器板 可编程的边沿选择功能

【英文介绍】

The models of the VMIC family of devices are all similar in design to functional boards, but have separate functions, such as an analog-to-digital converter board, input and output modules, and a central processing unit. These devices were all manufactured as products by GE's Industrial automation division, although they were withdrawn from production and later developed by Abaco Systems.

The VMIVME-5010 model of the VMIC series is an interrupt expander board. The unit comes with a range of standard features, such as a set of eight global interrupt channels and eight front panel external interrupt inputs, and features a user-programmable edge selection function. An optional interrupt generator is integrated into the VMIVME-5010, which is programmed to be activated by the operator.

The VMIVME-5010 model has the ability to handle 8-bit data transmission. The device's power intake ranges from a minimum of 5 volts to a maximum of 48 volts of direct current. The application range of the VMIVME-5010 module includes status change monitoring, control system input, data acquisition system and digital input status monitoring. The unit is also suitable for dry switch monitoring, general purpose digital inputs, ground loop elimination, high CMV digital inputs, isolated digital inputs, low maintenance applications, process status sensor monitoring as well as monitoring systems, trainers and simulators.

 VMIVME-5010-000 中断扩展器板 可编程的边沿选择功能
