VMIVME-4132-000 模拟输出板 使用板载跳线进行编程

【产品详情】

VMIVME-4132-000

VMIC系列产品是一系列设备，最初由通用电气的工业自动化部门开发和制造。然而，VMIC系列产品随后被Abaco Systems收购并制造。这里列出的单元是 VMIVME-4132-000，它是模拟输出板的型号。

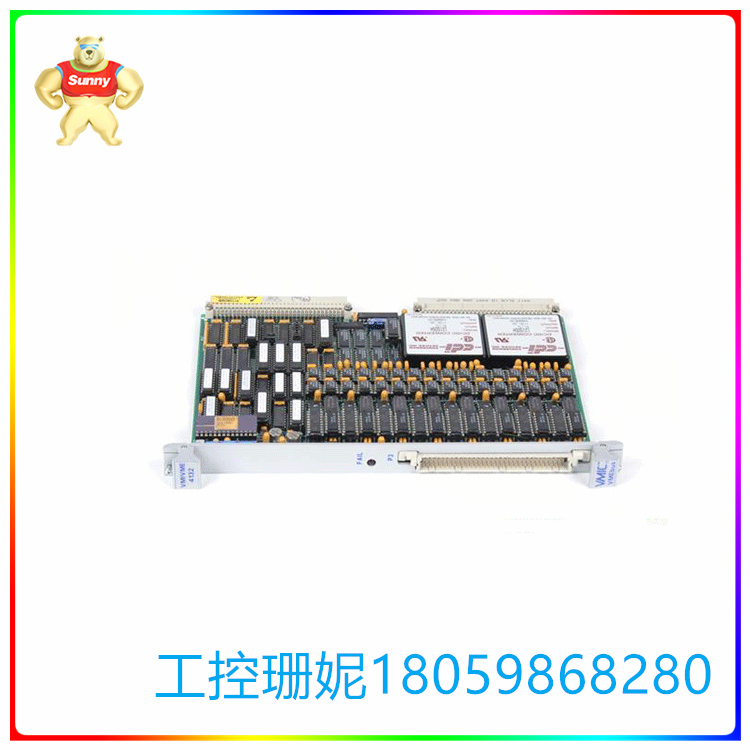

VMIVME-4132-000 是一款 32 通道模拟输出板，旨在为操作员提供一组高质量的模拟通道。这些通道能够使用板载跳线进行编程，使其能够在各种电压范围内工作。所有输出连接均具有 12 位分辨率，能够在正负 10 伏电压下提供或吸收 10 毫安的电流。

VMIVME-4132-000 的标准特性包括多项功能，例如 VMEbus 合规性： 模拟输出板是标准的双高印刷电路板，与VMEbus规范兼容。

电路板的物理地址可由板载跳线选择。对 VMEbus 地址线 A07 到 A15 进行解码，以便进行电路板选择。

地址修饰符位通过跳线选择和解码，以支持非特权短 I/O、监控短 I/O 或两者兼而有之。该板在出厂时配置为监控短 I/O。

VMIVME-4132-000 模拟输出板 使用板载跳线进行编程

【英文介绍】

VMIVME-4132-000

The VMIC family of products is a family of devices originally developed and manufactured by GE's Industrial automation division. However, the VMIC series was subsequently acquired and manufactured by Abaco Systems. The unit listed here is the VMIVME-4132-000, which is the model of the analog output board.

The VMIVME-4132-000 is a 32-channel analog output board designed to provide operators with a set of high-quality analog channels. These channels can be programmed using onboard jumpers, enabling them to operate in a variety of voltage ranges. All output connections have 12-bit resolution and are capable of delivering or absorbing 10 mA current at plus or minus 10 volts.

The VMIVME-4132-000's standard features include a number of features, such as VMEbus compliance: The analog output board is a standard dual-height printed circuit board that is compatible with the VMEbus specification.

The physical address of the board can be selected by the onboard jumper. The VMEbus address lines A07 to A15 are decoded for board selection.

Address modifier bits are selected and decoded by jumpers to support unprivileged short I/O, monitored short I/O, or both. The board is factory configured to monitor short I/O.
