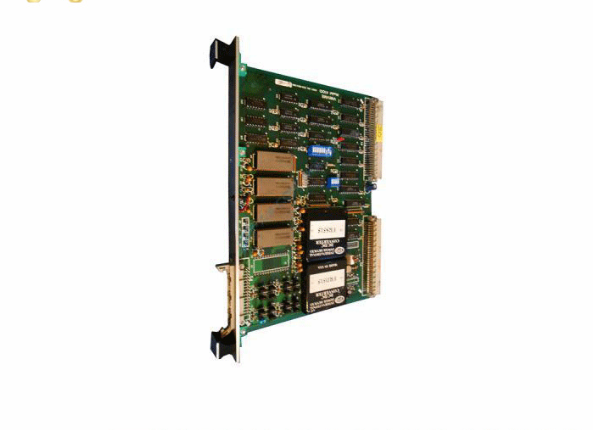

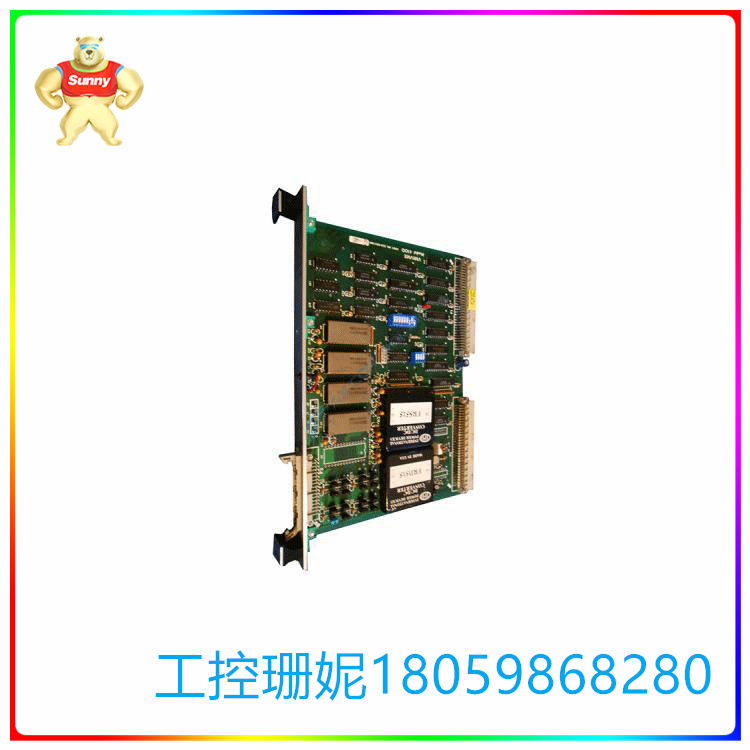

VMIVME-4100 双缓冲数据锁存器 模转换器板
【产品详情】
特征:
4、8、12 或 16 通道选项
缓冲电压输出
双缓冲数据锁存器
前面板故障 LED
96 针 I/O 连接器
这款 GE Fanuc / VMIC VMIVME-4100 4、8、12 或 16 通道 12 位数模转换器板提供 ±10 V 输出,具有正真偏移二进制输入编码。DAC板具有双缓冲数据锁存器、缓冲电压输出和可选的外部或内部更新控制选通。在测试模式下,模拟输出多路复用到 VME P2 背板(用户 I/O 引脚)上的模拟测试总线,以便通过 VMIC 的模数转换器 (ADC) 板 (VMIVME-3100) 进行模数转换。提供前面板故障 LED,用于快速识别故障位置。
VMIVME-4100 的一个独特功能是内置测试逻辑,允许通过使用板载多路复用器和 VMIVME-3100 ADC 板测试任何一个模拟输出通道。在测试模式下,通过连接器 P3 的现场连接可以隔离,并且 16 个通道中的任何一个都可以通过 VMIC 的模拟背板 (AMXbusTM) 路由到 12 位 ADC 板。程序控制下的ADC板可以将模拟信号转换为12位数字字,并与写入DAC板的原始12位字进行比较。以这种方式,可以在不干扰现场连接设备的情况下验证 16 个模拟输出通道中的每一个。模拟输出通道也可以多路复用到模拟测试总线,同时控制P3 连接现场设备,提供输出的实时故障检测。如果主板未通过自检,则前面板上的故障 LED 可能会亮起,以指示主板处于故障状态。
VMIVME-4100 模块是 VMIC 系列设备的一部分,VMIC 是一系列数模转换器板和 CPU 单元。这些装置是通用电气工业自动化部门的产品,后来从通用电气的生产中撤出后,被收购,然后由Abaco Systems生产。这些VMIC模块均可从AX Control的产品库存中获得,这些模块经过全面翻新、维修和优化,以满足最新的工业标准。
VMIVME-4100 型号具有一系列 4、8、12 或 16 通道选项,具有 12 位数模功能。它能够提供正负 10 V 输出,具有正、真偏移、二进制输入编码。
该转换器板具有双缓冲数据锁存器、缓冲电压输出和可选的外部或内部更新控制选通。在测试模式下,模拟输出多路复用到 VME P2 背板(用户 I/O 引脚)上的模拟测试总线,以便通过 VMIC 的模数转换器 (ADC) 板 (VMIVME-3100) 进行模数转换。提供前面板指示灯 LED 灯,用于快速识别故障位置。
VMIVME-4100 的一个独特功能是内置测试逻辑,允许通过使用板载多路复用器和 VMIVME-3100 ADC 板来测试任何一个模拟输出通道。在测试模式下,通过连接器 P3 的现场连接可以隔离,并且 16 个通道中的任何一个都可以通过 VMIC 的模拟背板 (AMXbusTM) 路由到 12 位 ADC 板。
VMIVME-4100 双缓冲数据锁存器 模转换器板
【英文介绍】
Features:
4, 8, 12 or 16 channel options
Buffer voltage output
Double buffered data latch
Front panel failure LED
96-pin I/O connector
This GE Fanuc/VMIC VMIVME-4100 4, 8, 12 or 16-channel 12-bit digital-to-analog converter board offers ±10 V output with positive true offset binary input coding. The DAC board features dual buffered data latches, buffered voltage outputs, and optional external or internal update control strobes. In test mode, the analog output is multiplexed to the analog test bus on the VME P2 backplane (user I/O pin) for analog-to-digital conversion via the VMIC's analog-to-digital Converter (ADC) board (VMIVME-3100). Front panel fault leds are provided for quick identification of fault locations.
A unique feature of the VMIVME-4100 is the built-in test logic, which allows testing of any analog output channel by using an onboard multiplexer and the VMIVME-3100 ADC board. In test mode, field connections via connector P3 can be isolated, and any of the 16 channels can be routed to the 12-bit ADC board via the VMIC's analog backplane (AMXbusTM). The programmable ADC board converts the analog signal to a 12-bit word and compares it with the original 12-bit word written to the DAC board. In this way, each of the 16 analog output channels can be verified without interfering with field-connected devices. The analog output channel can also be multiplexed to the analog test bus while controlling P3 connections to field devices to provide real-time fault detection of the output. If the motherboard does not pass the self-test, the fault LED on the front panel may light up to indicate that the motherboard is in a faulty state.
The VMIVME-4100 module is part of the VMIC family of devices, a series of digital-to-analog converter boards and CPU units. These units were a product of GE's Industrial Automation division and were later acquired after being withdrawn from GE's production and then manufactured by Abaco Systems. These VMIC modules are available from AX Control's product inventory, which has been fully refurbished, repaired and optimized to meet the latest industry standards.
The VMIVME-4100 models are available in a range of 4, 8, 12 or 16-channel options with 12-bit digital mode capabilities. It is capable of providing plus or minus 10 V outputs with positive, true offset, binary input encoding.
The converter board features dual buffered data latches, buffered voltage outputs, and optional external or internal update control strobes. In test mode, the analog output is multiplexed to the analog test bus on the VME P2 backplane (user I/O pin) for analog-to-digital conversion via the VMIC's analog-to-digital Converter (ADC) board (VMIVME-3100). Front panel indicator LED lights are provided for quick fault location identification.
A unique feature of the VMIVME-4100 is the built-in test logic, which allows testing of any analog output channel by using an onboard multiplexer and VMIVME-3100 ADC board. In test mode, field connections via connector P3 can be isolated, and any of the 16 channels can be routed to the 12-bit ADC board via the VMIC's analog backplane (AMXbusTM).
