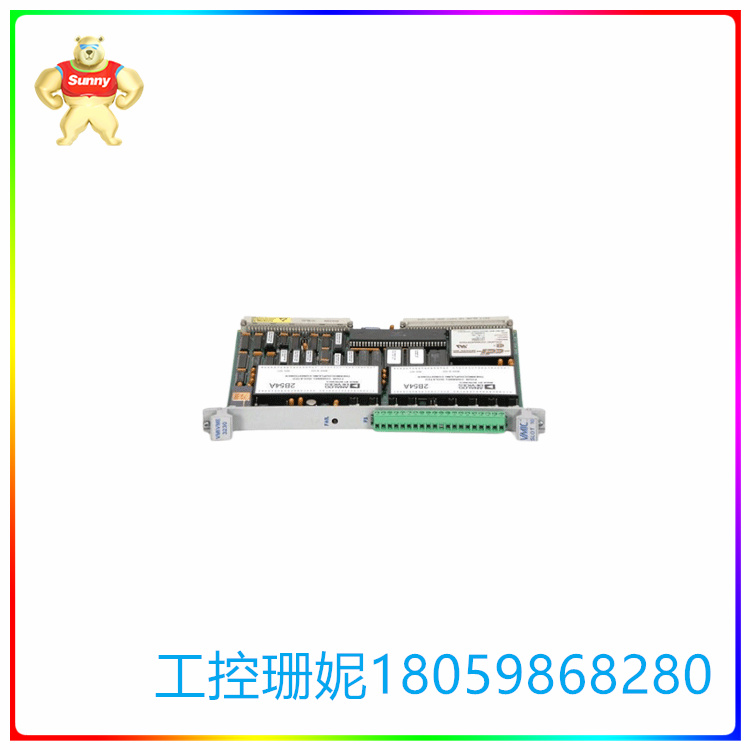

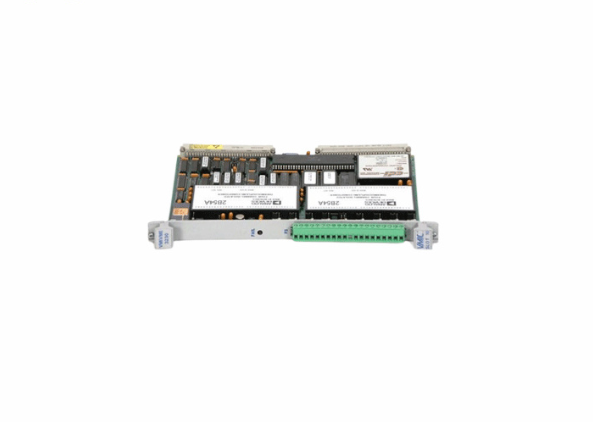

VMIVME-3230 热电偶通道板 该板执行基准温度补偿
【产品详情】
VMIVME-3230-000: • 8 个热电偶通道
部件号:
332-003230-000 M, 332-003230-000 N, 332-003230-000 P
特征:
(8) 隔离式差分输入通道
板载16位微机
同时接受多种热电偶类型
A/D 转换器,12 位加符号
本地或远程冷端补偿
VMIC / GE Fanuc VMIVME-3230 是一款 8 通道低电平输入板,专为热电偶输入而设计。该板执行基准(冷结)温度补偿,并为各种热电偶类型提供线性化。所有输入均经过滤波和隔离,并具有正常模式过压保护功能。可选配置提供高电平输入。热电偶连接在螺钉接线端子上进行,该接线端子直接连接到前面板 P3 连接器。
该设备是Abaco Systems生产和制造部门开发的产品阵容中的产品。最初,这些设备由通用电气生产,但是,该模块是从通用电气的生产中撤出的,然后由Abaco Systems购买。
该模块是 VMIC/GE Fanuc VMIVME-3230 是一款 8 通道低电平输入板,设计用于热电偶输入。
该板可对低温进行参考结补偿,并能够为各种热电偶集成产品提供线性化。所有 VMIVME-3230 输入都经过滤波和隔离。这确保了该模型的输入受到保护,并防止可能的正常过压。此模型还有一个可选配置,能够提供高电平输入。
热电偶连接在螺钉接线端子上进行,该接线端子直接连接到前面板 P3 连接器。
VMIVME-3230 单元配备了 VMEbus 地址修改器,能够解码任一 I/O 访问。提供单个跳线模块以支持短时间监控访问。
该装置能够设计出具有监控温度测量以及管理工业控制系统的应用功能。有一套机器仪表功能,还有一个集成的电流环路接收器模块。
VMIVME-3230 热电偶通道板 该板执行基准温度补偿
【英文介绍】
VMIVME-3230-000: • 8 thermocouple channels
Part Number:
332-003230-000 M, 332-003230-000 N, 332-003230-000 P
Features:
(8) Isolated differential input channel
Onboard 16-bit microcomputer
Multiple thermocouple types are accepted simultaneously
A/D converter, 12 bit plus symbol
Local or remote cold end compensation
The VMIC/GE Fanuc VMIVME-3230 is an 8-channel low-level input board designed specifically for thermocouple input. The board performs baseline (cold junction) temperature compensation and provides linearization for various thermocouple types. All inputs are filtered and isolated with normal mode overvoltage protection. Optional configuration provides high level input. The thermocouple connection is performed on the screw terminal, which is directly connected to the P3 connector on the front panel.
The device is part of the product lineup developed by Abaco Systems' Production and Manufacturing division. Initially, these devices were produced by General Electric, however, the module was withdrawn from General Electric's production and then purchased by Abaco Systems.
The module is VMIC/GE Fanuc VMIVME-3230 is an 8-channel low-level input board designed for thermocouple input.
The board provides reference junction compensation for low temperatures and can provide linearization for a variety of thermocouple integrated products. All VMIVME-3230 inputs are filtered and isolated. This ensures that the input to the model is protected and prevents possible normal overvoltages. This model also has an optional configuration that provides a high level input.
The thermocouple connection is performed on the screw terminal, which is directly connected to the P3 connector on the front panel.
The VMIVME-3230 unit is equipped with a VMEbus address modifier capable of decoding any I/O access. A single jumper module is provided to support short monitoring access.
The device can be designed with the application function of monitoring temperature measurement and managing industrial control system. A suite of machine instrumentation functions, as well as an integrated current loop receiver module.
