VMIVME-3116 高分辨率模数转换器 有板载精密电压

【产品详情】

VMIVME-3116-000：

• 无过滤器部件

特征：

16 位分辨率（跳线可选至 15 位或 14 位分辨率）

17 位时转换时间为 16 μs（高速选项时转换时间为 10 μs）

15 位时转换时间为 14 μs（高速选项时转换时间为 8.75 μs）

模拟建立/采集时间：26 μs（高速选项为15 μs）

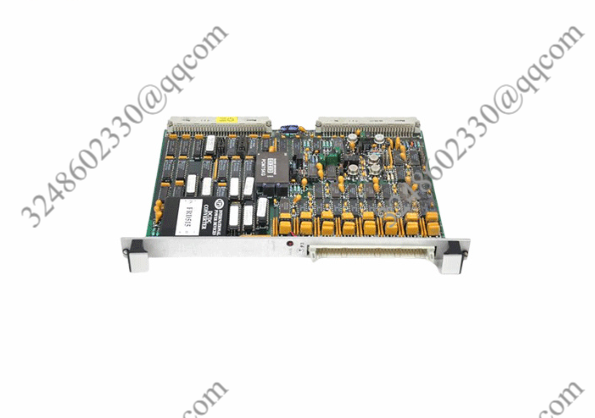

GE Fanuc / VMIC VMIVME-3116 是一款 32 通道、高分辨率模数转换器 （ADC） 板，具有内置测试 （BIT） 和自动校准的独特功能。内置测试硬件设计有板载精密电压，可读取该电压以进行故障检测和隔离。提供前面板故障 LED，该 LED 在上电或系统复位时自动亮起，并在成功完成板级诊断后熄灭。BIT概念支持离线和实时故障检测和隔离。

每个前面板输入都由一个无缓冲的自检多路复用器监控。自检多路复用器提供了一种测试所有输入的方法，并可在软件中消除缓冲放大器失调。

VMIC系列器件是具有模数转换器和数模转换器、中央处理器以及一系列模拟和数字输入输出模块配置的广泛产品。

VMIVME-3116 单元是其模数转换器板系列的一部分，具有该规范中的多项功能。本机具有 16 位分辨率，可通过跳线选择 15 位或 14 位分辨率。该装置的定时功能范围为 17 位的 16 微秒转换时间，可选的 10 微秒高速转换时间，然后是 15 位的 14 微秒转换时间，使用高速可选设置，转换时间变为 8.75 微秒。

VMIVME-3116 型号配备 26 微秒的建立和采集时间，当设置高速设置到位时，该时间可降至 15 微秒。

VMIVME-3116 配备多达 32 个通道，每个通道具有 16 位分辨率，并具有自己独特的内置测试功能以及自动校准功能。内置测试配备了设计有板载精密电压的硬件，这些电压可以读取任何故障检测和隔离。

前面板 LED 灯用于指示设备在任何时候发生故障，并在激活或系统重置时自动亮起。

VMIVME-3116 高分辨率模数转换器 有板载精密电压

【英文介绍】

Vmivme-3116000:

• No filter component

Features:

16-bit resolution (jumper optional to 15-bit or 14-bit resolution)

16μs conversion time for 17-bit (10μs conversion time for high-speed option)

14μs conversion time for 15-bit (8.75μs conversion time for high-speed option)

Simulation setup/acquisition time: 26 μs (15 μs for high-speed option)

The GE Fanuc/VMIC VMIVME-3116 is a 32-channel, high-resolution analog-to-digital converter (ADC) board with the unique capabilities of built-in test (BIT) and automatic calibration. The built-in test hardware is designed with an on-board precision voltage that can be read for fault detection and isolation. A front panel fault LED is provided that lights up automatically during power-on or system reset and turns off after successful board-level diagnosis. The BIT concept enables offline and real-time fault detection and isolation.

Each front panel input is monitored by an unbuffered self-checking multiplexer. Self-checking multiplexers provide a way to test all inputs and eliminate buffer amplifier misalignment in software.

The VMIC family of devices is a wide range of products with analog-to-digital and digital-to-analog converters, central processing units, and a range of analog and digital input/output module configurations.

The VMIVME-3116 unit is part of its family of analog-to-digital converter boards and has several functions in this specification. The unit has a 16-bit resolution and can be selected with a jumper for either 15 or 14 bit resolution. The device's timing features range from a 16-microsecond conversion time for 17 bits, an optional 10-microsecond high-speed conversion time, and then a 15-bit 14-microsecond conversion time, which changes to 8.75 microseconds with the high-speed optional setting.

The VMIVME-3116 model is equipped with a setup and acquisition time of 26 microseconds, which can be reduced to 15 microseconds when the high speed setting is in place.

The VMIVME-3116 is equipped with up to 32 channels, each with 16-bit resolution, and has its own unique built-in test function as well as automatic calibration. The built-in tests are equipped with hardware designed with on-board precision voltages that can be read for any fault detection and isolation.

Front panel LED lights are used to indicate device failure at any time and automatically light up when activated or system reset.
