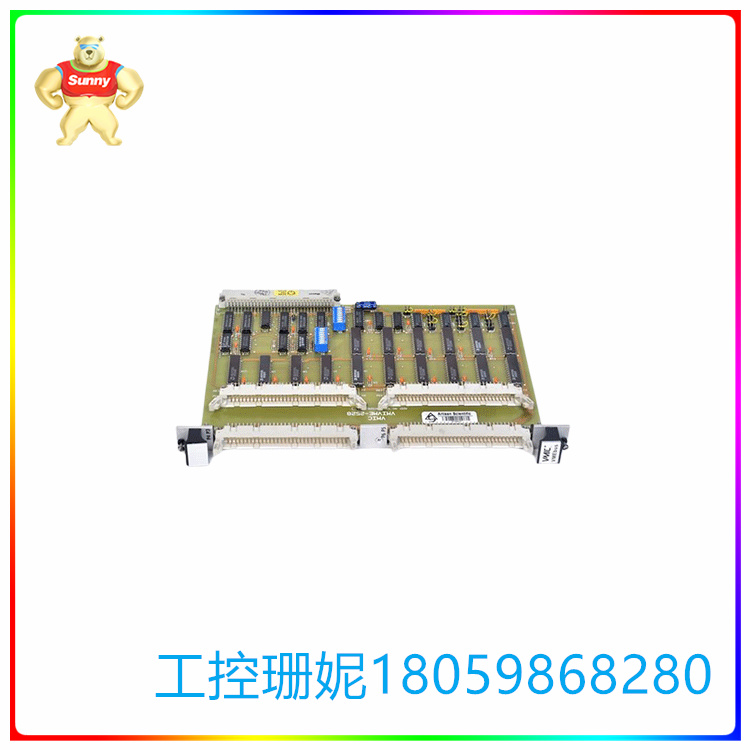

VMIVME-2528 数字输入/输出板 兼容 I/O

【产品详情】

概述

特征：

128 位 TTL 兼容 I/O

单独的端口方向控制跳线

24 mA 输出吸电流能力

8 位或 16 位传输

VMIC / GE Fanuc VMIVME-2528 128 位 TTL 数字输入/输出板是兼容 VMEbus 规范的双高外形尺寸。它具有 64 针 DIN 41612 型 I/O 连接器。它带有 8 个 I/O 端口，宽度为 16 位。可寻址到短监控或短非特权 I/O 映射中的任何地址。提供单独的端口方向控制跳线。2528 个端口可在 2528 位或 2528 位边界上单独寻址。<> 个 DIP 开关提供无限制的短数据 I/O 地址映射选择。

VMIVME-2528 系列

该单元是VMIC设备阵列中的一种设备，设计有多种不同的功能，包括模拟到数字转换器板、中央处理器单元板以及各种输入和输出板。VMIC设备均为通用电气工业自动化部门的原创产品。然而，这些装置后来被从生产线上撤下，然后这个系列后来被 Abaco Systems 收购。

VMIVME-2528 单元是 128 位型号的 TLL 数字输入和输出板。VMIVME-2528 单元的 VMEbus 附件集成了一组与双倍高度外形兼容的规格。该型号配备的其他组件包括输入和输出连接模块，带有 64 型针 DIN 41612。本机中集成了一组 16 个输入和输出端口，宽度为 8 位。它们可以寻址到位于短监控或非特权、短输入和输出映射中的任何地址。

VMIVME-2528 单元的其他功能包括用于 16 个可单独寻址端口的一系列独立端口方向控制跳线，以及高达 24 毫安的输出电流吸收能力。本机可以处理的数据传输分为 8 位和 16 位传输。有 <> 个 DIP 开关阵列，能够提供无限的短数据输入/输出地址映射选择。

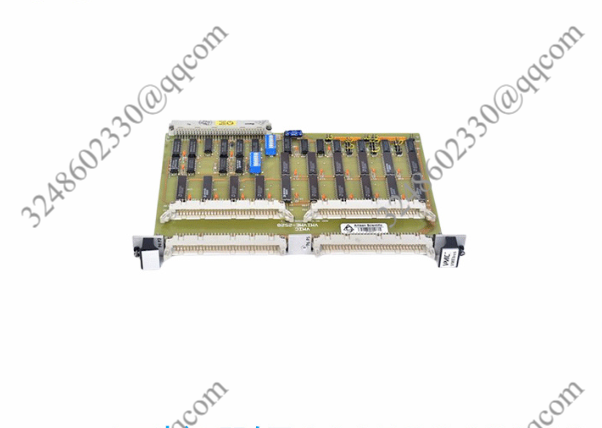

VMIVME-2528 数字输入/输出板 兼容 I/O

【英文介绍】

summarize

Features:

128-bit TTL is compatible with I/O

Separate port direction control jumper

24 mA Output current absorption capability

8-bit or 16-bit transmission

The VMIC/GE Fanuc VMIVME-2528 128-bit TTL digital input/output board is a double-height form factor compatible with the VMEbus specification. It has a 64-pin DIN 41612 type I/O connector. It comes with 8 I/O ports and is 16 bits wide. Can be addressed to any address in a short monitor or short unprivileged I/O map. Provides a separate port direction control jumper. 2528 ports can be individually addressed on 2528-bit or 2528-bit boundaries. <> DIP switches provide unlimited selection of short data I/O address mappings.

VMIVME-2528 series

The unit is one of the devices in the VMIC device array designed with a variety of different functions, including an analog to digital converter board, a central processor unit board, and various input and output boards. VMIC devices are original products of GE's Industrial automation division. However, these units were later removed from the production line, and then the series was later acquired by Abaco Systems.

The VMIVME-2528 unit is a 128-bit model of TLL digital input and output board. The VMEbus attachment of the VMIVME-2528 unit integrates a set of specifications compatible with the double-height form factor. Other components included in this model include input and output connection modules with type 64 pin DIN 41612. The machine integrates a set of 16 input and output ports with a width of 8 bits. They can be addressed to any address located in a short monitor or unprivileged, short input and output map.

Additional features of the VMIVME-2528 unit include a series of independent port direction control jumpers for 16 individually addressable ports and an output current absorption capability of up to 24 mA. The data transfers that the machine can handle are divided into 8-bit and 16-bit transfers. There are <> arrays of DIP switches that provide unlimited options for short data input/output address mapping.

VMIVME-2528 数字输入/输出板 兼容 I/O
