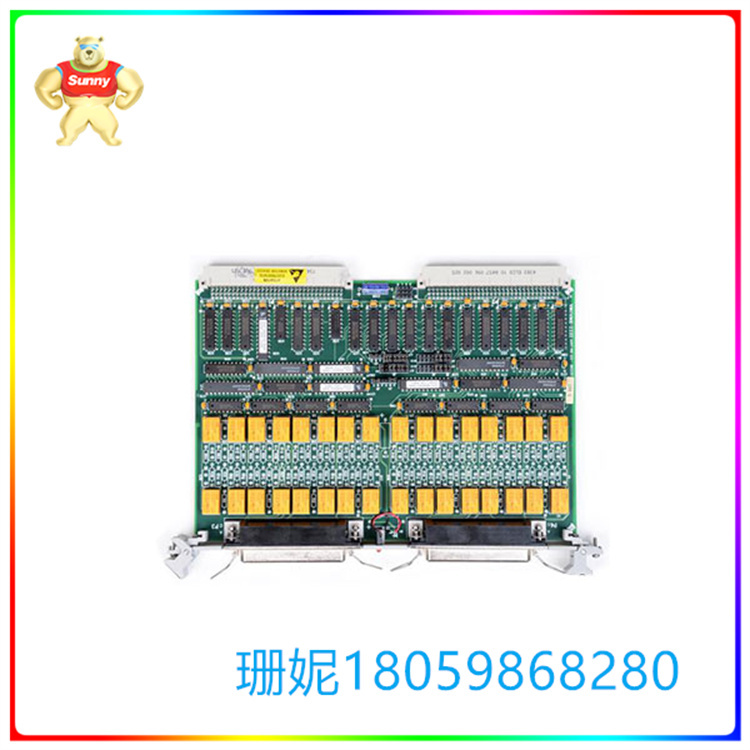

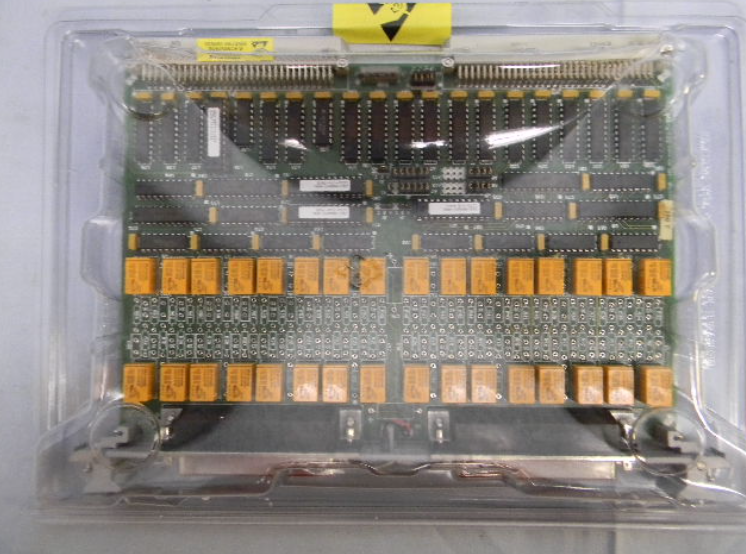

VMIVME-2232  内置测试的 32 通道继电器输出板

【产品详情】

概述

特征：

32 个继电器输出通道 SPDT（每个通道一个 C 型继电器）

60 W、125 VAC 最大开关功率

220 VDC、250 VAC 最大开关电压

2 A 最大开关电流

3 A 最大承载电流

内置测试（测试所有有源组件）

带故障 LED 的前面板

兼容VMIC的智能I/O控制器系列（VMIVME-90xx系列）

8 位、16 位或 32 位数据传输

VMIC / GE Fanuc VMIVME-2232 32 通道继电器输出板，带内置测试 （BIT），由用于控制 8 个继电器的 32 位数据寄存器组成。该板将支持字节、字和长字数据传输。它采用内置测试电子设备设计，使用户能够测试电路板上的所有电子电路。可以回读写入数据寄存器以及控制和状态寄存器 （CSR） 的数据，以验证操作是否正确。

该装置是VMIC系列设备的一部分，例如CPU模块，模数转换器板以及输入和输出板。该装置是 VMIVME-2232，一个 32 位通道继电器输出板。VMIC系列设备最初由通用电气的自动化工业生产部门设计、开发和生产，后来该系列被Abaco Systems收购。

VMIVME-2232 模块配备多达 32 个继电器通道，每个通道一个 C 型继电器。该 VMIC 模块的触点额定值包括 60 瓦的设置和开关电源时的 125 伏交流电，或 220 伏直流电和 250 伏交流电。最大开关电流为 2 安培，最大承载电流为 3 安培。

VMIVME-2232 模块还配备了一系列可选的保护电子设备，而 VMIVME-2232 则使用直流电运行。数据传输功能的大小范围为 8 位、16 位或 32 位。VMIVME-2232 单元配备了能够进行 VMIC 标准自检和分析逻辑的编程。这确保了所有有源组件都通过彻底的诊断进行检查。

该模块配备了一个前面板，还包括一个故障指示灯 LED 灯。本机与多个智能输入和输出控制器单元兼容。

VMIVME-2232  内置测试的 32 通道继电器输出板

【英文介绍】

summarize

Features:

32 relay output channels SPDT (one type C relay per channel)

60 W, 125 VAC maximum switching power

220 VDC, 250 VAC maximum switching voltage

2 A Maximum switching current

3 A Maximum carrying current

Built-in testing (tests all active components)

Front panel with faulty LED

Intelligent I/O Controller series compatible with VMIC (VMIVME-90xx Series)

8 bit, 16 bit or 32 bit data transfer

VMIC/GE Fanuc VMIVME-2232 32 channel relay output board with built-in test (BIT), consisting of 32 bit data registers for controlling 8 relays. The board will support byte, word, and long word data transfers. Designed with built-in test electronics, it enables users to test all electronic circuits on the board. Data into the data register and the control and status register (CSR) can be read and written back to verify that the operation is correct.

The device is part of the VMIC family of devices, such as CPU modules, analog-to-digital converter boards, and input and output boards. The device is the VMIVME-2232, a 32-bit channel relay output board. The VMIC family of devices was originally designed, developed and produced by General Electric's Automated Industrial Production division, which was later acquired by Abaco Systems.

The VMIVME-2232 module is equipped with up to 32 relay channels, one type C relay for each channel. The VMIC module's contact ratings include 125 volts AC at 60 watts of setup and switching power, or 220 volts DC and 250 volts AC. The maximum switching current is 2 amps and the maximum carrying current is 3 amps.

The VMIVME-2232 module is also equipped with a range of optional protective electronics, while the VMIVME-2232 operates on direct current. The size of the data transfer function ranges from 8 bits, 16 bits or 32 bits. The VMIVME-2232 unit is equipped with programming capable of performing VMIC standard self-tests and analytical logic. This ensures that all active components are checked through thorough diagnostics.

The module is equipped with a front panel and also includes a fault indicator LED light. This unit is compatible with multiple intelligent input and output controller units.
