VMIVME-2120-115N 电极开路输出驱动器 验证每个通道的操作
【产品详情】
概述
特征:
1 插槽 B 型 VMEbus 卡
大电流驱动器(600 mA 灌电流)
高击穿电压 (55 V)
VMIVME-2120 能够提供 64 个通道的高电压和/或高电流吸收输出。VMIVME-2120 集电极开路输出驱动器能够支持 5 VDC 至 48 VDC 的输出电压。VMIVME-2120 板卡的一个独特功能是内置测试 (BIT) 逻辑,它允许用户在软件控制下验证每个通道的操作。

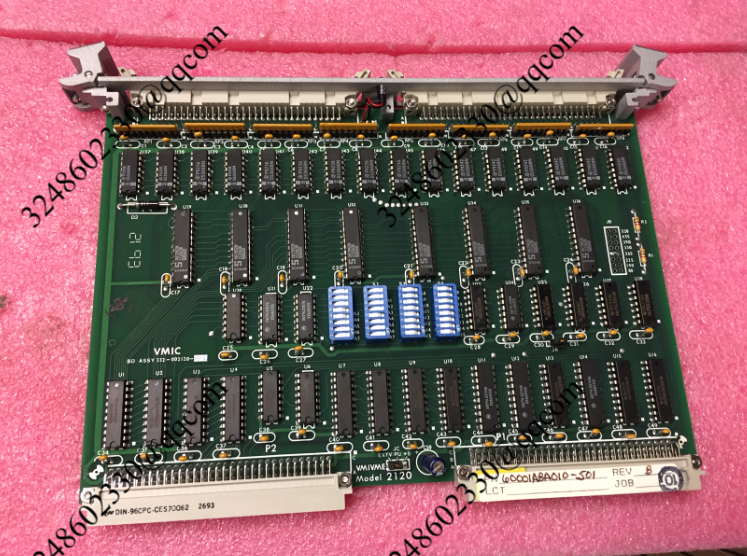

VMIVME-2120-115N
该装置属于一系列转换器板模块,最初是通用电气工业自动化部门的产品,但后来被 Abaco Systems 收购,然后再次停产。
本机被指定为 VMIVME-2120-115N,一种高音量tage 数字输出模块。这些类型的装置配备了一系列高压通道,带有 600 毫安灌电流的大电流驱动器。该装置的高击穿电压至少为 48 伏直流电,可处理高达 55 伏直流电的摄入。
VMIVME-2120-115N 单元是 64 位高压数字输出,具有一系列内置测试和分析功能。该型号配备了热保护关断选项以及输出箝位二极管,其中包括一系列电感反激保护。
VMIVME-2120-115N 的内置测试功能旨在运行一系列逻辑隔离分析和查询。输入和输出连接器端口设计为高可靠性的DIN型端口。VMIVME-2120-115N 设备可用于处理和处理的数据传输范围为 8 位、16 位和 32 位传输。
VMIVME-2120-115N 还具有双 Eurocard 外形尺寸,以及单独的板地址解码功能,用于控制和数据寄存器。
VMIVME-2120-115N 电极开路输出驱动器 验证每个通道的操作
【英文介绍】
summarize
Features:
Type B VMEbus card with 1 slot
High current driver (600 mA)
High breakdown voltage (55 V)
The VMIVME-2120 is capable of providing 64 channels of high voltage and/or high current absorption outputs. The VMIVME-2120 collector open output driver supports output voltages from 5 VDC to 48 VDC. A unique feature of the VMIVME-2120 board is the built-in Test (BIT) logic, which allows the user to verify the operation of each channel under software control.
VMIVME-2120-115N
The device belongs to a family of converter board modules that were originally a product of General Electric's Industrial automation division, but were later acquired by Abaco Systems and then discontinued again.
This unit is designated VMIVME-2120-115N, a high volume tage digital output module. These types of devices are equipped with a series of high voltage channels with a high current driver with a 600 mA filling current. The device has a high breakdown voltage of at least 48 volts DC and can handle ingestion of up to 55 volts DC.
The VMIVME-2120-115N unit is a 64-bit high-voltage digital output with a range of built-in test and analysis capabilities. This model is equipped with a thermal protection turn-off option as well as an output clamp diode that includes a range of inductive flyback protection.
The VMIVME-2120-115N's built-in test capabilities are designed to run a series of logically isolated analyses and queries. The input and output connector ports are designed as DIN ports with high reliability. The VMIVME-2120-115N device can be used for processing and processing data transmission in the range of 8-bit, 16-bit and 32-bit transmission.
The VMIVME-2120-115N also features a dual Eurocard form factor, as well as a separate board address decoding function for control and data registers.
VMIVME-2120-115N 电极开路输出驱动器 验证每个通道的操作
