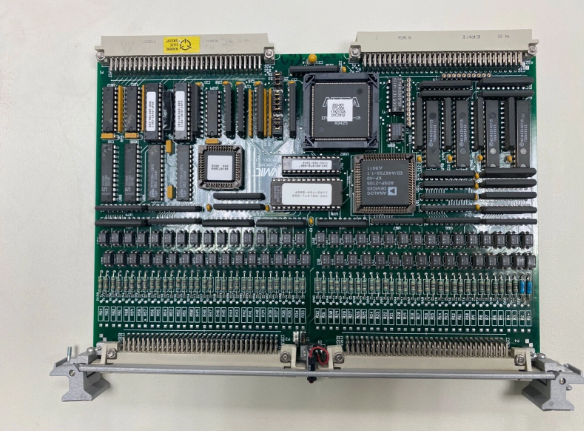

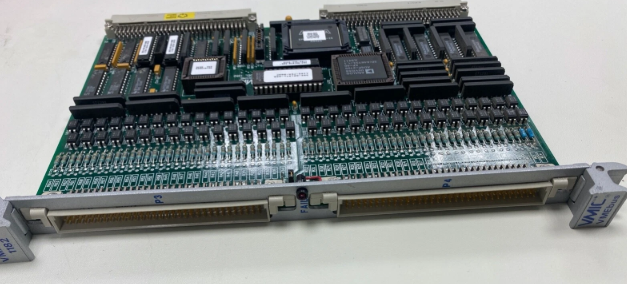

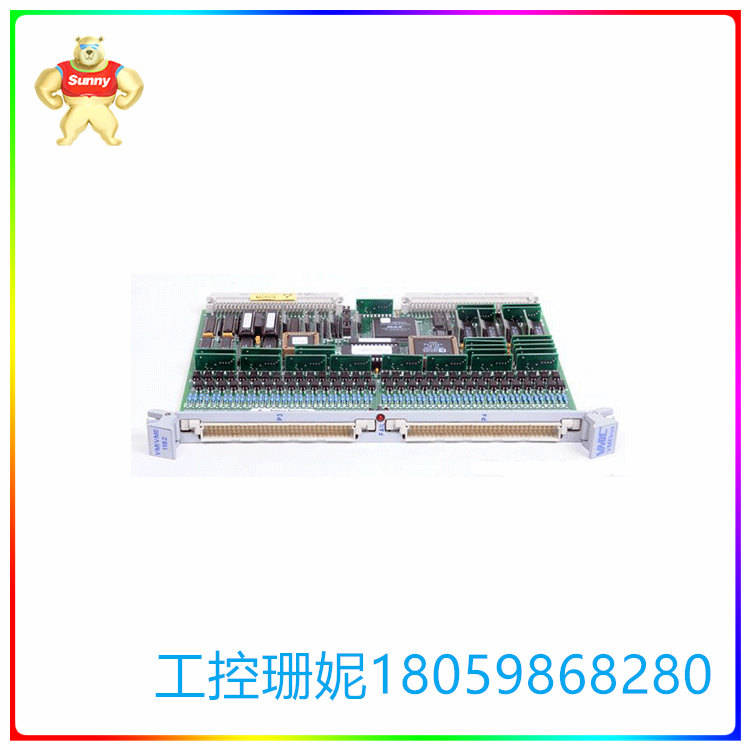

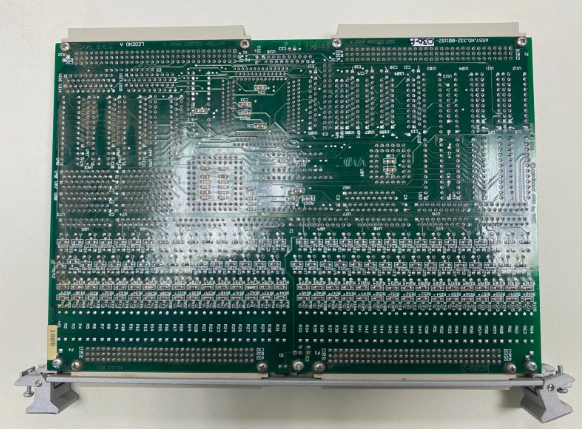

VMIVME-1182 数字量输入模块 隔离式数字输入板

【产品详情】

概述

特征：

64 个光隔离输入

每个通道提供多种功能

每通道脉冲累积高达 65,535 个脉冲

逐个渠道的 SOE 监控

GE Fanuc / VIMC VMIVME-1182 提供 64 个数字输入，可用于检测状态变化 （COS）、标记时间和计数。可以对板载缓冲区进行编程，以存储带有时间标签的 COS 信息，以便可以分析 SOE。提供脉冲累加器来计算 COS。VMIVME-1182 还可以编程为在检测到 COS 时发出中断。所有 COS 检测均基于每个通道，可有效创建 64 个脉冲累加器。

VMIVME-1182 系列

VMIVME-1182 是一款 64 通道隔离式数字输入板，带有多功能智能控制器。该装置最初由通用电气设计和生产，他们的子公司GE Fanuc Automation随后由Abaco Systems生产。

VMIVME-1182 型号本身具有许多此类装置的几个标准功能。该型号集成了一系列 64 个光隔离输入，每个通道内提供多种功能。有状态更改 （COS） 和事件序列 （SOE）。其他功能设置包括脉冲累积、时间标记和可编程去抖动时间。VMIVME-1182 所需的标称工作输入为 5 至 250 伏的直流电，或者 4 至 240 伏的交流电。从一个通道到另一个通道，需要 1500 伏直流电，或 1100 伏 RMS。从通道到VME隔离也可以看出这一点。

状态更改 （COS） 功能都能够处理计时和检测。VMIVME-1182 单元每毫秒锁存多个输入信号。本机的每个输入通道都是完全独立的，并单独处理。状态更改计时可以用 0 到 65 秒的计时器值进行标记，也可以使用时间标记寄存器进行初始化或预设。

VMIVME-1182 模块专为数据采集系统、核电站监控和管理控制系统中的应用而设计。

VMIVME-1182 数字量输入模块 隔离式数字输入板

【英文介绍】

summarize

Features:

64 optical isolated inputs

Each channel provides multiple functions

Up to 65,535 pulses per channel

Channel by channel SOE monitoring

The GE Fanuc/VIMC VMIVME-1182 provides 64 digital inputs that can be used to detect state changes (COS), mark time, and count. An onboard buffer can be programmed to store time-labeled COS information so that the SOE can be analyzed. Provides a pulse accumulator to calculate COS. The VMIVME-1182 can also be programmed to issue an interrupt when COS is detected. All COS detections are based on each channel, effectively creating 64 pulse accumulators.

VMIVME-1182 series

The VMIVME-1182 is a 64-channel isolated digital input pad with a multi-function intelligent controller. The unit was originally designed and produced by General Electric, and their subsidiary GE Fanuc Automation was subsequently produced by Abaco Systems.

The VMIVME-1182 model itself has several standard features for many such devices. This model integrates a series of 64 optical isolated inputs, providing multiple functions within each channel. There are state changes (COS) and event sequences (SOE). Additional feature Settings include pulse accumulation, time marking, and programmable dejitter time. The nominal working inputs required for the VMIVME-1182 are 5 to 250 volts of direct current, or 4 to 240 volts of alternating current. To get from one channel to the other, 1500 volts of direct current, or 1100 volts of RMS, is required. This can also be seen from channel to VME isolation.

The Status Change (COS) function is capable of handling timing and detection. The VMIVME-1182 unit latches multiple input signals every millisecond. Each input channel of the machine is completely independent and handled separately. The state change timing can be marked with a timer value of 0 to 65 seconds, or it can be initialized or preset using a time stamp register.

The VMIVME-1182 module is designed for applications in data acquisition systems, nuclear power plant monitoring and management control systems.
