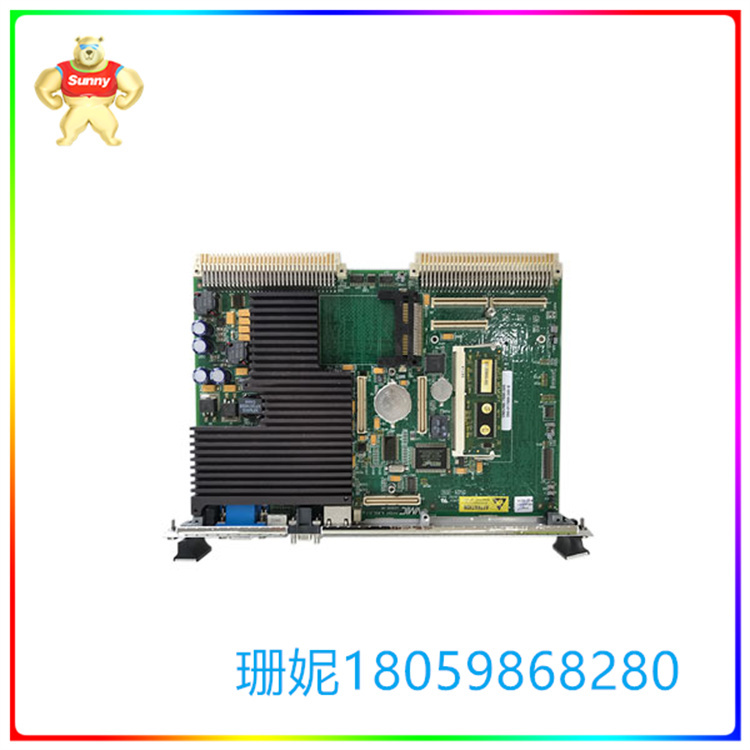

VMIVME-7698-345 单插槽赛扬插槽

【产品详情】

概述

特征：

Celeron Socket 370 处理器

具有 64 MB SGRAM 的 2 位英特尔® AGP SVGA 控制器

板载快速以太网控制器，支持 10BaseT 和 100BaseTX 接口

板载 Ultra DMA/33 硬盘和 Foppy 硬盘控制器，带 VMEbus P2 I/O

两个高性能 16550 兼容串行端口

前面板上的 PS/2 式键盘和鼠标端口

VME64 连接器

Abaco Systems / VMIC VMIVME-7698 单插槽赛扬插槽 370 处理器基于 VME / VME64 单板计算机具有带 MMX™ 的英特尔赛扬处理器。赛扬处理器具有 32 位寻址和 64 位数据总线。板载 DRAM 是双端口到 VMEbus 的。系统和视频 BIOS 在可重新编程的闪存中提供。VMIVME-7698 为用户提供了三个兼容 16C82 的 54 位定时器（除系统定时器外）。这些定时器映射在 I/O 空间中，并且完全可通过软件编程。

VMIVME-7698-146

VMIC系列产品最初由通用电气的自动化工业生产部门制造和开发，后来被Abaco Systems收购。这些器件具有模数或数模转换板、中央处理器以及一组模拟或数字输入和输出模块等功能。VMIVME-7698-146 模块是作为单板计算机构建的。

VMIVME-7698-146 单元配备赛扬单插槽 Socket 370 处理器。它采用的操作系统能够支持 Windows NT 和 Windows 2000，然后是 Linux、VxWorks、QNX 和 Solaris。

VMIVME-7698-146 模块为嵌入式应用配备了一系列特殊功能。有多达 512 兆字节的 IDE CompactFlash（可选）。该器件有三个可编程 16 位定时器，具有 32 KB 的电池备份 SRAM。本机能够支持远程以太网启动，并配备了集成的软件可选看门狗定时器（带复位功能）

VMIVME-7698-146 能够支持 VMEbus P2 与 HD/软盘驱动器的连接。有一个带有 VMEbus P2 输入和输出的 PMC 扩展站点。支持 PC MIP 扩展站点以及 VME64 模式 （A32/A24/D32/D16/D08/MBLT64/BLT32）。

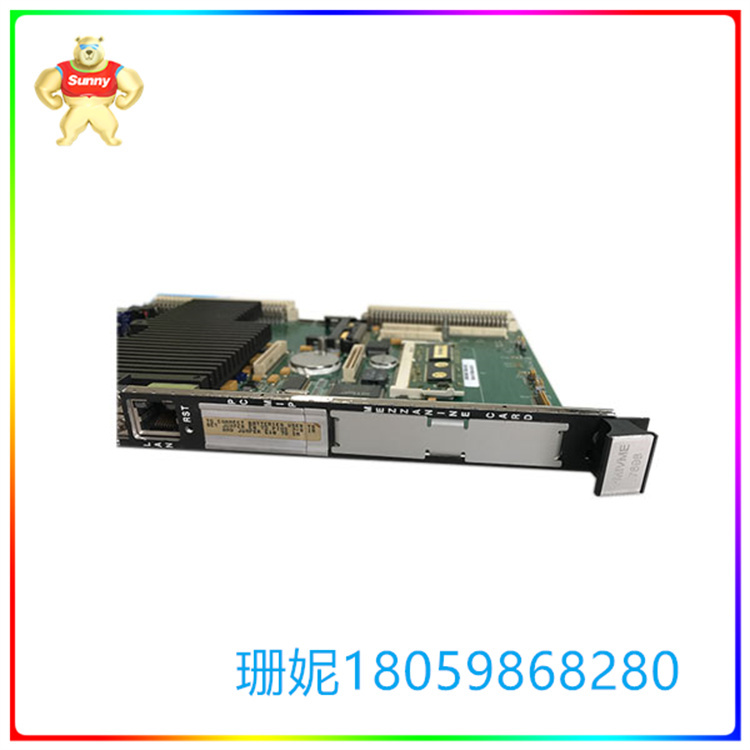

VMIVME-7698-345 单插槽赛扬插槽

【英文介绍】

summarize

Features:

Celeron Socket 370 processor

2-bit Intel ® AGP SVGA controller with 64 MB SGRAM

Onboard fast Ethernet controller with 10BaseT and 100BaseTX interfaces

Onboard Ultra DMA/33 hard disk and Foppy hard disk controller with VMEbus P2 I/O

Two high-performance 16550 compatible serial ports

PS/2 keyboard and mouse ports on the front panel

VME64 connector

Abaco Systems/VMIC VMIVME-7698 Single-slot Celeron Slot 370 processor Based on VME/VME64 single-board computers have Intel Celeron processors with MMX™. Celeron processors have 32-bit addressing and 64-bit data buses. Onboard DRAM is dual-port to VMEbus. The system and video BIOS are provided in reprogrammable flash memory. The VMIVME-7698 provides users with three 16C82-compatible 54-bit timers (in addition to the system timer). These timers are mapped in the I/O space and are fully programmable by software.

VMIVME-7698-146

The VMIC family of products was originally manufactured and developed by General Electric's Automated Industrial Production division and later acquired by Abaco Systems. These devices feature an analog-digital or digital-to-analog conversion board, a central processing unit, and a set of analog or digital input and output modules. The VMIVME-7698-146 module is built as a single board computer.

The VMIVME-7698-146 unit is equipped with a Celeron single-socket Socket 370 processor. It uses an operating system capable of supporting Windows NT and Windows 2000, followed by Linux, VxWorks, QNX and Solaris.

The VMIVME-7698-146 module is equipped with a range of special features for embedded applications. There are up to 512 megabytes of IDE CompactFlash (optional). The device has three programmable 16-bit timers with 32 KB of battery backup SRAM. This unit supports remote Ethernet boot and comes with integrated software optional watchdog timer (with reset function)

The VMIVME-7698-146 supports the connection of VMEbus P2 to HD/ floppy disk drives. There is a PMC extension site with VMEbus P2 input and output. Support PC MIP extended sites and VME64 mode (A32 / / D32 A24 / D16 / D08 / MBLT64 / BLT32).

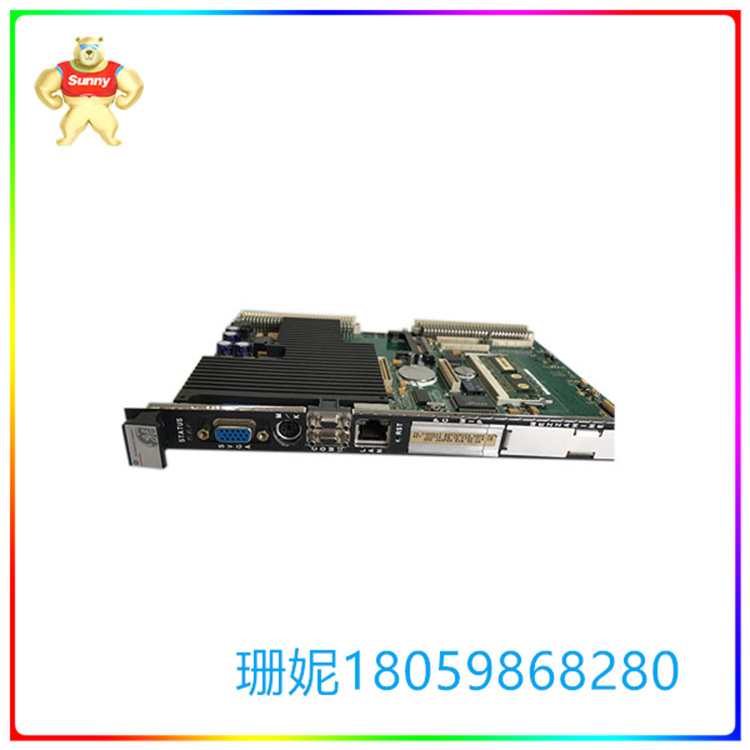

VMIVME-7698-345 单插槽赛扬插槽
