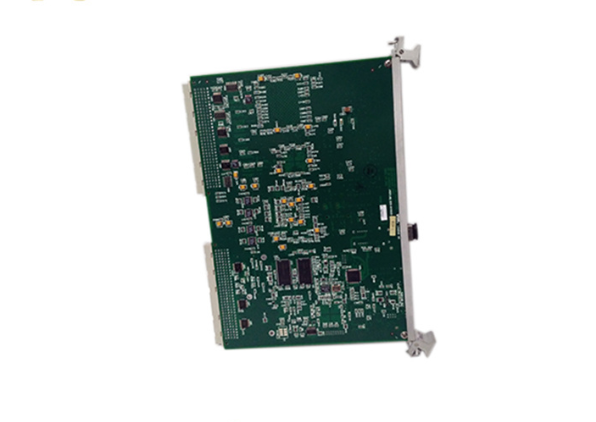

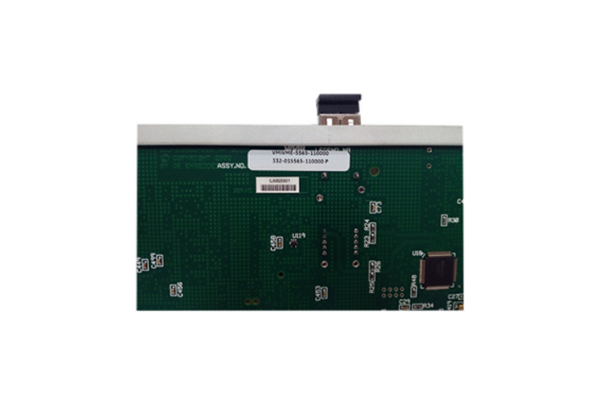

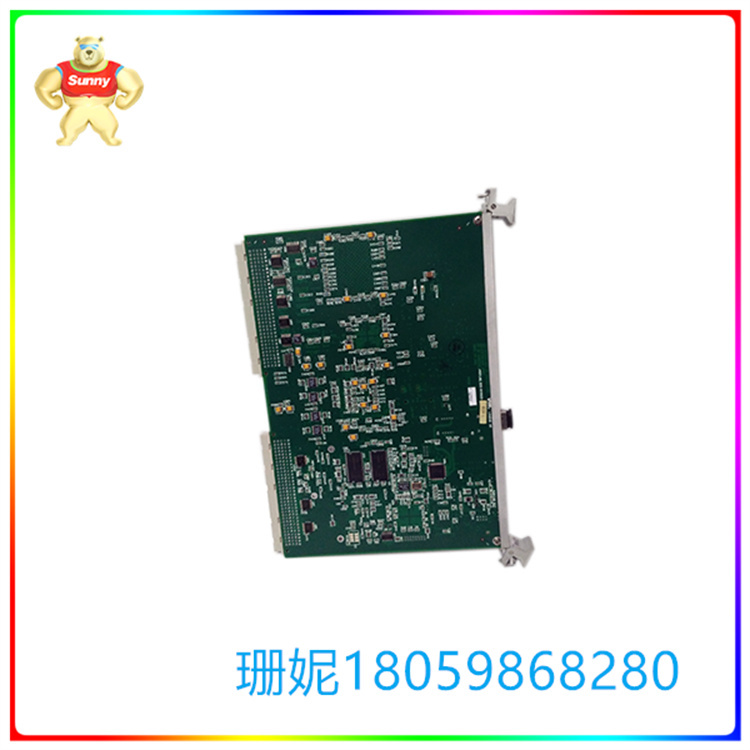

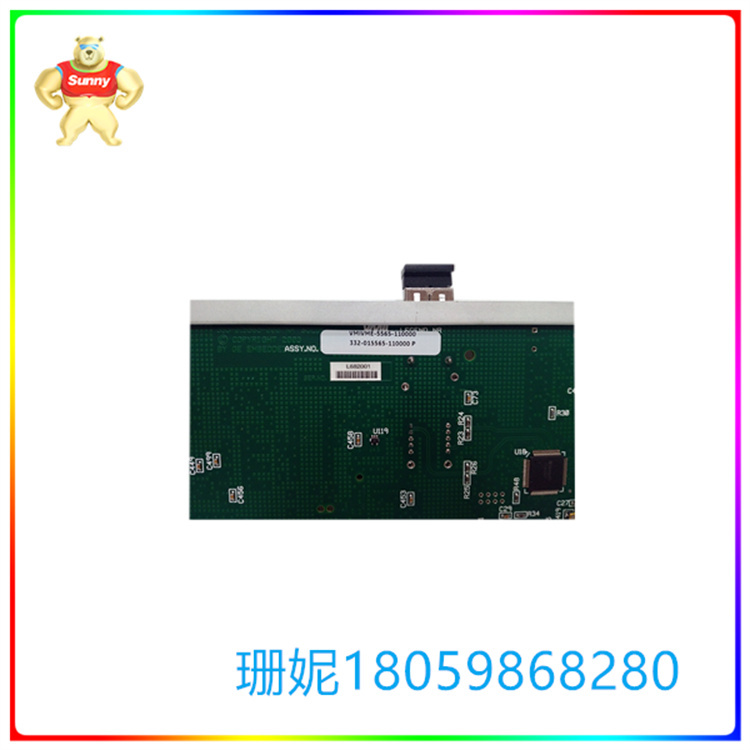

VMIVME-5565  反射式存储器节点卡

【产品详情】

概述

VME-5565 反射式存储器节点卡提供高速、低延迟、确定性接口，允许在多达 256 个独立系统（节点）之间以高达 170 MB/s 的速率共享数据。每个反射式存储板都可以配置64 MB或128 MB的板载SDRAM。本地 SDRAM 提供对存储数据的快速读取访问时间。写入存储在本地SDRAM中，并通过高速光纤数据路径广播到其他反射式存储器节点。节点之间的数据传输是软件透明的，因此不需要 I/O 开销。发送和接收FIFO在峰值数据速率期间缓冲数据，以优化处理器和总线性能，以保持高数据吞吐量。

网络传输速率为 43 MB/s（4 字节数据包）到 170 MB/s（64 字节数据包）

动态数据包大小，4 到 64 字节的数据

多达 256 个节点

连接多模光纤长达 300 米，单模光纤长达 10 公里

在一个节点中写入内存的数据也会写入网络上所有节点的内存中

高速、易于使用的光纤网络（串行 2.12 Gbaud）

VME 传输速率 40 MB

64 MB 或 128 MB SDRAM 反射式存储器

支持任何节点的中断传输

128 或 256 MB 板载 SRAM

GE Fanuc / VMIC VMIVME-5565反射式内存节点卡是一种基于光环的超高速共享内存网络解决方案。它允许分布式网络以确定性速率共享实时数据，而不受总线结构和操作系统的影响。它以创新且高效设计的硬件平台为中心，该平台易于使用，提供节点之间的更大距离、高抗噪性、可选的节点旁路且无软件开销。只需读取和写入板载内存，反射式内存节点控制器即可完成其余工作。

VMIVME-5565  反射式存储器节点卡

【英文介绍】

summarize

The VME-5565 reflective memory node card provides a high-speed, low-latency, deterministic interface that allows data to be shared between up to 256 independent systems (nodes) at rates of up to 170 MB/s. Each reflective memory board can be configured with either 64 MB or 128 MB of onboard SDRAM. Local SDRAM provides fast read access time to stored data. Writes are stored in local SDRAM and broadcast to other reflective memory nodes via high-speed fiber data paths. Data transfers between nodes are software-transparent, so there is no I/O overhead. Transmit and receive FIFOs buffer data during peak data rates to optimize processor and bus performance to maintain high data throughput.

Network transfer rates from 43 MB/s (4-byte packets) to 170 MB/s (64-byte packets)

Dynamic packet size, 4 to 64 bytes of data

Up to 256 nodes

The multi-mode fiber is up to 300 meters long and the single-mode fiber is up to 10 kilometers long

Data written to memory in one node is also written to memory in all nodes on the network

High-speed, easy-to-use fiber optic network (serial 2.12 Gbaud)

VME transfer rate 40 MB

64 MB or 128 MB SDRAM reflective memory

Support for interrupt transmission of any node

128 or 256 MB of onboard SRAM

The GE Fanuc/VMIC VMIVME-5565 Reflective memory node card is an aural-based, ultra-high-speed shared memory network solution. It allows a distributed network to share real-time data at a deterministic rate, regardless of bus structure and operating system. It centers on an innovative and efficiently designed hardware platform that is easy to use, offers greater distance between nodes, high noise resistance, optional node bypass, and no software overhead. Just read and write to the onboard memory, and the reflective memory node controller does the rest.
