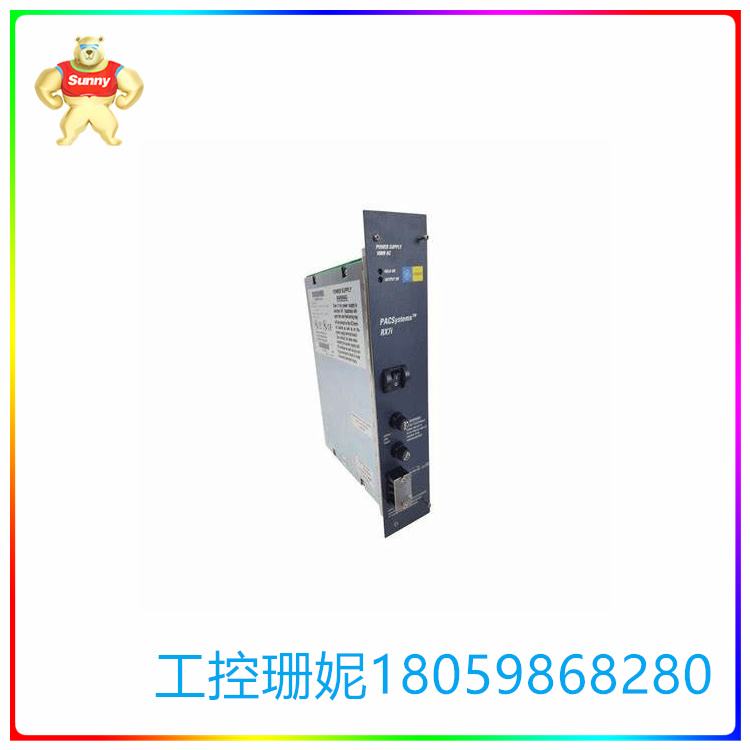

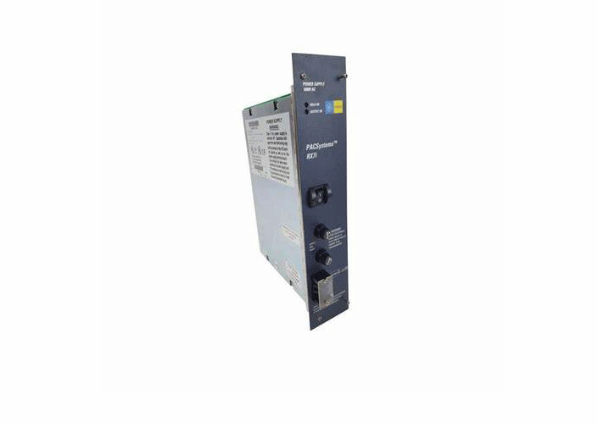

GE IC698PSD300 电源模块 高容量电源单元

【产品详情】

GE IC698PSD300模块是GE Fanuc在Rx7i PACsystem系列中制造的电源模块。它的额定功率为 300 瓦，额定电压为 24 伏直流电。它是一种高容量电源单元，与 Rx7i PACsystem 系列 PLC 组件兼容。电源单元的浪涌电流最大为 100 安培。从输入到所有输出的隔离是 250 伏交流连续，1500 分钟为 1 伏交流。该电源具有大量功能。它是智能的，并具有多项安全功能。它具有诊断功能，可以在操作过程中跟踪问题和问题。它提供过热、过流和不同故障条件的保护。

IC698PSD300模块配备 3 个 LED，可显示不同的操作更新。这些 LED 与电源中的气流传感器一起工作。可以使用电源上的跳线启用或禁用气流传感器。电源模块可以很容易地安装在左侧机架的插槽 0 中。IC698PSD300模块的环境温度是通过使用安装在机架上的风扇的强制风冷方法来保持的。环境温度应设置在 0 到 60 摄氏度之间，以便以 70 CFM 的风冷额定值全面运行。为保护设备免受系统噪音的影响，应将其正确接地并固定安装螺钉。电源模块的正面有铜输入端子。

GE IC698PSD300 电源模块 高容量电源单元

【英文介绍】

The GE IC698PSD300 module is a power module manufactured by GE Fanuc in the Rx7i PACsystem series. It has a power rating of 300 watts and a rated voltage of 24 volts DC. It is a high capacity power supply unit compatible with Rx7i PACsystem series PLC components. The inrush current of the power supply unit is up to 100 amps. The isolation from the input to all outputs is 250 volts AC continuously and 1 volt AC for 1500 minutes. The power supply has a large number of functions. It is smart and has several security features. It has diagnostic capabilities to track issues and problems during operation. It provides protection against overheat, overcurrent and different failure conditions.

The IC698PSD300 module is equipped with 3 leds to display different operational updates. These leds work with airflow sensors in the power supply. The air flow sensor can be enabled or disabled using the jumper on the power supply. The power module can be easily installed in slot 0 of the left rack. The ambient temperature of the IC698PSD300 module is maintained by a forced air cooling method using a fan mounted on the rack. The ambient temperature should be set between 0 and 60 degrees Celsius for full operation at an air-cooled rating of 70 CFM. To protect the device from system noise, it should be properly grounded and secured with mounting screws. The front side of the power module has copper input terminals.

GE IC698PSD300 电源模块 高容量电源单元
