IC698CPE020 机架式中央处理模块 电气负载

【产品详情】

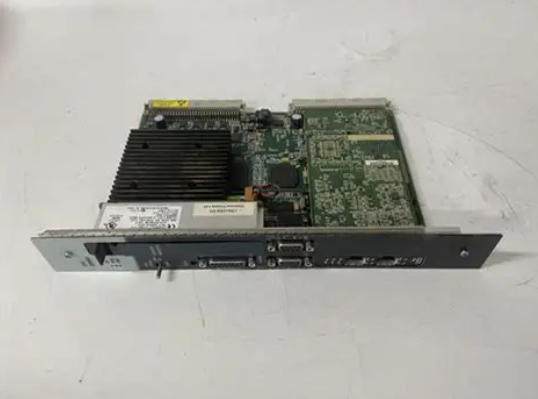

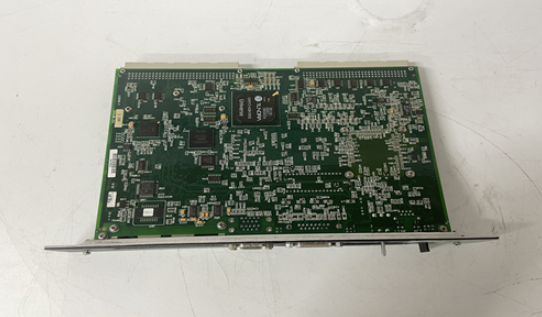

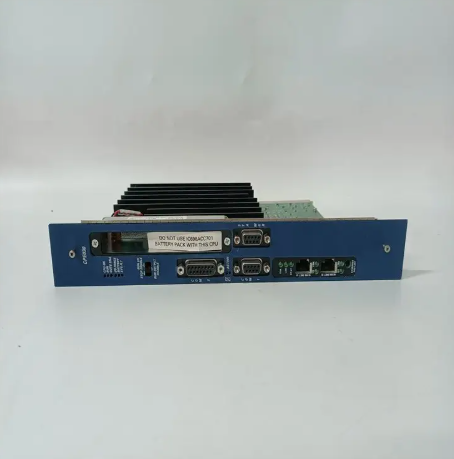

该IC698CPE020是艾默生自动化 PACSystem RX7i 可编程自动化控制器 （PAC） 平台的机架式中央处理模块 （CPU），前身为 GE 智能平台 （GE IP）。该CPU模块主要用于处理下载的用户程序，以执行和驱动连接的电气负载。

该IC698CPE020配有一个 Pentium III、700 MHz 微处理器，集成了 10 MB 用户存储器和 10 MB 非易失性或闪存。它具有 I/O 存储器，设计用于处理高达 32Kbits 的离散 %I 和 %Q，以及高达 32K 字的模拟 %AI 和 %AQ。 最多可将 512 个程序块下载到该处理器，最大单个块大小为 128 KB。

该 CPU 内置两 （2） 个以太网端口，支持 10/100 mbps 的传输速率，兼容以太网全局数据 （EGD）、TCP/IP 通信服务，使用 SRTP、Modbus/TCP 服务器和 Modbus/TCP 客户端，也可用作主要编程和配置端口。这些以太网端口是嵌入式交换机端口，只需要一个以太网 I/P 地址。对于 CPU 版本 5.0 或更高版本，这些 CPU 端口可用于时间同步。

除以太网端口外，该模块还具有三 （3） 个隔离串行端口，支持 RS232 和 RS485 标准。两 （2） 个串行端口可用于数据通信，因为这些端口与 Modbus RTU Slave、SNP、串行 I/O 兼容。其余串口用作以太网站管理器端口。

该IC698CPE020配备了可升级的固件，具有集成的数据监控功能。它总共有 16 个 Web 服务器和 FTP 连接。

GE Fanuc IC698CPE020 CPU 是 RX7i 系列性能控制器的中央处理器，旨在提供跨多个硬件平台的应用灵活性。完全编程和配置的 IC698CPE020 CPU 可以对应用程序和机器进程进行实时控制，并通过 Rx7i 背板与多个 I/O 设备进行通信。IC698CPE020 CPU 采用 VME64 架构构建，支持多种 VME 嵌入式技术，具有快速的数据吞吐量，并且可以通过嵌入式以太网端口与大量人机界面设备 （HMI） 进行通信。IC698CPE020 CPU 配备一个 700 兆赫兹的奔腾 III 微处理器和一个 10 兆字节的 RAM 和一个 10 兆字节的非易失性闪存，用于存储用户数据和程序。IC698CPE020 CPU 可以执行浮点数学和布尔函数，它支持使用梯形图、C、功能块图和结构化文本编程语言对用户的应用程序进行编程。

GE Fanuc IC698CPE020 CPU 支持高达 512 KB 的程序块，并具有一个参考数据表，其中包含 32 个 Kilobits 的 %I 和 %Q 离散数据以及多达 32 KB 的 %AI 和 %AQ 模拟数据。IC698CPE020 CPU 位于 Rx1i I/O 机架的插槽 7 中，在 3 伏直流电压下的最大背板电流消耗额定值为 2.5 安培。它有 3 个后排串口，分别是 RS-485 端口、RS-232 端口和 RS-232 管理器端口，以及一个支持高速 TCP/IP 通信的双嵌入式以太网端口。IC698CPE020 CPU 还支持 Modbus RTU Slave、SNP 和串行 I/O 通信协议。IC698CPE020 CPU 是使用 Proficy Machine Edition Logic Developer PLC 软件（4.0 或更高版本）配置的。

IC698CPE020 机架式中央处理模块 电气负载

【英文介绍】

The IC698CPE020 is a rack-mounted central processing module (CPU) for Emerson Automation's PACSystem RX7i Programmable Automation Controller (PAC) platform, formerly known as GE Intelligence Platform (GE IP). This CPU module is mainly used to process downloaded user programs to execute and drive connected electrical loads.

The IC698CPE020 is equipped with a Pentium III, 700 MHz microprocessor and integrates 10 MB of user memory and 10 MB of non-volatile or flash memory. It has I/O memory designed to handle discrete %I and %Q of up to 32Kbits, and analog %AI and %AQ of up to 32K words. Up to 512 blocks can be downloaded to the processor, with a maximum single block size of 128 KB.

The CPU has two (2) built-in Ethernet ports, supports 10/100 mbps transmission rate, is compatible with Ethernet Global Data (EGD), TCP/IP communication services, and uses SRTP, Modbus/TCP server, and Modbus/TCP client. It can also be used as a primary programming and configuration port. These Ethernet ports are embedded switch ports that require only one Ethernet I/P address. For CPU version 5.0 or later, these CPU ports can be used for time synchronization.

In addition to the Ethernet port, the module has three (3) isolated serial ports that support the RS232 and RS485 standards. Two (2) serial ports can be used for data communication as these ports are compatible with Modbus RTU Slave, SNP, serial I/O. The remaining serial ports are used as Ethernet web manager ports.

The IC698CPE020 is equipped with upgradable firmware with integrated data monitoring capabilities. It has a total of 16 Web servers and FTP connections.

The GE Fanuc IC698CPE020 CPU is the central processing unit for the RX7i family of performance controllers, designed to provide application flexibility across multiple hardware platforms. The fully programmed and configured IC698CPE020 CPU provides real-time control of applications and machine processes, as well as communication with multiple I/O devices via the Rx7i backplane. Built with the VME64 architecture, the IC698CPE020 CPU supports a variety of VME embedded technologies, has fast data throughput, and can communicate with a large number of human machine interface devices (Hmis) through an embedded Ethernet port. The IC698CPE020 CPU is equipped with a 700 MHZ Pentium III microprocessor and a 10 Megabyte RAM and a 10 Megabyte non-volatile flash memory for storing user data and programs. The IC698CPE020 CPU can perform floating-point math and Boolean functions, and it supports programming users' applications using ladder graphs, C, function block graphs, and structured text programming languages.

The GE Fanuc IC698CPE020 CPU supports blocks of up to 512 KB and has a reference data table with 32 Kilobits of %I and %Q discrete data and up to 32 KB of %AI and %AQ analog data. The IC698CPE020 CPU is located in slot 7 of the Rx1i I/O rack and has a maximum backplane current consumption rating of 2.5 amps at 3 volts DC. It has three rear serial ports, an RS-485 port, an RS-232 port, and an RS-232 manager port, as well as a dual embedded Ethernet port for high-speed TCP/IP communication. The IC698CPE020 CPU also supports Modbus RTU Slave, SNP, and serial I/O communication protocols. The IC698CPE020 CPU is configured using Proficy Machine Edition Logic Developer PLC software (4.0 or later).

IC698CPE020 机架式中央处理模块 电气负载
