IC670TBM001 辅助端子排 高密度分立式 I/O 模块

【产品详情】

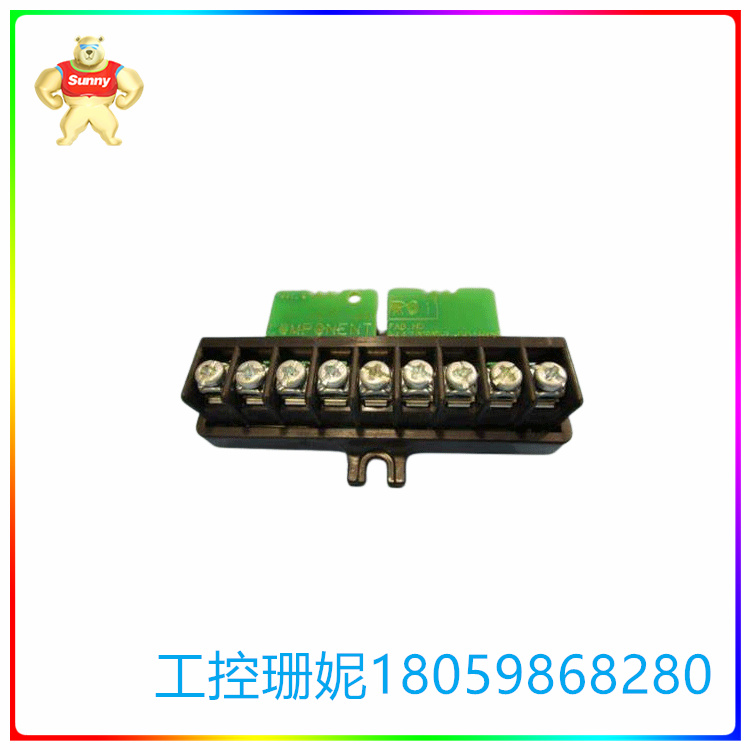

现场控制IC670TBM001辅助接线端子是GE Fanuc制造的辅助端子排。它为模拟和高密度分立式 I/O 模块提供额外的接线端子。它还提供额外的接地、回报或共同连接。它带有 9 个屏障型端子。每个端子可以接受横截面为 1.2 平方毫米的 14 或 2 AWG #1 规格电线。在现场布线期间，它还可用于为屏蔽层提供额外的端子。IC670TBM001辅助接线端子的连接点连接提供了足够的位置，可轻松端接控制面板上分立 I/O 设备的两条电线。

IC670TBM001辅助接线端子可以连接到正确安装的DIN导轨。在安装过程中，请确保先安装 I/O 接线端子，然后再将辅助接线端子插入 DIN 导轨。辅助接线端子安装耳的位置位于DIN导轨的右侧。在现场接线过程中，任何模块的机箱接地都可以连接到辅助接线端子的接地端子。对于 3 线或 4 线变送器，必须使用带有 IC670TBM001 辅助接线端子的附加端子排。模块的端子从内部电气连接在一起。如果需要额外的通用端子进行有效的现场布线，这种可选的端子排是现场控制系统的最佳解决方案。它可以作为附加设备连接到现场控制站中 I/O 接线端子的侧面。

IC670TBM001 辅助端子排 高密度分立式 I/O 模块

【英文介绍】

Field control IC670TBM001 auxiliary terminal block is an auxiliary terminal block manufactured by GE Fanuc. It provides additional terminals for analog and high-density discrete I/O modules. It also provides additional grounding, return, or common connection. It has 9 barrier terminals. Each terminal can accept 14 or 2 AWG #1 gauge wires with a cross-section of 1.2 square mm. It can also be used to provide additional terminals for the shielding layer during field wiring. The connection point connection of the IC670TBM001 auxiliary terminal provides enough space to easily end the two wires of the discrete I/O device on the control panel.

The IC670TBM001 auxiliary terminal can be connected to a correctly installed DIN rail. During the installation process, be sure to install the I/O terminal first and then insert the auxiliary terminal into the DIN rail. The auxiliary terminal mounting lug is located on the right side of the DIN rail. During field wiring, the chassis grounding of any module can be connected to the ground terminal of the auxiliary wiring terminal. For 3-wire or 4-wire transmitters, an additional terminal block with an IC670TBM001 auxiliary terminal must be used. The terminals of the module are electrically connected together from the inside. If additional general purpose terminals are required for effective field wiring, this optional terminal block is the best solution for field control systems. It can be attached as an additional device to the side of the I/O terminal in the field control station.
