GE IC670MDL730 直流正逻辑电子短路 保护输出模块

【产品详情】

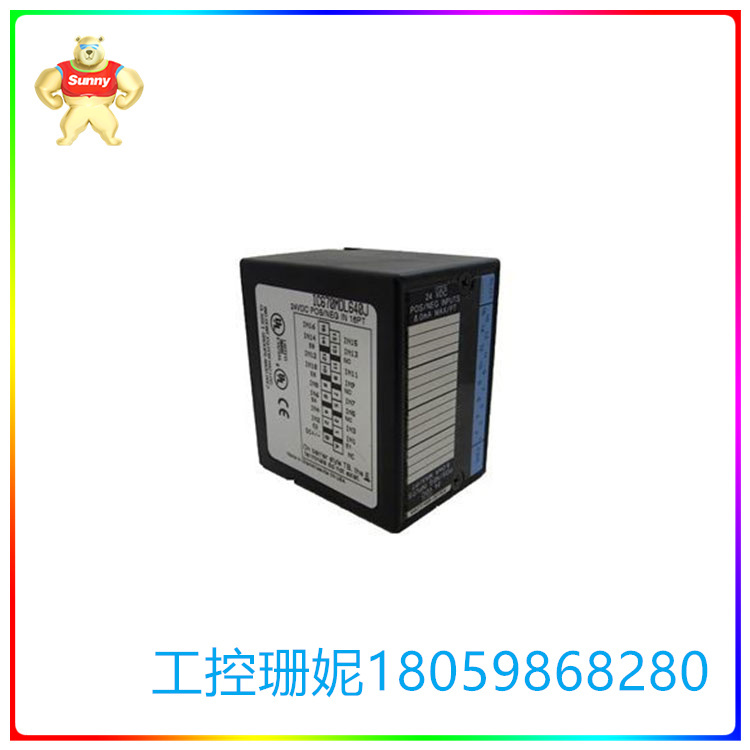

现场控制IC670MDL730直流输出模块是GE Fanuc制造的24伏直流正逻辑电子短路保护输出模块。模块上的每个输出都提供电子短路和过流保护。如果发生过流或短路情况，现场控制IC670MDL730直流输出模块还提供生成的故障报告。总线接口模块的电源可用于为模块供电。它具有 LED 指示灯，可提供输出开/关状态、电源状态和模块故障状态。它与 IC670GBI002 Genius 总线接口模块 2.10 或更高版本以及 Profibus 接口单元兼容。

IC670MDL730 离散输出模块在一组中具有 8 个离散输出。在运行过程中，总线接口模块将输出数据发送到输出模块。它以串行格式发送数据。为了验证数据，输出模块本身会自动将此数据以循环方式发送回总线接口模块。验证后，串行到并行转换器将数据转换为并行格式，以便在模块内使用。当电流超过指定值或持续时间时，该模块还提供内置过流保护。当负载短路时，短路保护功能跳闸。IC670MDL730 DC 输出模块具有 20 安培的短路响应电流，持续 100 微秒。它不提供组间隔离，但在电源线上提供 MOV，以保护模块免受瞬态电压浪涌的影响。它还配备了用于噪声保护的电容器。

GE IC670MDL730 直流正逻辑电子短路 保护输出模块

【英文介绍】

Field control IC670MDL730 DC output module is a 24 volt DC positive logic electronic short circuit protection output module manufactured by GE Fanuc. Each output on the module provides electronic short circuit and overcurrent protection. The field control IC670MDL730 DC output module also provides generated fault reports if overcurrent or short circuit conditions occur. The power supply of the bus interface module can be used to power the module. It has LED indicators that provide output on/off status, power status and module failure status. It is compatible with the IC670GBI002 Genius Bus interface module version 2.10 or later and the Profibus interface unit.

The IC670MDL730 discrete output module has 8 discrete outputs in a set. During operation, the bus interface module sends output data to the output module. It sends data in serial format. To verify the data, the output module itself automatically sends this data back to the bus interface module in a loop. After validation, the serial-to-parallel converter converts the data into a parallel format for use within the module. The module also provides built-in overcurrent protection when the current exceeds a specified value or duration. When the load is short-circuited, the short-circuit protection function trips. The IC670MDL730 DC output module has a 20 amp short-circuit response current lasting 100 microseconds. It does not provide inter-group isolation, but provides MOV on the power cord to protect the module from transient voltage surges. It is also equipped with capacitors for noise protection.
