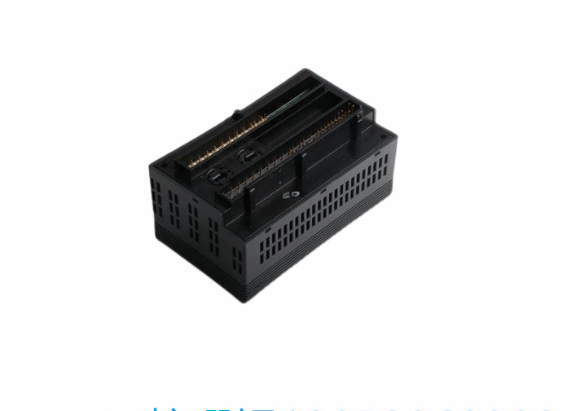

IC200MDD848 混合 I/O 模块 外部电源

【产品详情】

IC200MDD848模块是由GE Fanuc Automation制造的分立式I/O模块，是Versamax系列的一部分。该模块有 16 个 I/O 点，分为 2 个不同的组，每组由 8 个点组成。GE Fanuc IC200MDD848模块具有正逻辑或源极型输入，并支持每个离散输出点的通道间隔离。此外，IC200MDD848模块还为每个输出点配备了各种保护功能，包括金属氧化物压敏电阻 （MOV） 和缓冲器。虽然提供了诊断功能，但每个 I/O 点都映射到状态 LED。

IC200MDD848分立式 I/O 模块由安装在 PLC 机架上的背板供电，但任何为负载供电的开关都需要 120 伏交流电的外部电源。该模块的每个输入和输出点的最小负载电流为 10 毫安，最大负载电流为 5 安培。它还具有 5 安培的最大负载电流，用于单个 20 毫秒周期。IC200MDD848分立式 I/O 模块在 125 V 峰值背板电压下消耗 5 毫安。安装此模块的接线和配置感性负载的输出时，建议使用外部抑制电路。IC200MDD848模块支持热降额以及各种 I/O 组合。可以并发运行的最大活动点数取决于各种因素。其中一些因素包括周围温度、DIN 导轨的物理位置、外部电压以及设备本身的位置。

VersaMax IC200MDD848 由 General Electric Automation 制造，是一款具有 16 个点的分立式输入/输出模块。 输入点和输出点分为两组，每组包含八个点。输入可以是源型或正逻辑。该产品支持每个离散输出点的通道间隔离。此外，该产品对每个输出点具有以下保护机制：缓冲器和金属氧化物压敏电阻 （MOV）。不提供诊断;但是，每个输入和输出点都映射到状态 LED。

虽然此设备由机架安装背板供电，但任何为负载供电的开关都需要 120 伏交流电的外部电源。每个输入和输出点的负载电流额定值最小为 10 毫安，最大为 5.20 安培。在最大浪涌时，单个 5 毫秒周期的负载电流为 200 安培。该IC848MDD125从5v背板上消耗的最大电流为<>毫安。安装此设备的接线并配置感性负载的输出时，建议使用外部抑制电路。

该IC200MDD848支持热降额，可以进行各种组合。同时有效点的总数取决于不同的因素，例如周围温度、外部电压以及DIN导轨和设备本身的物理位置。在低温下，所有输入和输出点组合都是可能的。

不包括载体底座和配套连接器，该产品的宽度为 110 毫米（4.3 英寸）、高 66.8 毫米（2.63 英寸）、深 50 毫米（1.956 英寸）。

IC200MDD848 混合 I/O 模块 外部电源

【英文介绍】

The IC200MDD848 module is a discrete I/O module manufactured by GE Fanuc Automation as part of the Versamax family. The module has 16 I/O points divided into 2 different groups, each consisting of 8 points. The GE Fanuc IC200MDD848 module has positive logic or source-type inputs and supports inter-channel isolation at each discrete output point. In addition, the IC200MDD848 module is equipped with various protection features for each output point, including metal oxide varistor (MOV) and buffer. Although diagnostic functions are provided, each I/O point is mapped to a status LED.

The IC200MDD848 split I/O module is powered by a backplane mounted on the PLC rack, but any switch powering the load requires an external power supply of 120 volts AC. The module has a minimum load current of 10 mA and a maximum load current of 5 amps at each input and output point. It also has a maximum load current of 5 amps for a single 20 ms cycle. The IC200MDD848 split I/O module consumes 5 mA at 125 V peak backplane voltage. When installing the wiring for this module and configuring the output of the inductive load, an external suppression circuit is recommended. The IC200MDD848 module supports hot derating and various I/O combinations. The maximum number of activities that can run concurrently depends on a variety of factors. Some of these factors include the ambient temperature, the physical location of the DIN rail, the external voltage, and the location of the device itself.

The VersaMax IC200MDD848, manufactured by General Electric Automation, is a 16-point discrete input/output module. The input and output points are divided into two groups, each containing eight points. The input can be source type or positive logic. The product supports inter-channel isolation for each discrete output point. In addition, the product has the following protection mechanisms for each output point: buffer and metal oxide varistor (MOV). No diagnosis is provided; However, each input and output point is mapped to the status LED.

Although this device is powered by a rack-mount backplane, any switch powering the load requires an external power supply of 120 volts AC. The load current rating at each input and output point ranges from a minimum of 10 mA to a maximum of 5.20 amps. At maximum surge, the load current for a single 5-millisecond period is 200 amps. The maximum current consumed by the IC848MDD125 from the 5v backplane is <> MA. When installing the wiring for this device and configuring the output of the inductive load, an external suppression circuit is recommended.

The IC200MDD848 supports hot derating and can be used in various combinations. The total number of simultaneous effective points depends on different factors, such as ambient temperature, external voltage, and the physical location of the DIN rail and the device itself. At low temperatures, all combinations of input and output points are possible.

Excluding the carrier base and matching connectors, the product is 110 mm (4.3 in) wide, 66.8 mm (2.63 in) high, and 50 mm (1.956 in) deep.
