IC200MDD846 输出点都是隔离的 高效运行

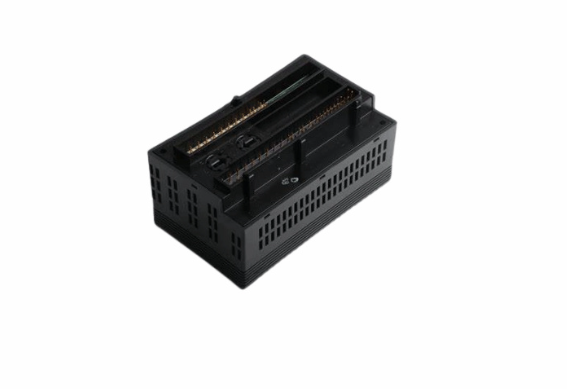

【产品详情】

GE Fanuc IC200MDD846 混合 I/O 模块是 GE Fanuc 的产品，作为 Versamax 系列的一部分制造。该模块旨在通过将离散的输入和输出点集成到单个模块中来提高机器的灵活性。为了使该模块高效运行，需要IC200CHSxxx载波底座。IC200MDD846混合模块具有一组 8 个输入点，这些输入点从连接到它的输入设备中汲取电流并将其发送到公共线路。它还具有一组具有 8 个输出点，能够处理 2 安培的最大电流负载。该混合模块的输入点是正逻辑型或源极型输入，而输出点是 A 型继电器，它们带有银触点、固定线圈和移动框架。

IC200MDD846模块的每个输出点都是隔离的。该模块还具有每个输入和输出点对应的 LED 指示灯。LED 指示设备的开/关状态，而“OK”LED 显示背板电源的存在。IC200MDD846 Versamax 混合模块从机架安装背板获取所有必需的功率。它的最大额定电流消耗为 300 毫安，标称输入电压为 120 伏交流电。它还具有 5 伏直流电、24 伏直流电或 125 伏直流电和 120 伏交流电或 240 伏交流电的标称输出电压。该模块的电压降为 0.3 伏。需要网络接口单元或 CPU 来执行设备的处理。

该IC200MDD846是由GE自动化控制公司制造的VersaMax混合模块。 该产品通过将离散输入点和离散输出点组合到一个模块中，提高了灵活性。注意：此模块需要 IC200CHSxxx 载体底座才能运行。

该模块有一组八个输入点，从连接的输入设备中汲取电流并将其发送到公共线路，还有一组八个输出点，可以处理高达 2 安培的电流负载。该模块的所有输入点都可以是源极型或正逻辑型。该器件的所有输出点都是带有固定线圈、移动电枢和银触点的 A 型继电器。每个输出点也是隔离的。每个输入和输出点对应一个 LED 灯，该灯显示该点的开和关状态，“OK”LED 指示背板电源的存在。

中央处理器 （CPU） 或网络接口单元 （NIU） 是执行此设备智能处理所必需的。该模块能够发送和接收 8 位离散输入和输出数据。本产品不支持热降额。

IC200MDD846所需的所有电源均从安装在机架上的背板获取。该器件从电源消耗的最大电流为 300 毫安。额定输入电压为 120 伏交流电。额定输出电压为 5、24 和 125 伏直流电以及 120 和 240 伏交流电。输出电压降为 0.3 伏。

IC200MDD846 输出点都是隔离的 高效运行

【英文介绍】

The GE Fanuc IC200MDD846 Hybrid I/O module is a product of GE Fanuc, manufactured as part of the Versamax family. The module is designed to increase the flexibility of the machine by integrating discrete input and output points into a single module. In order for the module to operate efficiently, the IC200CHSxxx carrier base is required. The IC200MDD846 hybrid module has a set of eight input points that draw current from the input device connected to it and send it to the public line. It also has a set with 8 output points capable of handling a maximum current load of 2 amps. The input point of the hybrid module is A positive logic type or source type input, while the output point is a Type A relay with silver contacts, a fixed coil and a moving frame.

Each output point of the IC200MDD846 module is isolated. The module also has LED indicators corresponding to each input and output point. The LED indicates the on/off status of the device, while the "OK" LED indicates the presence of the backplane power supply. The IC200MDD846 Versamax hybrid module obtains all the necessary power from the rack-mount backplane. It has a maximum rated current consumption of 300 mA and a nominal input voltage of 120 volts AC. It also has a nominal output voltage of 5 volts DC, 24 volts DC or 125 volts DC and 120 volts AC or 240 volts AC. The module has a voltage drop of 0.3 volts. A network interface unit or CPU is required to perform the processing of the device.

The IC200MDD846 is a VersaMax hybrid module manufactured by GE Automation and Control. The product increases flexibility by combining discrete input and output points into a single module. Note: This module requires an IC200CHSxxx carrier base to run.

The module has a set of eight input points that draw current from connected input devices and send it to the public line, and a set of eight output points that can handle current loads of up to 2 amps. All input points of the module can be source or positive logic. All output points of the device are Type A relays with fixed coils, moving armatures and silver contacts. Each output point is also isolated. Each input and output point corresponds to an LED light that shows the on and off status of that point, and an "OK" LED indicates the presence of backplane power.

The central processing unit (CPU) or network interface Unit (NIU) is required to perform intelligent processing on this device. The module is capable of sending and receiving 8-bit discrete input and output data. This product does not support hot derating.

All power required for the IC200MDD846 is obtained from the backplane mounted on the rack. The device consumes a maximum current of 300 mA from the power supply. The rated input voltage is 120 volts AC. Rated output voltages are 5, 24 and 125 volts DC and 120 and 240 volts AC. The output voltage drops to 0.3 volts.

IC200MDD846 输出点都是隔离的 高效运行
